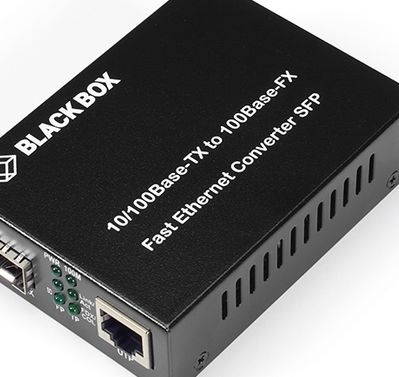

BlackBox LHC210A MEDIA CONVERTER 10/100 ETHERNET SFP

Product Description in English:

The Pure Networking Series media converter offers fast and reliable conversion from 10/100BASE-TX copper to 100BASE-FX fiber connections. This device allows you to extend your LAN beyond the 100-meter copper cabling limit and provides enhanced security by bringing fiber directly to the desktop, protecting sensitive networks from eavesdropping and RFI interference. Fiber connections offer maximum security for sensitive data, making them ideal for high-security environments.

With support for data forwarding rates of 10 Mbps and 100 Mbps, the converter enables quick installation via plug-and-play technology. Integrated Link Fault Pass-Through (LFP) notifies administrators immediately of any link issues, allowing for proactive network monitoring. Front-facing diagnostic LEDs provide operational status at a glance, and the converter supports both half- and full-duplex operation. Fully compatible with IEEE802.3 and IEEE802.3u standards, as well as flow control, this converter is suited for a variety of network applications.

Range Solutions:

• LHC211A: Converts 10/100BASE-TX to 100BASE-FX multimode SC fiber, covering up to 2 km.
• LHC212A: Converts 10/100BASE-TX to 100BASE-FX single-mode SC fiber (1310 nm), reaching up to 20 km.
• LHC210A: Flexible converter with SFP slot, compatible with multimode or single-mode SFP transceivers, for a maximum fiber distance of up to 120 km using the appropriate SFP module (e.g., LHC210A).

Technical Specifications:

• Model: Pure Networking Series Media Converter
• Ports:
- LHC210A: (1) RJ-45, (1) SFP slot
- LHC211A/LHC212A: (1) RJ-45, (1) duplex SC fiber port

• Data Rates: 10 Mbps (14,880 pps) and 100 Mbps (148,800 pps)
• Supported Media:
- 10BASE-T: CAT3, 4, 5 UTP/STP (max. 200 m)
- 100BASE-TX: CAT5 UTP/STP (max. 100 m)
- Multimode Fiber: 50/125 µm, 62.5/125 µm
- Single-mode Fiber: 8.3/125 µm, 9/125 µm, 10/125 µm

• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX
• Controls: 2 DIP switches with 4 positions
• Power Supply: 100-240V AC input, 5VDC 1A (5W) output with adapters for US, EU, UK, and AUS
• Dimensions: 2.54 H x 9.4 W x 6.86 D cm
• Weight: 0.32 kg
• Operating Temperature: 0 to 50 °C
• Certifications: CE, RoHS, FCC Class B
• Warranty: 6-year Double Diamond™

Included Items:

• Media converter (model as selected)
• Power adapter with clips for US, EU, UK, and AUS
• User manual
• Mounting accessories
