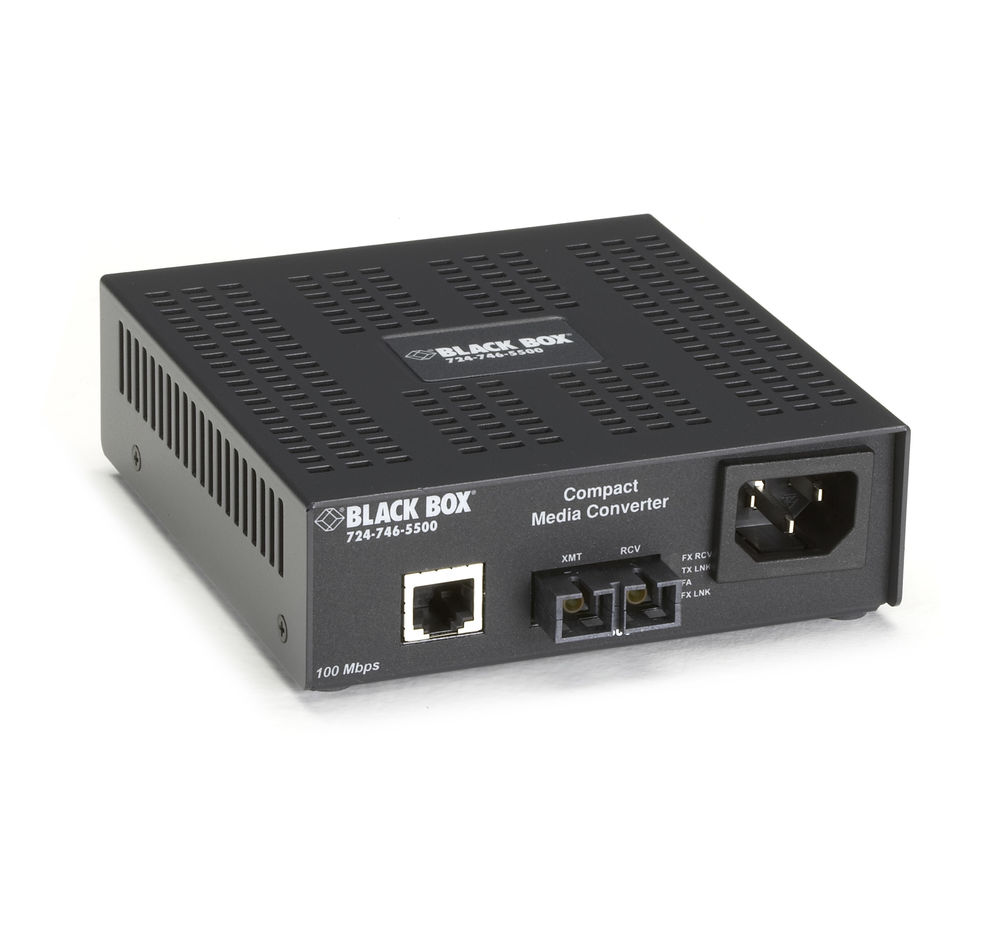

BlackBox LHC002A-R4 Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supply
|
351,36 EUR |
|||||||||||
|
( 418,12 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 983924 | ||||||||||
| Mfg Part No: | LHC002A-R4 | ||||||||||
| UPC/EAN: | 00822088108320 | ||||||||||
| Weight: | 0.96 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox LHC002A-R4:
Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supplyProduct Description in English:
Compact Media Converters provide essential features for copper-to-fiber integration in a space-saving, 1U chassis. With an integral universal power supply that autosenses 95–240 VAC, these converters eliminate the need for bulky external adapters and support seamless international use. The 100 Mbps models support copper-to-fiber connections and offer multimode distances up to 2 kilometers (1300 nm) and up to 40 kilometers for Single-Mode Plus models.
Equipped with Auto-MDI/MDIX on each twisted-pair port, these compact media converters have externally accessible port settings and diagnostic LEDs for monitoring. LinkLoss and FiberAlert functions automatically notify users of fiber-side connection issues and can be enabled or disabled via a DIP switch. Operable in either half- or full-duplex mode, the converters fully comply with IEEE 802.3 standards, including 10BASE-T, 100BASE-FL, 10BASE2, 100BASE-TX, and 100BASE-FX.
Technical Specifications:
- Model: Compact Media Converters
- Chassis Height: 1U
- Fiber Options: 100 Mbps fiber versions (multimode or Single-Mode Plus)
- Range: - Multimode 1300 nm: up to 2 km
- External Port Settings: Yes
- Twisted-Pair Ports: Auto MDI/MDIX, straight/cross switch
- BNC Ports: Termination switch
- LinkLoss/FiberAlert: Can be enabled via DIP switch
- Duplex Operation: Half- or full-duplex
- Protocol Support: IEEE 802.3 (10BASE-T, 100BASE-FL, 10BASE2, 100BASE-TX, 100BASE-FX)
- Maximum Distance (Full Duplex): - Models LHC008A-R3 - LHC009A-R3: 100BASE-TX link 100 m, fiber link 300 m
- LED Indicators: Fiber Receive, Twisted-Pair Link, FiberAlert, Fiber Link
- Power Supply: Internal, 95–240 VAC, 50–60 Hz, 0.1/0.5 A, autosensing
- Dimensions: 4.2 H x 12.1 W x 12.4 D cm
- Weight: 0.9 kg
- Warranty: 6-year Double Diamond™
- Single-Mode Plus models: up to 40 km
- Models LHC001A-R4 - LHC002A-R4: 100BASE-TX link 100 m, fiber link 2 km
- Models LHC005A-R4 - LHC006A-R4: 100BASE-TX link 100 m, fiber link 40 km
Included Items:
- Compact Media Converter
- User manual
- Power cable
- Mounting accessories
Questions & answers
What is the delivery time of BlackBox LHC002A-R4 Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supply?
The article BlackBox LHC002A-R4 Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supply is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 122 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox LHC002A-R4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox LHC002A-R4 Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supply always at the best possible price. We can give you a discount of 2% on BlackBox LHC002A-R4 Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supply if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of BlackBox LHC002A-R4 Compact Media Converters 100B-100B to Tx-Fx - copper RJ45 to Fiber SC - multimode fiber up to 2km - integrated wide range power supply we can offer you a price of 340,82 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
