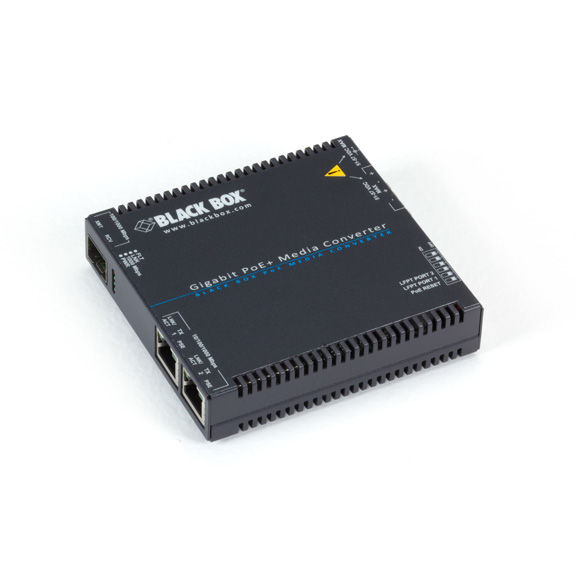

BlackBox LGC5210A
PSE compact media converter, PoE+ 10/100/1000 to SFP

Gigabit PoE+/PSE Media Converter

Connect with fiber and provide power to remote PoE+ devices.

Features two 10-/100-/1000-Mbps copper ports and one fiber port.
Both UTP ports are autosensing with Auto MDI/MDI-X; both UTP ports support 802.3at PoE+.
Acts as power sourcing equipment (PSE) on the copper side to power PoE+ devices.
Features an extended temperature range when used with DC terminal-block power.
Rugged metal chassis.
Warranty: 6-Year Double Diamond™ (Standard)

This robust media converter is perfect for extending your network over fiber while also powering a PoE+ device. Use it to link remote PoE+ devices such as IP security cameras, wireless access points, or VoIP phones.

Fiber Options:

All models of the Gigabit PoE+ PSE Media Converters feature two autosensing 10/100/1000 UTP ports. Fiber-side options include: LGC5211A with a multimode fiber port to extend a network connection up to 550 meters; LGC5212A with a single-mode fiber port for distances up to 15 kilometers; LGC5210A with an SFP port for customizable interfaces, including multimode or single-mode fiber or Gigabit copper, using a standard SFP.

Power over Ethernet:

Both UTP ports support 802.3at Power over Ethernet Plus, allowing the converter to power a PoE+ PD device.

Power Options:

The Gigabit PoE Media Converter can be powered in three ways: from an AC power supply (LGC5210-PS included), via the DC power jack, or the DC terminal block. Using DC power on the terminal block, the converter supports an extended operating temperature range from 0 to +70 °C.

The converter requires only one power source to power both the converter and a PoE+ device; place the PoE+ device up to 100 meters (328 feet) from the converter, allowing flexible positioning of wireless APs and security cameras. A pair of input and output terminals enables DC power cascading in a DIN rail installation (optional DIN Rail Clip (LXC-DR) sold separately).

Connectors:

• All: Copper side: (2) RJ-45
• LGC5210A: Fiber side: (1) SFP
• LGC5211A/LGC5212A: Fiber side: (1) pair of SC

Ethernet Connection:

• 10/100/1000BaseT
• Auto Negotiation
• AutoCross
• Flow Control
• MTU 10240
• Full Line-Rate Forwarding

Power:

• AC Desktop Adapter (LGC5210-PS included): Input: 100 to 240 ±10% VAC, 50/60Hz, 2A, Output: 52 VDC, 2.31A
• DC input: 51 to 57 VDC on DC terminal block, 51 to 57 VDC on DC jack
• Power consumption: 65W max (PSE + PD), 5W max (PSE)

Dimensions:

• 2H x 9.2W x 9.7D cm (0.8H x 9,1 cm ( 3,6 inch )W x 3.8D)

Environmental:

• Operating temperature: 0 to +70 °C (DC terminal block); 0 to +50 °C (AC adapter)
• Operating humidity: 5 to 95% noncondensing

Standards Compliance:

• IEEE 802.3af Power Over Ethernet
• IEEE 802.3at PoE+ Standards
• IEEE 802.3 Ethernet Standards
• IEEE 802.3u Auto-Negotiation
• RFC-2474
• RFC-2475 DiffServ QoS
