BlackBox LES1516A-9FT CONSOLE SERVER ADAPTER RJ45 to DB9F

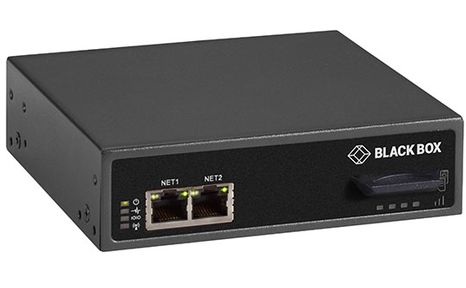

LES1600 Series Console Server – Cisco Pinout 4/8 Ports

Economical console server for cost-effective, redundant out-of-band management

Secure, affordable remote network management for four or eight devices.
Dual 10/100/1000 Ethernet uplinks with seamless failover for built-in redundancy.
Includes four USB 2.0 ports for transferring data from managed devices.
Integrated digital I/O and high-voltage I/O.
High-performance 800 MHz ARM processor with 4 GB flash storage for device images.
Maintain network connectivity during outages with IP passthrough.
Ideal for businesses with remote locations and limited IT staff as well as shared data centers.
Warranty: 4 years Double Diamond™ (Standard)

Console servers enable remote reconfiguration, restart, and imaging of serial console-connected devices like switches, routers, servers, PBXs, video conferencing systems, firewalls, PDUs, and environmental monitoring devices. They also ensure rapid recovery from power outages. The LES1600 provides reliable, simple management of network, server, and power infrastructure in data centers and remote sites.

Remote Access and Monitoring
Use the console server for easy, cost-effective out-of-band access to routers, switches, PDUs, firewalls, and other serial consoles. With optional 4G cellular backup and dual Ethernet ports, the LES1600 offers 24/7 operational reliability, control over the network, and environment. Configure and troubleshoot networks independently from the data network, enhancing reliability.

The console server features an intuitive status dashboard, proactive alerting, and secure, straightforward device control. Maximize uptime while reducing the need for on-site visits and field service.

USB Connectivity
The server supports USB 2.0 connections to Cisco USB console ports, allowing attachment of peripherals like storage and USB consoles, in addition to standard RS-232 serial console connections.

Dual Ports for Integrated Redundancy
Dual Gigabit Ethernet ports enable connections to primary and secondary networks. In case of a communication failure, the server automatically switches to the secondary port. Remote restart of computers is also possible.

Who can benefit from the LES1600 Console Server?

Businesses with remote offices
Organizations with limited IT staff and budgets
Co-location tenants in data centers
Cloud and hosting providers
Research and lab environments
Government agencies, educational institutions, and healthcare organizations

Console Management — Built-in web terminal, direct SSH access, optional keystroke logging, cable disconnect alert, inline power control, concurrent sessions
CPU — 800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
Memory — 256 MB DDR3 SDRAM, 32 MB embedded NOR flash, internal storage: 4 GB NAND flash
Security and Authentication —
SSH;
FIPS-140-2 compliant OpenSSL module;
Strong ciphers—AES encryption;
Cisco-compatible IPsec;
AAA—TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos with local fallback;
Two-factor authentication via remote AAA;
Configurable stateful firewall;
OpenVPN
Remote Access — Dual Ethernet, aggregation, automatic network failover, browser-based UI, IPv6 support, (LES1604A-R only:) LTE modem
Serial Ports — Cisco straight-through, 50 to 230,400 bps

Ports —
LES1604A, LES1604A-R:
(4) RJ-45 RS-232 console ports, Cisco pinout;
(2) 10/100/1000-Mbps Ethernet RJ-45;
(4) USB 2.0 ports
LES1608A:
(8) RJ-45 RS-232 console ports, Cisco pinout;
(2) 10/100/1000-Mbps Ethernet RJ-45;
(4) USB 2.0 ports

Power Supply — 110–240 VAC, external 12 VDC adapter
Power Consumption — Under 11.5 W
Dimensions — 13 H x 12 W x 3.5 D cm
Weight — 0.58 kg
Operating Temperature — -25 to 60 °C
Humidity — 5 to 90%
MTBF — 150,000 hours

Certifications —
Emissions:
FCC Part 15 Subpart B:2015;
EN55022:2010;
CISPR 22:2008;
ICES-003 Issue 5 (2014);
AS/NZS CISPR 22: 2009 + A1:2010;
EN 61000-3-2:2006/A2:2009;
EN 61000-3-3:2008
Immunity:
EN 55024:2010;
CISPR 24:2010;
EN 61000-4-2:2009;
EN 61000-4-3:2006 + A2:2010;
EN 61000-4-4:2004 + A1:2010;
EN 61000-4-5:2006;
EN 61000-4-6:2009;
EN 61000-4-8:2010;
EN 61000-4-11:2004
Other regulatory approvals:
CE, UL 1950, TUV, C-Tick, RoHS-compliant, NERC CIP standards support, FIPS 140-2 validated module Certificate #2473, CCC

LES1604A-R additional:

Embedded 4G modem
LTE support with 100 Mbps download, 50 Mbps upload
SMS alerts
Stateful firewall

TAA compliant — YES

Included:

(1) LES1604A, LES1604A-R-R2, or LES1608A Console Server
(1) DB9F-to-RJ-45 crossover adapter
(1) 12 VDC power supply with US, UK, EU, and AU adapters
(1) Rackmount Kit: (2) Brackets, (4) 10/32 screws, (6) 6/32 screws, (4) Cage nuts
(4) Adhesive rubber feet
(1) Digital I/O converter (terminal block)
(1) SIM card holder
(2) Antennas
(1) Quick start guide
