BlackBox LBH3050A 5P FAST ETH IND SW
|
134,40 EUR |
|
|
( 159,94 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1709738 |
|---|---|
| Mfg Part No: | LBH3050A |
| UPC/EAN: | 00822088130772 |
| Weight: | 0.56 kg |
Product information for BlackBox LBH3050A:

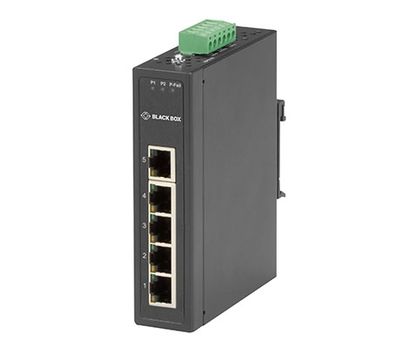

This compact unmanaged 10/100-Mbps industrial Ethernet switch is specifically designed for challenging industrial environments. It offers either 5 or 8 RJ-45 ports with auto MDI/MDI-X detection and withstands extreme temperatures ranging from -40 to +75 °C. Its rugged IP30 metal housing reliably protects against dust and debris, making it ideal for security and surveillance applications, building automation, oil and gas facilities, military applications, and factories.
The switch supports redundant 12 to 48 VDC inputs and includes a P-fail relay that triggers an alarm in case of power loss. Integrated broadcast storm protection ensures a stable network connection. Flexible mounting options allow for installation on a DIN rail or directly on the wall, and a panel-mount kit is included. For added reliability, a 1-year Double Diamond™ warranty is offered.
Technical Data:
Ports:
- Number of Ports: 5 or 8 x 10/100 Mbps RJ-45 with auto MDI/MDI-X
- Alarm Contact: 1 x relay output
- LED Indicators: Per Device: P1, P2, P-Fail; Per Port: 10/100BASE-T(X), Link/Activity, Duplex/Collision
- 6-pin removable terminal block for power and relay
Performance:
- Maximum Distance: Up to 100 m
- Power Consumption: 4.71 W
- Input Power: 12 to 48 VDC, redundant
Environment:
- Operating Temperature: -40 to +75 °C
- Storage Temperature: -40 to +85 °C
- Humidity (Operating and Storage): 10 to 95% non-condensing
Mechanical Properties:
- Housing: IP30 metal
- Dimensions: - LBH3050A: 12 x 3 x 9.5 cm (H x W x D)
- Weight: 0.45 kg
- LBH3080A: 14 x 3 x 9.5 cm (H x W x D)
Protection Features:
- Redundant power supply with reverse polarity protection and overload protection
- Broadcast storm protection
- Relay (fault output) for alarm notifications
Certifications:
- EMC: FCC Part 15, EN 55022 Class A
- EMS: EN 61000-4-2 to EN 61000-4-8
- Shock, Drop, and Vibration Protection: IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
- Safety: UL/cUL 60950 Class I, Division 2 (Groups A, B, C, D)
- Network Standards: IEEE 802.3, 802.3u, 802.3x
Warranty:
- Double Diamond™ Warranty: 1 year
Questions & answers
What is the delivery time of BlackBox LBH3050A 5P FAST ETH IND SW?
The article BlackBox LBH3050A 5P FAST ETH IND SW is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 202 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox LBH3050A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox LBH3050A 5P FAST ETH IND SW always at the best possible price. We can give you a discount of 2% on BlackBox LBH3050A 5P FAST ETH IND SW if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
