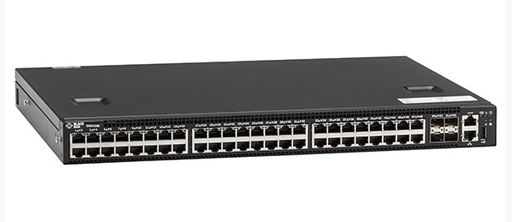

IP-based Emerald® KVM Matrix Switch, 1 GbE, 48-Port:

Create a fully customizable IP-based KVM switching matrix and extension system that connects your Emerald transmitters and receivers via IP. This system provides powerful non-blocking switching architecture with 260 Gbps full-duplex bandwidth and supports jumbo frames for virtualized environments and IP storage/server communication.

Features:

• Works with any type of Emerald transmitter and receiver.
• Non-blocking switching architecture with 260 Gbps full-duplex.
• Includes 48x 10/100/1000 Mbps twisted-pair ports.
• Includes 4x SFP+ 10 GbE uplink ports for maximum flexibility and investment protection.
• Redundant, hot-swappable power supplies and fans.
• Supports jumbo frames for high-end performance in virtualized environments.

The Emerald® system delivers pixel-perfect video with 2K/HD to 4K/60 resolution and 10-bit color depth over an IP network. It is scalable and supports an unlimited number of workstations and servers. The system enables seamless access to both physical and virtual servers, with users enjoying fast access to target servers with premium video quality and peripheral support like stereo audio and up to four USB 2.0 devices with True Emulation.

Scalability:

An Emerald KVM network can start small and expand infinitely by simply adding endpoints, without the need for additional chassis or cards.

Video Quality:

Emerald supports 4K DisplayPort video at 60 Hz with mathematically lossless compression over standard IP networks. It also supports HD content with Full HD DVI up to 1920x1200 on Emerald SE/ZeroU options.

Virtualization:

Emerald simplifies access to both physical and virtual servers, with support for VMware, Microsoft, Citrix, and other platforms via RDP, RemoteFX, PCoIP, and more.

Reliability:

All 4K Emerald transmitters and receivers offer copper or fiber connectivity with one or two SFP+ slots. The system ensures network redundancy with failover switching, guaranteeing 24/7 operation.

Network Requirements:

HD video requires a standard Gigabit Ethernet network. For 4K video, a 10-Gigabit Ethernet network with a 100-Gigabit aggregation switch is needed.

Management:

The system can be managed locally via the receiver’s OSD or centrally through the Boxilla® KVM Manager. Boxilla provides time-saving configuration options, user management, and security features like automatic alarms for unauthorized activities.

Technical Data:

• Ports: 48x 1000BASE-T (RJ45), 4x 10GE SFP+ uplink ports
• Network Management: SNMPv1/2, SSHv2, FTP, Syslog, Port-Mirroring, RADIUS, 802.1X
• Performance:
- MAC addresses: Up to 80k
- Switch fabric capacity: 260 Gbps (full-duplex)
- Latency: ~1.8 μsec for SFP+
- VLANs: 4K

• Dimensions: 1U, 44 mm (H) x 434 mm (W) x 320 mm (D)
• Weight: 5.84 kg
• Power Supply: 90–264 VAC, 50/60 Hz, redundant power supplies
• Operating Temperature: 0 to 45°C
• Certifications: CE, RoHS, UL/CSA 60950-1, FCC Part 15, Class A
