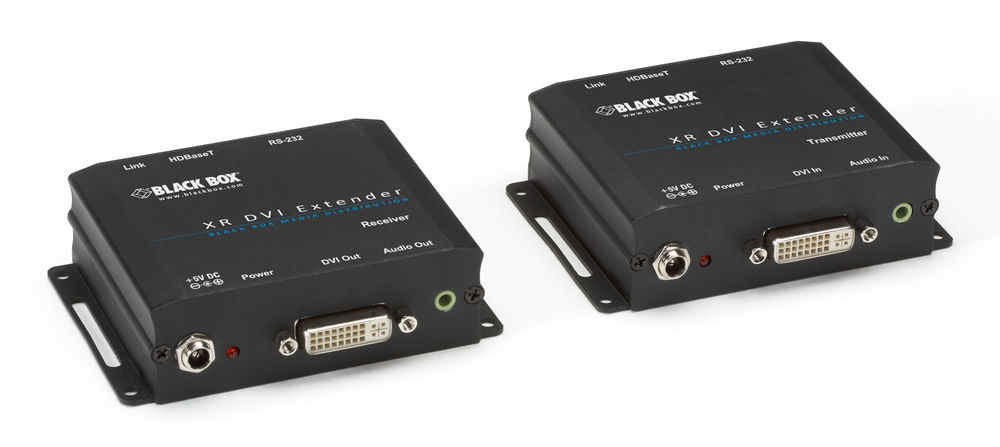

BlackBox AVX-DVI-TP-100M
XR DVI Extender with Audio, RS232 and HDCP
|
544,32 EUR |
|||||||||||
|
( 647,74 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 890250 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | AVX-DVI-TP-100M | ||||||||||
| UPC/EAN: | 00822088057307 | ||||||||||
| Weight: | 1.18 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox AVX-DVI-TP-100M:
Our eXtended Range DVI solution also transmits stereo audio, serial, and HDCP data.
Use a single CAT5e/6/7 run to extend DVI-D video and audio.
Also extends RS-232 and HDCP signals to the remote screen.
Extends much farther than standard DVI cabling—up to 100m*.
Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
Enables flexible screen location without compromising video quality.
HDCP compliant and Blu-ray ready, supports EDID.
Transmits serial RS-232 TXD and RXD control signals.
Warranty: 3 years Double Diamond™ (Standard)
This extender allows you to place a digital DVI screen up to 100 m* away from the video source and control it via RS-232 TXD and RXD control signals.
The transmitter-receiver combo extends HDTV resolutions and VESA standards over a single CAT5e/6/7 cable, making it easy to send 1080p-quality video, 2-channel stereo audio, and RS-232 control signals to distant screens or projectors.
Audio is integrated into the CATx cable extension, so no separate audio cable is needed between source and screen.
With bidirectional RS-232 control support, you can use serial commands from a PC to manage RS-232 equipment or turn a remote screen on/off, saving energy in your video setup.
The XR DVI-D Extender also supports EDID and HDCP bypass, enabling content transmission from protected-content sources.
*Note: Distance depends on cable quality and type of DVI source and display.
Audio Support: Stereo 2-channel analog
Maximum Distance: 100 m (330 ft.)
Video Bandwidth: 340 MHz (10.2 Gbps)
Video Resolution: 480p/720p/1080p at 60 Hz; 1920 x 1200 and 1600 x 1200 at 60 Hz
Connectors:
Transmitter:- (1) DVI-D F input
- (1) DB9 F (RS-232)
- (1) 3.5-mm stereo audio input jack
- (1) RJ-45 (CATx interconnect)
Receiver:
- (1) DVI-D F output
- (1) DB9 M (RS-232)
- (1) 3.5-mm stereo audio output jack
- (1) RJ-45 (CATx interconnect)
Indicators:
- (2) LEDs on both transmitter and receiver: - (1) Power
- Both units: - Input: 100–240 VAC, 50–60 Hz, 0.8 A
- Each unit: 3.2H x 10.5W x 7.6D cm (1.3H x 10,4 cm ( 4,1 inch )W x 3D)
- (1) Link status
Power:
- Output: 5 VDC, 2 A
- Consumption: 20 W
Dimensions:
Weight:
- Each unit: 0.4 kg (0.9 lb)
Note: Distance depends on cable quality and type of DVI source and display.
Questions & answers
What is the delivery time of BlackBox AVX-DVI-TP-100M XR DVI Extender with Audio, RS232 and HDCP?
The article BlackBox AVX-DVI-TP-100M XR DVI Extender with Audio, RS232 and HDCP is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 149 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox AVX-DVI-TP-100M to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox AVX-DVI-TP-100M XR DVI Extender with Audio, RS232 and HDCP always at the best possible price. We can give you a discount of 2% on BlackBox AVX-DVI-TP-100M XR DVI Extender with Audio, RS232 and HDCP if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of BlackBox AVX-DVI-TP-100M XR DVI Extender with Audio, RS232 and HDCP we can offer you a price of 527,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
