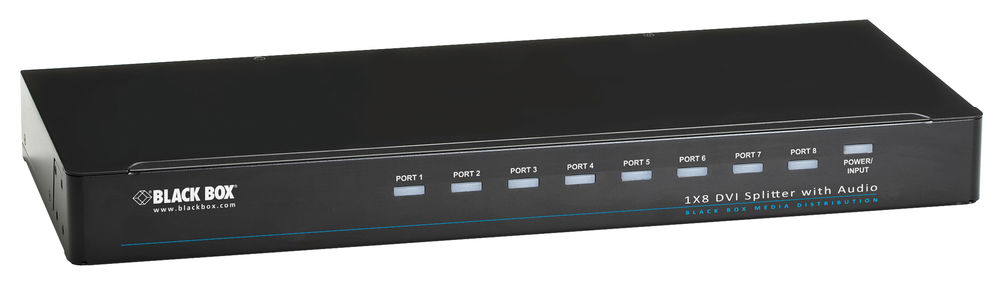

BlackBox AVSP-DVI1X8 1x8 DVI Audio/Video Splitter with HDCP support content_copy

The BlackBox AVSP-DVI1X8 is a DVI-D splitter with integrated audio transmission system and HDCP support, designed for simultaneous distribution of an HD video signal and a stereo audio signal to up to eight display devices. The device enables exact duplication of the video signal without attenuation or distortion, ensuring clear and undistorted image reproduction. It is specifically designed for use in professional environments where simultaneous display of content on multiple screens is required, such as in digital signage applications, broadcast studios, process control centers, or training rooms.

Applications

The splitter is suitable for a wide range of applications where a central video and audio source must be distributed to multiple end devices. These include retail and corporate digital signage, broadcast rooms, engineering, healthcare, research and development, classrooms, as well as temporary setups at trade shows. The HDCP compatibility enables transmission of protected content, such as that provided by Blu-ray players or other HDCP-capable sources. The EDID support ensures that the splitter queries the display information of connected monitors and forwards it to the graphics card of the source device to guarantee optimal video output.

Features and Equipment in Detail

The splitter features a single-link DVI-D input and eight DVI-D outputs, each supplemented by a 3.5 mm stereo audio input and eight 3.5 mm stereo audio outputs. Signals are distributed to the outputs without quality loss. The LED indicators signal power supply and signal activity at individual outputs, allowing visual monitoring of operation. In case of loss of input signal, the device automatically switches to a power-saving mode to minimize power consumption.

Technology Explained Simply

The maximum resolution is 1080p (1920 x 1080), UXGA (1600 x 1200), and WUXGA (1920 x 1200), with actual resolution depending on the quality and length of the DVI cables used and the AV devices. Power supply is via an external power adapter with an input range of 100–240 VAC, 50–60 Hz, and delivers an output of 9 VDC, 0.6 A. Maximum power consumption is 10.2 W. Rack mounting is provided for the 4- and 8-port versions; for the AVSP-DVI1X8A, the 48,3 cm ( 19 inch ) rack brackets are included in the delivery scope.

Compatibility and Accessories

The splitter is designed for use with EDID-capable displays. It can also be used with HDMI-compatible devices, provided that an appropriate adapter is used for each DVI port. Cascading multiple splitters allows expansion of the number of outputs, thereby increasing the number of controllable displays.

Mounting and Installation

Installation is performed by simply connecting the source device to the input and the displays to the outputs. No additional software or interface cards are required. Setup is therefore quick and can be done without technical expertise. Rack mounting enables orderly integration into existing IT infrastructures.

Operational Advantages

The splitter provides reliable, maintenance-free signal distribution with minimal latency. Automatic signal monitoring and power-saving mode ensure efficient resource utilization. The 3-year warranty under the Double Diamond™ standard underscores the quality and durability of the device.

General
Power supply output	9 VDC
HDCP support
EDID support

---
