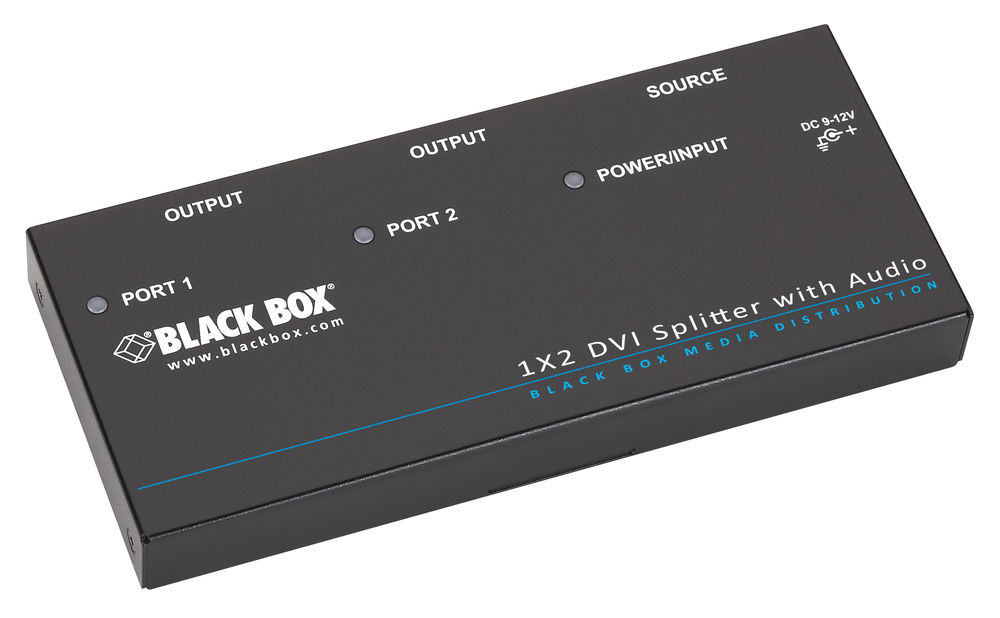

BlackBox AVSP-DVI1X2 1x2 DVI Audio/Video Splitter with HDCP support content_copy

The BlackBox AVSP-DVI1X2 is a DVI-D splitter with integrated audio and HDCP support, duplicating a single HD video and stereo audio signal to two outputs. The device is designed for use in professional environments where reliable and distortion-free signal reproduction is required, such as in retail and corporate digital signage, production studios, engineering offices, training rooms, or government command centers. Signal splitting occurs in the Single-Link DVI-D format, ensuring transmission of high-resolution video up to 1920 x 1200 (WUXGA) or 1600 x 1200 (UXGA) as well as 1920 x 1080 (1080p). However, the maximum resolution depends on the quality and length of the DVI cables used and the compatibility of the connected AV devices.

Functions and features in detail
The splitter supports the transmission of HDCP-protected content, making it suitable for use with Blu-ray players and other devices employing copy protection mechanisms. EDID support enables automatic adjustment of video output to match the characteristics of connected displays, achieving optimal image quality. Audio transmission occurs via a 3.5 mm stereo input and two 3.5 mm stereo outputs, ensuring the audio signal is synchronized with the video signal on both outputs. LED indicators include a dual-color Power/Video OK indicator and two separate Video Output LEDs, allowing visual monitoring of operational status and signal transmission.

Technology explained simply
Power supply is provided via an input range of 100 to 240 VAC, enabling worldwide use. The splitter delivers an output voltage of 9 VDC at a current of 0.6 A. Maximum power consumption is 2.8 W. The device’s cascading capability allows multiple splitters to be linked to increase the number of outputs, for example, by connecting AVSP-DVI1X2 modules to create a 1x4 or 1x8 system. Certifications CE, RoHS2, WEEE, and UL confirm compliance with European and international safety and environmental standards.

Compatibility and accessories
The device is equipped with DVI-D connectors designed for digital video signal transmission in Single-Link format. Combining it with other models in the series, such as the AVSP-DVI1X4 or AVSP-DVI1X8, allows flexible expansion of the number of outputs. Rack-mountable variants AVSP-DVI1X4A and AVSP-DVI1X8A are intended for use in server or rack systems; rack mounting brackets are included with the AVSP-DVI1X8A, while they are optional for the AVSP-DVI1X4A.

Installation and mounting
Installation is performed using the designated DVI-D and 3.5 mm audio connectors. Power supply is connected via an external power adapter rated for 100–240 VAC. The LED indicators provide visual feedback on signal transmission and operational readiness. The device dimensions are 2 cm height, 18 cm width, and 8.5 cm depth. Mounting typically occurs on a flat surface; rack mounting is not provided for the AVSP-DVI1X2 model.

Operational benefits
The splitter ensures stable and distortion-free signal transmission, maintaining identical image quality on both outputs. HDCP support enables playback of protected content, and EDID support ensures optimal adaptation to connected displays. Cascading capability offers flexibility in expanding the number of outputs without requiring additional signal converters or complex network setups. The power supply is universally compatible, and the low power consumption of 2.8 W contributes to energy-efficient operation.

General
Power supply output	9 VDC
Power consumption	2,8 W
HDCP support
EDID support

---
