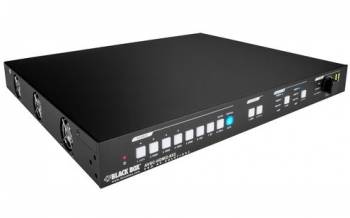

BlackBox AVSC-HDMI2-8X2 8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0

8x2 Video Matrix Switcher, Seamless 18G Switching, HDMI 2.0:

Streamline integration in meeting and presentation rooms with automatic video switching.

This 8x2 HDR Video Matrix Switcher allows seamless distribution of HDMI signals from up to 8 inputs to 2 displays, ideal for meeting and presentation rooms. The switcher supports multiple control methods and a variety of formats and resolutions, including 4K at 60 Hz (4:4:4). It is HDMI 2.0 and HDCP 2.2 compliant and supports automatic switching based on TMDS activity signals.

Specifications:

Compatibility:
- HDMI 2.0 and HDCP 2.2 compliant.

Resolutions:

- Supports video resolutions up to 4K at 60 Hz (4:4:4), 1080p, 1920 x 1200p.
- Down-scaling and up-scaling for HDMI and CATx outputs.

Inputs:

- (4) HDMI, (1) VGA, (1) DP, (1) USB-C, (1) CATx extension input.

Outputs:

- (1) HDMI, (1) CATx output.

Audio Embedding:

- Supports external balanced audio inputs for embedding into CATx, HDMI, and VGA inputs.

Audio Outputs:

- (2) Audio output groups (balanced audio, digital SPDIF) for audio de-embedding.
- MIX audio input with volume control.

Transmission Distance:

- CATx:
- 1080p at 60 Hz ≤ 70 meters.
- 4K at 60 Hz ≤ 40 meters.
- Transmission Mode: AV over CATx.

Control:

- RS-232 (local and pass-through), IR (local and pass-through), TCP/IP, relay, CEC, OSD.

Control Ports:

- (1) RS-232, (2) Relays 1-2, (1) IR eye, (2) IR IN, (1) IR OUT, (1) TCP/IP, (1) Firmware.
- Connectors: (3) 3-pin terminal blocks, (4) 3.5-mm jacks, (1) RJ-45, (1) Type-A USB.

CATx Support:

- Supports 24V PoC (Power over CAT6).
- Optical video compression and decompression for HDMI signals, transmitting up to 40 m at 4K and 70 m at 1080p.

Scaling:

- Offers 4K scaling (up and down) and supports a variety of video resolutions.

VLC Technology:

- Allows transmission of HDMI 2.0 signals over CAT5/6 cables while maintaining high image quality.

Application:

- Optimized for AV systems in presentation and meeting rooms requiring multiple displays and signal sources.

Environmental:

Temperature:
- Operating: -10 to 55°C.
- Storage: -25 to 70°C.

Humidity:

- 10 to 90% relative humidity, non-condensing.

Power Supply:

Power Adapter:
- Input: 100-240VAC, 50/60 Hz.
- Output: 24 VDC, 6 A.
- Maximum consumption: 85 W.

Dimensions and Weight:

Dimensions:
- 4.4 H x 43.6 W x 35.6 D cm (1.7H x 43,4 cm ( 17,1 inch )W x 14.0D).

Weight:

- 3 kg (6.6 lb).

Certifications:

• CE, RoHS2, WEEE, UL.
