BlackBox AVS-HDB-4KO Modular Matrix Switcher Video Output Card HDBaseT 4K Audio I

Modular Matrix Switcher – 4K Seamless, I/O Auto Detect, 16-Port:

Seamless AV distribution across various AV signals.

The Modular Matrix Switcher offers 16 or 32 ports with 4K seamless technology and automatic input/output card detection. It supports HDMI, DVI, and CATx extensions, ensuring flexible and efficient AV signal management. The switcher features 12 PCIe slots for input/output cards and 4 fixed slots for output cards, all supporting plug-and-play. Each card enables independent audio and video signal switching to reduce signal attenuation, allowing for seamless cross-switching. The switch manages all AV operations, including switching, driving, and scaling.

The switcher chassis accommodates 12 flexible slots for input/output signal cards and 4 slots for fixed output cards, supporting HDMI audio or CATx extension cards. All cards offer seamless distribution and hot-swap capability.

Technical Specifications:

Compatibility: HDMI/DVI/CATx Extension
Signal Card Detection: Automatic
EDID Management: Advanced EDID management
UPnP: Supports quick GUI connection
HDCP Support: Yes
Control: Front panel buttons, IR, RS-232, TCP/IP
Output Resolution: Adjustable
Firmware Upgrade: Online upgrade via USB port
Warranty: 2 years Double Diamond™ (standard)

Connections:

Control:
- (1) IR ALL IN, (1) IR EYE, (1) RS-232, (1) TCP/IP
- Control ports: (2) 3.5-mm mini jacks, (1) DB9, (1) RJ-45

Card Slots:

- (16) PCI-E slots for input/output cards

Power:

- Power supply: 100 to 240 VAC
- Power consumption: 13 W (no load)

Temperature:

- Operating: -10 to 55°C
- Storage: -25 to 70°C

Humidity:

- 10 to 90% relative humidity

Dimensions:

- 13.2 H x 48.3 W x 32.0 D cm (5.2H x 48,3 cm ( 19 inch )W x 12.6D)

Weight:

- 1.71 kg

### HDMI CATx Extension Cards:

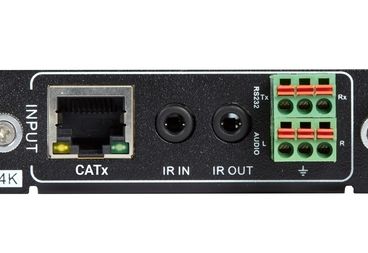

AVS-HDB-4KI (Input Card)::
Standards: HDMI 1.4, HDCP 2.2
EDID Support: EDID management
Transmission Distance:
- 1080p: Up to 70 m over CAT6
- 4K x 2K: Up to 40 m over CAT6
Inputs:
- (1) CATx, (1) Analog Audio, (1) RS232, (1) IR IN, (1) IR OUT
Input Ports:
- (1) RJ-45, (2) 3-pin terminal blocks, (2) 3.5-mm mini jacks
Power Consumption: 15 W (max.)

AVS-HDB-4KO (Output Card)::
Standards: HDMI 1.4, HDCP 2.2
EDID Support: EDID management
Transmission Distance:
- 1080p: Up to 70 m over CAT6
- 4K x 2K: Up to 40 m over CAT6
Outputs:
- (1) CATx, (1) Analog Audio, (1) RS232, (1) IR IN, (1) IR OUT
Output Ports:
- (1) RJ-45, (2) 3-pin terminal blocks, (2) 3.5-mm mini jacks
Power Consumption: 15 W (max.)
Output Resolution:
- Auto, 4K x 2K at 60 Hz (4:2:0), 4K x 2K at 30 Hz, 1024 x 768 at 60 Hz, 1920 x 1080p at 60 Hz, 1280 x 720 at 60 Hz
