BlackBox AVS-HDB-4KI Modular Matrix Switcher Video Input Card HDBaseT 4K Audio IR
|
406,08 EUR |
|
|
( 483,24 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 1712981 |
|---|---|
| Mfg Part No: | AVS-HDB-4KI |
| UPC/EAN: | 00822088135234 |
| Weight: | 0.21 kg |
Product information for BlackBox AVS-HDB-4KI:
Seamless AV distribution across various AV signals.

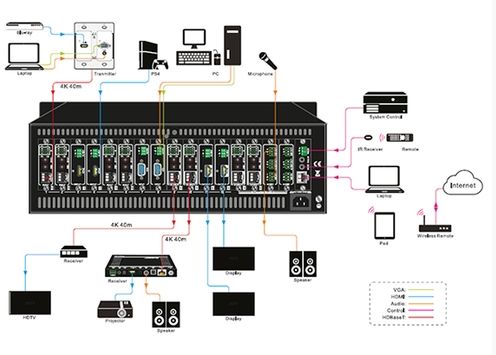

The Modular Matrix Switcher with 16 or 32 ports and 4K Seamless technology features automatic input/output card detection. Compatible with HDMI, DVI, and CATx extensions, this switcher ensures smooth AV signal distribution and management. The flexible design with 12 PCIe slots for input/output cards and 4 fixed output card slots supports plug-and-play for various signal types. With built-in EDID management, scalable output resolution, and simple control via front panel buttons, IR, RS-232, and TCP/IP, this switcher is versatile and user-friendly.
Technical Specifications:
Connections:
- Control: (1) IR ALL IN, (1) IR EYE, (1) RS-232, (1) TCP/IP
- Card slots: (16) PCI-E
- Control ports: (2) 3.5-mm mini jacks, (1) DB9, (1) RJ-45
Power:
- Power supply: 100 to 240 VAC- Power consumption: 13 W (no load)
Temperature:
- Operating temperature: -10 to 55°C- Storage temperature: -25 to 70°C
Humidity:
- 10 to 90% relative humidityDimensions:
- 13.2 H x 48.3 W x 32.0 D cmWeight:
- 1.71 kgHDMI CATx Extension Cards:

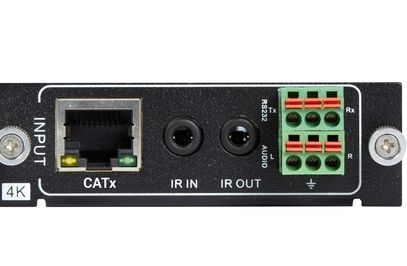

AVS-HDB-4KI (Input Card)::
Standards: HDMI 1.4, HDCP 2.2
EDID support: Yes, EDID management
Transmission distance:
- 1080p: Up to 70 m over CAT6
- 4K x 2K: Up to 40 m over CAT6
Inputs:
- (1) CATx
- (1) Analog audio
- (1) RS232
- (1) IR IN, (1) IR OUT
Input ports:
- (1) RJ-45
- (2) 3-pin terminal blocks
- (2) 3.5-mm mini jacks
Power consumption: 15 W (max.)
AVS-HDB-4KO (Output Card)::
Standards: HDMI 1.4, HDCP 2.2
EDID support: Yes, EDID management
Transmission distance:
- 1080p: Up to 70 m over CAT6
- 4K x 2K: Up to 40 m over CAT6
Outputs:
- (1) CATx
- (1) Analog audio
- (1) RS232
- (1) IR IN, (1) IR OUT
Output ports:
- (1) RJ-45
- (2) 3-pin terminal blocks
- (2) 3.5-mm mini jacks
Power consumption: 15 W (max.)
Output resolutions:
- Auto
- 4K x 2K at 60 Hz (4:2:0)
- 4K x 2K at 30 Hz
- 1024 x 768 at 60 Hz
- 1920 x 1080p at 60 Hz
- 1280 x 720 at 60 Hz
