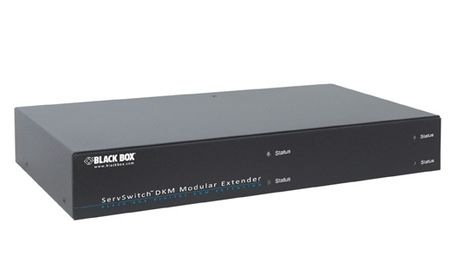

BlackBox ACXMODH-WMK

Modular KVM Extender Chassis - Power Supply, Redundancy Option:

Equip your KVM extender with interfaces based on your needs. Combine various interfaces and extend KVM signals as required. Use a chassis with transmitter cards at the computer end and a chassis with receiver cards at the console end. Modular chassis are available with 2, 4, 6, or 21 slots. Choose the cable medium based on the required distance: CATx up to 140 m, multimode up to 1,000 m, or single-mode up to 10 km. For 4K/60 DisplayPort signals, the maximum transmission distance is 1 km over multimode and 5 km over single-mode fiber. These chassis support pixel-perfect resolutions up to 2560 x 1600 (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K. The 24-bit color depth ensures high-quality video transmission.

Chassis power options include AC or DC, with internal or external power supplies, and with or without redundancy. The power connector can be at the front or rear, depending on the model. Local monitoring is available with an optional splitter cable (ACXSPL12). Mounting options include desktop, under-desk, wall-mount, or 48,3 cm ( 19 inch ) rack configurations.

Technical Data:

• Chassis Variants:
- ACXMODH2-R2: 14.5W x 14.6D x 4.4H cm
- ACXMODH4-R2: 29.2W x 15.6D x 4.3H cm
- ACXMODH6R-R2: 44.4W x 14.9D x 4.3H cm
- ACXMODH21R: 44.4W x 40D x 17.2H cm (4U)

• Power Supply:
- ACXMOD2-R2: External power supply, 90-240 VAC, 50/60Hz, 5VDC / 3A, external redundancy option
- ACXMODH2R-P-R2: Internal power supply, 90-240 VAC, 50/60Hz, 5VDC / 3A, external redundancy option
- ACXMODH6BPAC-R2: Internal power supply, 100-240 VAC, 5VDC / 10A
- ACXMODH21R: Internal power supply, 90-240 VAC, 5VDC / 10A

• Operating temperature: 5 to 45°C
• Storage temperature: -25 to 60°C
• Weight:
- ACXMOD2: 0.3 kg without modules
- ACXMOD4: 0.45 kg without modules
- ACXMODH6: 0.85 kg without modules
- ACXMODH21R: 4 kg without modules


Included Items:

• Chassis (model-specific)
• User manual
• Power supply (model-specific)
