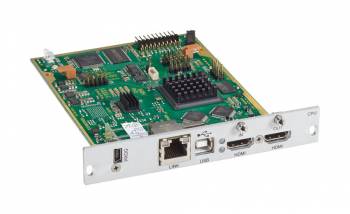

BlackBox ACX1MT-HDM2-C
CATx DKM transmitter card, HDMI plus USB HID with local HDMI feedthrough for modular housing

Modular DKM Extender Base Modules:

Customize your KVM Extender with interfaces tailored to your needs.

• Base modules with DVI-D, DVI-I, HDMI, or DisplayPort video and (2) USB keyboard/mouse ports.
• Peripheral option with (4) transparent high-speed USB 2.0 ports (480 Mbps).
• Choose between CATx and fiber links (fiber supports multimode and singlemode).
• Distances up to 140 m (CATx), 1000 m (MM), or 10 km (SM).
• Pixel-perfect resolutions from 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K across the full distance.
• High-speed video options with 2.5 Gbps bandwidth for demanding graphic applications.
• Support for multiple video channels in high-demand graphical applications.
• Use the modules in the modular DKM Extender chassis.
• Combine various interfaces and extend KVM signals as needed.
• Configure a chassis with transmitter cards at the computer and a chassis with receiver cards at the console.
• Use these extenders for point-to-point KVM extensions or in the KVM Matrix Switching Systems of the DKM FX and DKM FXC series.
• Warranty: 2 years Double Diamond™ (Standard).

Base Modules:

These modules provide one or two video ports and two USB HID ports for keyboard and mouse. They offer CATx or LC fiber connections for the remote station or in a switched environment for the central KVM switch. Each chassis of the modular DKM extenders must be equipped with at least one base module.

Choose between CATx, fiber with 1 Gbps, or high-speed fiber with 2.5 Gbps, depending on the desired distance and video bandwidth. CATx connections are ideal for shorter distances up to 140 m. Fiber modules support both multimode up to 1 km and singlemode cables up to 10 km. The 2.5 Gbps high-speed modules are designed for demanding graphics applications and offer double the normal bandwidth.

Base modules are available in various video formats. Options include Single Link DVI-D, DVI-I with VGA input and DVI-D output, Dual Head DVI-D, HDMI, and DisplayPort, each with two USB HID ports for keyboard and mouse.

Extended Features:

Modules with redundant links are ideal for applications that require a back channel or where two users need to share a video channel. Modules with an integrated 2-port switch are ideal when a local console is needed in addition to the remote console or when a console needs access to both a remote and a local computer. For pure HD video distribution, choose modules with video-only interfaces. For Wacom tablets or high-speed USB devices, choose the transparent USB 2.0 module with a speed of 480 Mbps and its own cable link.

Resolutions:

Thanks to the digital transmission of the video signal without any loss in quality, images appear as sharp as if they were directly connected to the workstation. Advanced video compression algorithms support 24-bit color depth for smooth gradients. Single Link DVI supports pixel-perfect resolutions up to 2048 x 1152, Dual Link DVI up to 2560 x 1600/2x2K, HDMI up to 1080p, and DisplayPort up to 4K.

DKM Modular Extenders Overview:

Chassis are available as desktop versions with two, four, or six slots, as well as a 19” version with 21 slots. For critical applications, versions with two power supplies for redundant operation are recommended. Choose between internal or external power supplies, AC power, or DC power in industrial applications with 12V, 24V, or 48V. The desktop chassis can also be mounted on the wall, under the desk, or in a 19” IT rack with optional mounting kits. Configure a chassis with transmitter cards for the computer and receiver cards for the console.

Transmitter Module Connections:

All: (1) USB Type B, (1) USB Type B mini (upgrade) plus:

• ACX1M1T-DHID-C: (1) DVI-D, (1) RJ-45.
• ACX1M1T-DHID-SM/ACX1MT-DHS-SM: (1) DVI-D, (2) LC.
• ACX1M1T-DHID-2C: (1) DVI-D, (2) RJ-45.
• ACX1M1T-DHID-2S/ACX1MT-DHS-2S: (1) DVI-D, (4) LC.
• ACX1MT-VDHID-C: (1) DVI-I, (1) RJ-45.
• ACX1MT-VDHID-SM/ACX1MT-VDHS-SM: (1) DVI-D, (2) LC.
• ACX1MT-VDHID-2C: (1) DVI-D, (2) RJ-45.
• ACX1MT-VDHID-2S: (1) DVI-D, (4) LC.

Receiver Module Connections:

All: (2) USB Type A, (1) USB Type B mini (upgrade) plus:

• ACX1M1R-DHID-C: (1) DVI-D, (1) RJ-45.
• ACX1M1R-DHID-SM/ACX1MR-DHS-SM: (1) DVI-D, (2) LC.
• ACX1M1R-DHID-2C: (1) DVI-D, (2) RJ-45.
• ACX1M1R-DHID-2S/ACX1MR-DHS-2S: (1) DVI-D, (4) LC.
• ACX2MR-DHH-C: (1) DVI-D, (1) RJ-45 with Dual Head cable kit.
• ACX2MR-DHH-SM: (2) DVI-D, (2) LC with Dual Head cable kit.
• ACX2MR-DHH-2C: (1) DVI-D, (2) RJ-45 with Dual Head cable kit.
• ACX2MR-DHH-2S: (2) DVI-D, (2) LC with Dual Head cable kit.

TAA Compliant: Yes, except ACX2MT-DLHS-2S.
