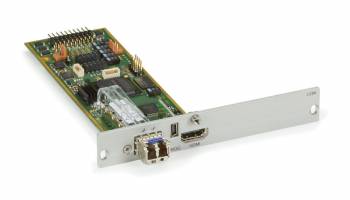

BlackBox ACX1MR-HDO-SM

Modular DKM Extender Base Modules

Equip your KVM extender with interfaces tailored to your needs.

• Base modules with DVI-D, DVI-I, HDMI, or DisplayPort video and (2) USB keyboard/mouse ports.
• Peripheral option with (4) transparent Highspeed USB 2.0 ports (480 Mbps).
• Choose between CATx and fiber links (fiber supports multimode and single-mode).
• Distances up to 140 m (CATx), 1000 m (multimode), or 10 km (single-mode).
• Pixel-perfect resolutions: up to 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K over full distance.
• Highspeed video options with 2.5 Gbps bandwidth for demanding graphics applications.
• Support for multiple video channels in demanding graphics applications.
• Use the modules in the modular DKM extender enclosures.
• Combine various interfaces and extend KVM signals according to your needs.
• Configure a chassis with transmitter cards at the computer and a chassis with receiver cards at the console.
• Use these extenders for point-to-point KVM extensions or in the KVM matrix switching systems of the DKM FX and DKM FXC series.
• Warranty: 2 years Double Diamond™ (Standard).

The Modular DKM KVM Extenders offer the widest range of combinations for video and peripheral signals, ensuring that even the most specific application can be addressed with the right KVM extender.

The Modular DKM KVM Extenders consist of chassis with 2, 4, 6, or 21 slots, base modules with video and two USB HID interfaces, and upgrade modules for peripheral connections. Special converter modules provide analog-to-digital conversion, allowing you to use various analog video sources with the system. For space-saving installations, an 8-port switching module is also available, offering the same functionality as the DKM FXC switches.

Base Modules:

The modules provide one or two video ports and two USB HID connections for keyboard and mouse. They also offer CATx or LC fiber connections to the remote endpoint or, in a switched environment, to the central KVM switch. Each modular DKM extender chassis must be equipped with at least one base module.

Supported Video Formats:

• Single Link DVI-D
• DVI-I with VGA input and DVI-D output
• Dual Head DVI-D
• HDMI
• DisplayPort

Resolutions:

• Single Link DVI: up to 2048 x 1152
• Dual Link DVI: up to 2560 x 1600 / 2x2K
• HDMI: up to 1080p
• DisplayPort: up to 4K

Transmitter Module Connections:

• ACX1M1T-DHID-C: (1) DVI-D, (1) RJ-45
• ACX1M1T-DHID-SM/ACX1MT-DHS-SM: (1) DVI-D, (2) LC
• ACX1M1T-DHID-2C: (1) DVI-D, (2) RJ-45
• ACX1M1T-DHID-2S/ACX1MT-DHS-2S: (1) DVI-D, (4) LC
• ACX1MT-VDHID-C: (1) DVI-I, (1) RJ-45
• ACX1MT-VDHID-SM/ACX1MT-VDHS-SM: (1) DVI-D, (2) LC
• ACX1MT-VDHID-2C: (1) DVI-D, (2) RJ-45
• ACX1MT-VDHID-2S: (1) DVI-D, (4) LC
• ACX2MT-DHH-C: (1) DVI-D, (1) RJ-45 with Dual Head cable kit
• ACX2MT-DHH-SM: (2) DVI-D, (2) LC with Dual Head cable kit
• ACX2MT-DLH-C: (1) DVI-D, (1) RJ-45 with Dual Link cable kit
• ACX1MT-HDMI-C: (1) HDMI, (1) RJ-45
• ACX1MT-HDM2-C: (2) HDMI, (1) RJ45
• ACX2MT-DPH-C: (1) DisplayPort, (1) RJ-45

Receiver Module Connections:

• ACX1M1R-DHID-C: (1) DVI-D, (1) RJ-45
• ACX1M1R-DHID-SM/ACX1MR-DHS-SM: (1) DVI-D, (2) LC
• ACX1M1R-DHID-2C: (1) DVI-D, (2) RJ-45
• ACX1MR-HDMI-C: (1) HDMI, (1) RJ-45
• ACX1MR-HDMI-2C: (1) HDMI, (2) RJ-45
• ACX2MR-DPH-C: (1) DisplayPort, (1) RJ-45

TAA-compliant: Yes, except for ACX2MT-DLHS-2S.
