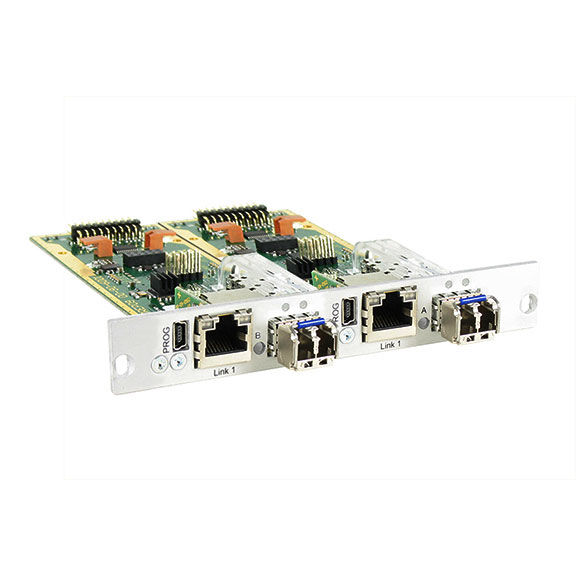

BlackBox ACX1M-2C2S
DKM Dual Cross Modular Repeater Module

DKM FX Repeater Module

Double the transmission range with the DKM FX. This module is placed between the transmitter and receiver, repeating the data signal carried through the cable. It extends the cable range from a maximum of 10 km to up to 20 km. The Cross Repeater also allows for CATx to fiber conversion for the DKM FX.

Technical Data:

• Range extension: Extends cable range from 10 km to 20 km
• Conversion: Converts CATx to fiber
• Mounting: Fits into the modular housing of the DKM transmitter
• Warranty: 2 years Double Diamond™

The DKM extenders offer flexible configuration options with a wide range of combinations, allowing for customized solutions tailored to specific needs. The modular DKM KVM extenders consist of a chassis with 2, 4, 6, or 21 slots and basic link modules for signal transmission. With upgrade modules for peripheral connections and special converter modules, analog video inputs can be converted to DVI outputs.

Repeater Modules:

These modules can double the range of copper cables or fiber cables using the DKM FX system. The Cross Repeater Modules (ACX1M-CS and ACX1M-2C2S) also enable CATx to fiber conversion.

Module Options:

• ACX1M-CC and ACX1M-2C2C: Extends CATx cables from a maximum of 122 m to up to 244 m.
• ACX1M-SS and ACX1M-2S2S: Extends fiber optic cables from a maximum of 10 km to up to 20 km.
• ACX1M-CS and ACX1M-2C2S: Extends fiber cables up to 20 km and CATx cables up to 244 m. Additionally, the module reduces EMI interference when converting copper to fiber.

Modular Overview:

The modular DKM chassis are available as desktop versions with 2, 4, or 6 modules or as 19-inch rackmount chassis for up to 21 modules. All enclosures come with redundant power supplies and can optionally be powered via DC. The basic modules offer CATx, fiber, or high-speed fiber connections. Upgrade modules support peripherals such as USB HID, PS/2, USB 2.0, serial data, and audio.

The DKM repeater modules double the transmission range, while the converter modules integrate analog video inputs into the DKM system.

Certifications: FCC, TÜVC GS No. 15587, CE, RoHS, WEEE
Connections:

• ACX1M-CC: 2 RJ45 Interconnect, 1 Mini USB (Programming port)
• ACX1M-SS: 1 LC Interconnect input, 1 LC Interconnect output, 1 Mini USB
• Range: Up to 20 km via fiber, 244 m via CATx
• Power supply: Via chassis (ACXMODHx)
• Dimensions: 4.3 (H) x 14.8 (W) x 14.6 (D) cm
• Weight: Product: 0.3 kg, Shipping: 2.2 kg

NOTE: Using multimode fiber cables with single-mode modules can generally double the allowed cable length.
