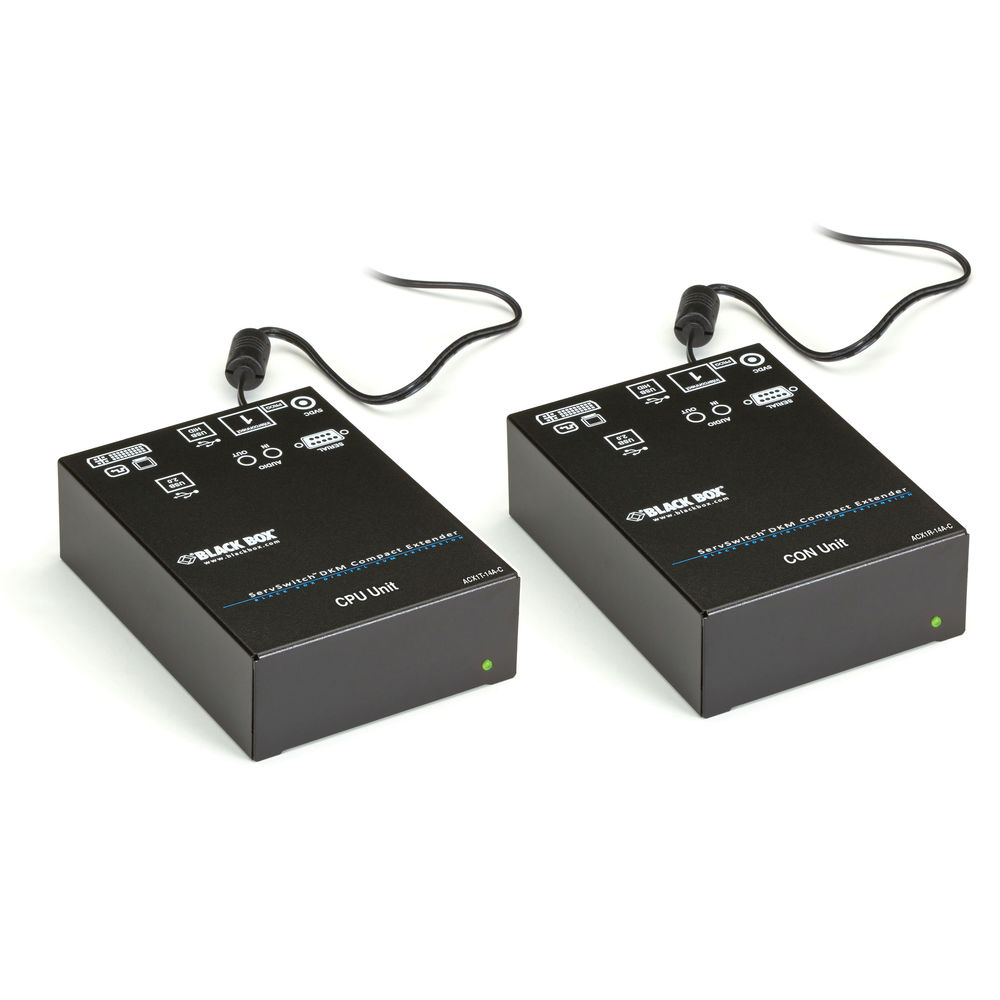

BlackBox ACX1K-14A-C
CATx DKM compact extender kit: 1x SL DVI, 2x USB HID, 2x embedded USB 2.0 36Mbps RS232, analog audio

Product Description:

The CATx Compact DKM Extender Kits allow high-resolution digital video, USB, audio, and serial data to be extended over distances up to 140 meters. These extenders offer pixel-perfect video transmission with resolutions up to 2048 x 1152 at 60Hz and 24-bit color depth. USB HID interfaces for keyboard and mouse with true USB emulation ensure full functionality. The extenders support VGA or DVI-D inputs and DVI-D outputs, along with options for analog and digital audio, serial data, and USB 2.0 with speeds from 36 Mbps to 480 Mbps.

These compact extenders are ideal for use in control rooms, POS systems, digital signage, or industrial environments where computers and workstations need to be separated. The signals can also be monitored locally with an optional splitter cable. The extenders offer multiple mounting options, including 48,3 cm ( 19 inch ) rackmount or DIN rail mounting.

Technical Data:

• Point-to-point extension up to 140 m
• Video quality:
- Resolution up to 2048 x 1152 at 60Hz
- 24-bit color depth
- Supports interlaced video (e.g., 1080i)

• Transmission:
- CAT5e/6/7 cables for distances up to 140 m
- Fiber optic models for Multimode (up to 1,000 m) and Singlemode (up to 10 km)

• USB HID support:
- 2 or 4 USB-HID ports for keyboard and mouse
- Full support for extended USB functions

• USB 2.0:
- Highspeed USB up to 480 Mbps (model ACX1K13-C)
- 36 Mbps USB 2.0 for Single-Link DVI-D (model ACX1K14-C)

• Serial interface and audio:
- RS232/V.24 transmission up to 19.2 Kbps
- Analog and digital audio transmission in CD quality

• Video support:
- DVI-D and VGA with scalable resolutions up to 1920 x 1200

• Local monitoring via optional splitter cable

Connections — Transmitter:

• All models:
- (1) DVI-I, (1) USB Type B, (1) RJ45 CATx, (1) miniUSB Type B (for Flash upgrades), (1) Power input

• Model ACX1T-11V-C:
- Additional DVI-I for VGA or DVI-D, IR sensor

• Model ACX1T-12A-C:
- Additional USB Type B, DB9 serial, (2) 3.5mm audio jacks

• Model ACX1T-14A-C:
- Additional USB Type B, DB9 serial, (2) 3.5mm audio jacks

• Model ACX1T-22-C:
- (2) DVI-I, (1) RJ45 CATx, (1) USB Type B

Connections — Receiver:


• All models:
- (1) DVI-I, (2) USB Type A, (1) RJ45 CATx, (1) miniUSB Type B (for Flash upgrades), (1) Power input

• Model ACX1R-11V-C:
- IR sensor

• Model ACX1R-13-C:
- (4) USB Type A for USB 2.0, (2) USB Type A for USB HID

• Model ACX1R-12A-C:
- (2) USB Type A for HID, DB9 serial, (2) 3.5mm audio jacks


Power Supply:



• Transmitter and Receiver: 90 to 240 VAC, 47 to 63 Hz, autosensing, external power supply with IEC320 connection

Dimensions and Weight:

• Single Video Models: 103 W x 143 D x 29 H mm
• Dual Video Models: 103 W x 143 D x 43 H mm

Certifications:

• TAA-compliant

Warranty:

• 2 years Double Diamond™ Standard
