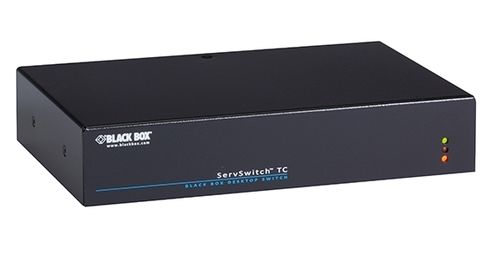

BlackBox ACX1004A-HID4 TC KVM SWITCH W/ GLIDE&SWITCH MOUSE, 4-PORT (4)HID

Product Description:

The TC Series Keyboard-Mouse Switch enables instant switching of a USB keyboard and mouse between up to eight monitors. Featuring a user-friendly interface, this switch allows quick and easy management of multiple CPUs from one workstation. Switching between different screens can be done through a hotkey sequence or push buttons, making it highly efficient for users. Optional LED indicators are available to show the active monitor.

The TC Switch supports USB HID devices such as keyboards, mice, touchscreens, and panels, and some versions also support USB 2.0. The Glide-and-Switch feature allows the user to move the mouse cursor beyond the edge of the monitor to switch between multiple screens. This switch is ideal for applications in banking, surveillance, control rooms, or critical environments.

Switching
Switching is triggered through programmable hotkey sequences or the Glide-and-Switch feature. Each monitor can be optionally equipped with an LED indicator to show the active screen and mouse location. The LEDs (KV0004A-XTRA-LED) provide a bright light indicating which monitor is active.

Integration
The TC Switch integrates seamlessly with KVM extension and switching systems like DKM Matrix Switches and Extenders, making it an ideal solution for complex multi-display environments.

Mounting Options
Designed for desktop use, the TC Switch can also be rack-mounted in 19-inch racks, providing flexibility for various work environments.

Technical Data:

• Switching:
- Via hotkeys or Glide-and-Switch mouse control
- RJ-22 ports for optional activity LEDs or push-button controls

• Models:
- ACX1004A (4-port version)
- ACX1008A (8-port version)

• Screen Layouts:
- ACX1004A: 4x1 or 2x2 (horizontal); 1x4 (vertical)
- ACX1008A: 8x1 or 2x4 (horizontal); 1x8 (vertical)

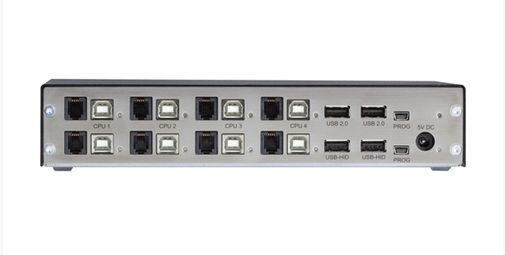

• Ports – ACX1004A-HID2:
- User: 2x USB HID Type A, 1x Mini USB for firmware upgrades
- CPU Interfaces: 4x USB HID Type B, 4x RJ-22 for LEDs

• Ports – ACX1008A-HID2:
- User: 2x USB HID Type A, 1x Mini USB for firmware upgrades
- CPU Interfaces: 8x USB HID Type B, 8x RJ-22 for LEDs

• Power Supply:
- Input: 100–240V, 0.8 A max.
- Output: +5V, 3A

• Dimensions:
- 221 H x 147 W x 43 D mm

• Weight: 0.6 kg
• Mounting Options:
- Desktop chassis, 19-inch rack mountable (optional kits)

• Environment:
- Operating temperature: 5 to 45 °C
- Humidity: max. 80%, non-condensing

• Certifications: CE, RoHS2
• Warranty: 2 years Double Diamond™

Included Items:

• 1x TC Series Keyboard-Mouse Switch
• 1x Power adapter
• 1x USB cable
• User manual
