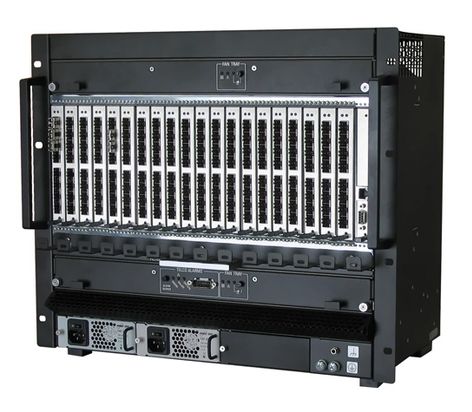

BlackBox ACX048-R2 SERVSWITCH DKM FX 48 W/CTRL CARD+PWR SUPPLY R2

Product Description:

The KVM Single/Dual-Head CATx Extender – DisplayPort allows for the secure placement of critical computer hardware in a protected environment while maintaining full desktop functionality for the user. This high-resolution DisplayPort KVM extender supports USB 2.0 and transmits video, USB, and audio signals over a single CATx cable, enabling a distance of up to 150 meters for one monitor with a resolution of 1920x1080. For two monitors with 1920x1200 or one high-resolution monitor up to 2560x1600, a distance of up to 100 meters can be achieved.

This plug-and-play system offers uncompressed signal transmission, ensuring every pixel of every frame is transmitted losslessly. The receiver supports DisplayPort Dual Mode (DP++), allowing monitors that only support HDMI or DVI to be used (adapter required). With USB 2.0 Hi-Speed, connecting storage devices, webcams, keyboards, mice, tablets, and touchscreens is easy.

The intelligent EDID management ensures optimal transmission of monitor characteristics to the computer, while S/PDIF for digital audio and analog audio signals in HD quality ensure the best audio performance. It supports high audio quality (stereo, 24-bit, 96 kHz) and is simple to set up without any software or driver installation.

Technical Data:

• Extendable distance:
- Up to 150 m for one monitor with 1920x1080
- Up to 100 m for two monitors with 1920x1200 or one high-resolution monitor (up to 2560x1600)

• Maximum resolution: 2560x1600 @ 30fps, 1920x1080 @ 120Hz
• Supported displays: Mac Cinema Display (2560x1440), Single- and Dual-Head DisplayPort
• Ports – Transmitter:
- 2x DisplayPort sockets (Link A/B)
- 2x USB Type B sockets (Link A/B)
- 2x 3.5-mm audio jacks (MIC/Audio)
- 1x RJ-45 options port
- 2x RJ-45 Link ports
- 1x 2.5 mm barrel power connector

• Ports – Receiver:
- 2x DisplayPort sockets (Link A/B)
- 4x USB Type A sockets
- 4x 3.5-mm audio jacks (MIC/Audio, front/rear)
- 2x RJ-45 Link ports
- 1x RJ-45 options port
- 1x 2.5 mm barrel power connector

• Audio:
- Digital: S/PDIF (3.5-mm jack)
- Analog: HD stereo (24-bit, 96 kHz)

• USB support:
- Hi-Speed USB 2.0 for mass storage and isochronous devices
- Supports USB Human Interface Devices (HID) such as mice, keyboards, tablets, joysticks, webcams etc.

• EDID management: Intelligent EDID passthrough
• Power supply:
- External in-line power supply (PS650)
- Input: 100–240 VAC, 50/60 Hz, 0.8A max.
- Output: 5 VDC, 4 A max.
- Power consumption: 20 watts

• Dimensions:
- Transmitter: 4.5 H x 20.1 W x 11.7 D cm
- Receiver: 4.5 H x 20.1 W x 11.7 D cm

• Weight:
- Transmitter: 0.65 kg
- Receiver: 0.65 kg

• Environment:
- Operating temperature: 0 to 40 °C
- Humidity: 80% non-condensing

• Certifications: CE, FCC (Part 15, Class A), RoHS, TUV, UL
• Warranty: 2 years Double Diamond™

Included Items:

• 1x Transmitter
• 1x Receiver
• 2x Power supplies (5 VDC, 4 A)
• 2x USB Type A to Type B cables
• 2x DisplayPort cables
• 2x 3.5-mm audio cables
• User manual
