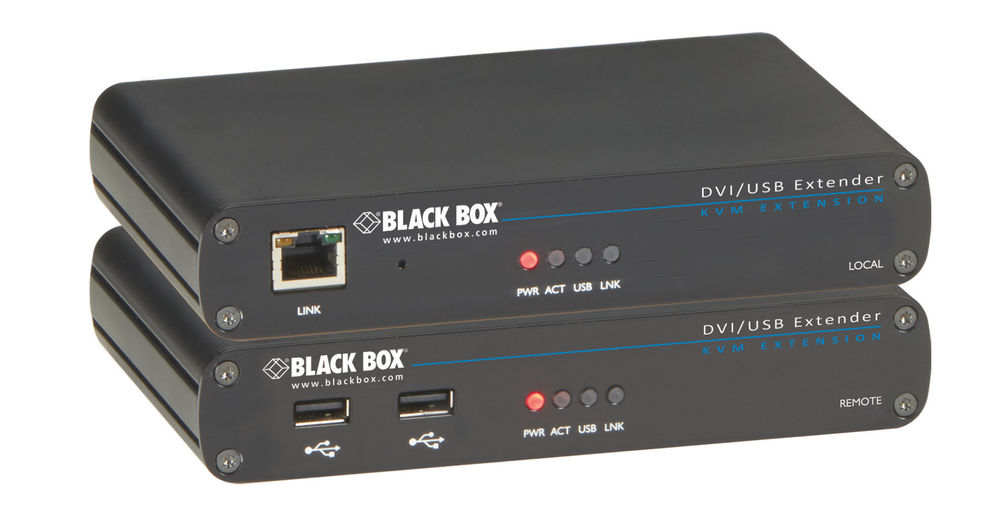

BlackBox ACU5700A
CATx KVM Extender, (1) DVI-D and USB up to 150m

Product Description:

The LRX KVM Extender – DVI, USB 2.0, serial, audio extends DVI-D, USB, audio, and serial signals over a single CATx cable up to 150 meters. It is ideal for environments where the computer hardware needs to be securely placed away from the user console. It supports resolutions up to 1920x1200 and transmits video pixel-perfect without compression, ensuring high-quality image reproduction.

The extender supports USB 2.0, allowing the connection of devices such as keyboards, mice, storage devices, touchscreens, and webcams. With real-time transmission, all connected USB devices can be controlled without delay. A 4-port USB hub integrated into the receiver allows multiple USB devices to be connected.

Thanks to the intelligent EDID management, the video display is automatically optimized for the connected monitor's capabilities, ensuring the best video quality. The maximum resolution of 1920x1200 can be achieved over distances up to 100 meters. The extender is also compatible with the Wizard USB DVI KVM Switch (KV2004A), allowing remote control of up to 4 computers.

The LRX KVM Extender offers a robust and reliable solution for extending USB, audio, and video signals over long distances, making it ideal for industrial applications.

Technical Data:

• Transmission distance: Up to 150 m
• Maximum resolution:
- Up to 1920x1080 @ 150 m
- Up to 1920x1200 @ 100 m

• Ports – Transmitter:
- 1x DVI-D socket
- 1x USB Type B socket
- 1x 3.5-mm audio jack
- 1x RJ45 Link
- 1x RJ45 options port
- 1x Mini USB Type B
- 1x 3-pin power connector with locking mechanism

• Ports – Receiver:
- 1x DVI-D socket
- 4x USB Type A ports
- 1x 3.5-mm audio jack
- 1x RJ45 Link
- 1x RJ45 options port
- 1x Mini USB Type B (for upgrades)
- 1x 3-pin power connector with locking mechanism

• EDID support: Real-time
• LED indicators – Receiver:
- 2x RJ45 Link, 1x Power, 1x ACT, 1x USB, 1x LNK

• Environment:
- Operating temperature: 0° to 40° C
- Relative humidity: 80% non-condensing

• Power supply:
- External power adapter
- Input: 100 to 240V AC, 50/60 Hz, 0.7A max.
- Output: 12V DC, 1.5A max.
- Power consumption: 18 watts

• Dimensions: 3 H x 16.8 W x 12.2 D cm
• Weight: 0.59 kg per unit
• Certifications: CE, FCC (Part 15, Class A), RoHS, TUV, UL
• Warranty: 2 years Double Diamond™

Included Items:

• 1x Transmitter
• 1x Receiver
• 2x 12V DC, 1.5A power adapters with power cables
• 1x USB Type A to Type B cable
• 1x DVI-D cable (Male/Male)
• 1x Set of rubber feet
• Safety information
