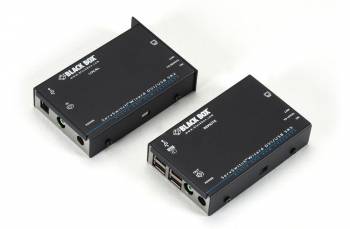

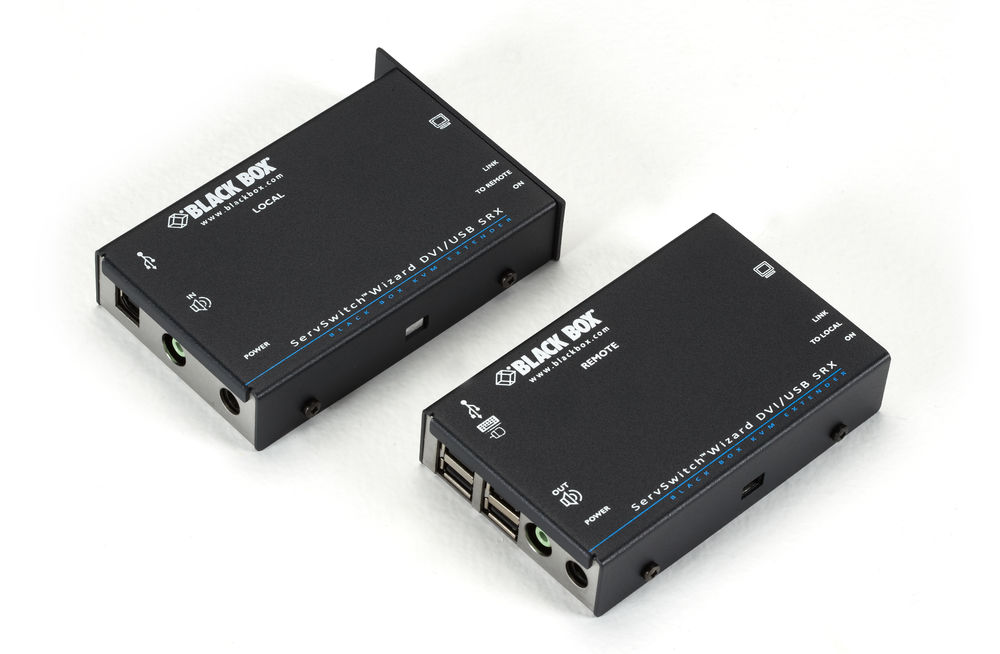

BlackBox ACU5501A-R4
Wizard SRX DVI-D plus USB Extender DVI-D up to max.Full HD Transparent USB with FullSpeed 36Mbps stereo audio in CD quality (analog and embedded digital) distances up to 50m
|
837,12 EUR |
|||||||||||
|
( 996,17 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 100375 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ACU5501A-R4 | ||||||||||
| UPC/EAN: | 00822088067719 | ||||||||||
| Weight: | 1.63 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox ACU5501A-R4:
Product Description:
The Wizard SRX Extender – DVI, USB 2.0, Audio extends single or dual-link DVI-D, USB 2.0, and audio signals up to 50 meters over a single shielded CAT6/7 cable. Transmission is lossless and uncompressed, making it ideal for applications like image editing and simulations where zero latency is critical. Maximum resolution reaches 1080p or 1920x1200 for Single-Link DVI, and up to 2560x1600 for Dual-Link DVI across the full distance.
This extender offers full USB 2.0 support, including HID devices and storage media, with data transfer rates up to 12 Mbit/s. A 4-port USB hub on the receiver enables the connection of USB devices such as keyboards, mice, touchscreens, and tablets. The extender also supports both analog and digital audio, with the ability to transmit audio in CD-quality.
For easy setup and optimal image quality, the extender reads and stores EDID information from the connected monitor, allowing the graphics card to function as if directly connected. The Wizard SRX Extender is available in different models: either with one or two Single-Link DVI channels or a model with one Dual-Link DVI channel.
Additionally, the extender can be rack-mounted, fitting neatly into a 48,3 cm ( 19 inch ) rack. Its compact design allows up to 16 single or eight dual-video units to fit into the ACU5000A housing. The transmitter can be powered through the PC interface or via an optional external power supply.
Technical Data:
- Transmission distance: Up to 50 m (via shielded CAT6/7 cable)
- Supported resolutions: - Single-Link DVI: Up to 1080p or 1920x1200 @ 60 Hz
- Ports – ACU5501A-R3/ACU5520A: - Transmitter: 1x USB Type B, 1x DVI-D, 1x 3.5-mm audio jack, 1x RJ-45 (link), 1x power port for optional power supply
- Ports – ACU5502A-R2: - Transmitter: 2x USB Type B, 2x DVI-D, 2x 3.5-mm audio jacks, 2x RJ-45 (link), 1x power port for optional power supply
- Audio transmission: Embedded stereo audio, 16-bit, 44.1 kHz (CD quality)
- EDID support: 256 Byte DDC read and store functionality
- Power supply: 90 to 240V AC, 47 to 63 Hz, external power adapter, IEC-320 connector
- Dimensions: - ACU5501A-R3/ACU5520A: 2.6 x 7.5 x 12.5 cm
- Operating temperature: 0º–45º C
- Humidity: 0–95% relative humidity
- Warranty: 2 years Double Diamond™
- Dual-Link DVI: Up to 2560x1600 @ 60 Hz
- Receiver: 4x USB Type A, 1x DVI-D, 1x 3.5-mm audio jack, 1x RJ-45 (link), 1x power port
- Receiver: 4x USB Type A, 2x DVI-D, 2x 3.5-mm audio jacks, 2x RJ-45 (link), 1x power port
- ACU5502A-R2: 5.0 x 7.5 x 12.5 cm
Included Items:
- 1x Transmitter module
- 1x Receiver module
- 1x USB Type A/B M/M cable
- 1x DVI-D M/M one-way cable
- 1x 3.5-mm audio cable
- 1x 5 VDC, 2.5 A, 12.5 W power supply with power cord
- 8x Rubber feet
