BlackBox ACU5110A Wizard Extender Kit mit DeSkew

Flash update capable Emulates DDC Transparent serial up to 57600bps Includes: 1 x Local unit 1 x Remote unit 1 x Power supply 1
The KVM extender solution that grows to meet future needs.
ServSwitch™ Wizard Extenders not only make it easy to place CPUs or ServSwitch KVM switches up to 200 meters from workstations, they are also expandable.

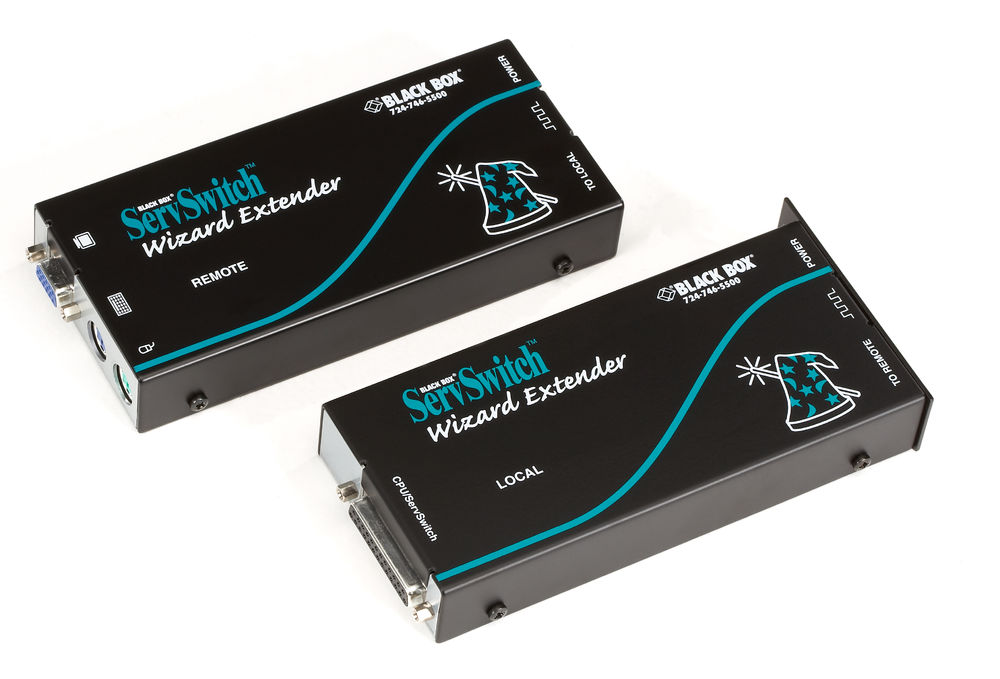

If the installation is small, use one or two Wizard Extender Kits (ACU5010A). Each kit includes a transmitter module for local CPU connections and a receiver module for remote workstation connections (keyboard, monitor and mouse).
And as small installations grow into larger ones, up to 16 of the local or remote modules can be installed in the optional 2U chassis (ACU5000A) for mounting in any standard 19 cabinet or rack.
The KVM extender solution that grows for future needs.
ServSwitch™ Wizard Extenders not only make it easy to place CPUs or ServSwitch KVM switches up to 200 meters from workstations, they are also expandable.
If the installation is small, use one or two Wizard Extender Kits (ACU5010A). Each kit includes a transmitter module for local CPU connections and a receiver module for remote workstation connections (keyboard, monitor and mouse).
And as small installations grow into larger ones, up to 16 of the local or remote modules can be installed in the optional 2U chassis (ACU5000A) for mounting in any standard 19© cabinet or rack. A single power supply module (PS5000) supplies power to up to four remote modules in the chassis. (NOTE: Local modules do not require power.)
The receiver module (ACU5011A) can also be ordered individually and paired
with a ServSwitch Duo or ServSwitch Quadro. These KVM switches have built-in CAT5 transmitters. In this setup, the keyboard, monitor and mouse can be placed up to 200 meters away from the Duo or Quadro. The receiver module has an optional password security feature that, when activated, turns off the video and disconnects the keyboard and mouse.
Affordability and compatibility.
This powerful KVM extender uses inexpensive CAT5 cables - like the UTP cable that may already be installed in a building - and works with all IBM PCs and compatible devices. The extender supports Alpha, SGI and RS/6000™ computers as well as Microsoft® IntelliMouse®, IntelliMouse Explorer and other popular wheel mice.
The extender also has ports for PS/2 keyboards and mice.
NEW! Wizard Dual Video Local Unit
The local dual video unit offers PS/2 K/M expansion as well as dual video! It can be set to either split a single VGA input signal to transmit to two remote locations or to transmit two separate video signals along with the K/M signals. (Each video signal requires a single 4-pair UTP)
(Call BB Technical Support for rack mount option information.)
NEW! Wizard Series and Audio Kit
RS-232 up to 57.6 kBit and bi-directional stereo audio extension in addition to PS/2 KVM signals via just a single Cat 5/5e/6 cable.
(Call BB Technical Support for rack mount option information.)
Specifications:
Connections:
Single Access - Yes
Dual Access - No
Audio - No
Serial Number
Connectors -
Local Module:
ACU5010A: (1) DB25 F, ( 1) RJ-45, (1) 8-pin DIN;
Remote Module:
ACU5010A: (1) HD15 F, (2) 6-pin Mini-DIN F, (1) RJ-45, (1) barrel connector;
ACU5011A: (1) HD15 F, (2) 6-pin mini-DIN F, (1) RJ-45, (1) barrel connector
Management:
DIP switch -[/b] ACU5100A: (1) internal DIP switch bank for Skew Compensation
Engine (KVM Extender):
Extender Type - Analog Copper
Cabling Type - CAT5/CAT5e/CAT6
Supported Platforms - PS/2®, AT®
Supported Mice - User and CPU: Wheel Mouse, PS/2
Resolution - Local and Above Distance: 1600 x 1280 at 85 Hz at 65 m, 1024 x 768 at 75 Hz at 200 m
Operating Environment:
Power -
ACU5010A: Local: From the interface;
ACU5010A: Remote, ACU5011A: External 100-240 VAC, 47-63 Hz, autosensing; Optional power supply (PS5000) available for remote units mounted in ACU5000A
Chassis - metal case
Size - ACU5010A (both units), ACU5011A: 2.5 H x 7.3 W x 11.9 cm; ACU5000A: 8.6H x 48.3W x 22.9D cm
Weight - ACU5010A (both units), ACU5011A: 0.5kg; ACU5000A: 2.2kg
MTBF - ACU5010A: 500,000 hours,
[b]Temperature - Operating: 0-45°C
[b]Humidity - Operating: 0-95% relative
