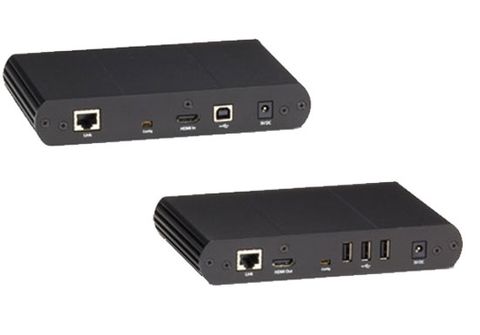

BlackBox ACU2500A-R3 HDMI, USB2.0 CAT5E EXTENDER - 100 METERS

Product Description:

The CATx KVM Extender – HDMI, USB 2.0 allows you to extend high-definition video and USB 2.0 signals over a distance of up to 100 meters without compromising signal quality. It transmits HDMI and USB signals over a single CATx cable, supporting the Extreme USB® technology. With a full HD resolution of up to 1920x1200 and 1080p at 24-bit color depth, it is ideal for demanding applications such as medical imaging, interactive digital signage, and high-end home theaters.

This extender seamlessly transmits HDCP-protected content and supports advanced technologies like 3D, 4K, Deep Color, and x.v. Color. Additional features such as Lip Sync and CEC are also supported. With a maximum transmission range of 100 meters, the extender effortlessly connects HDMI players, displays, and other devices. USB 2.0 and 1.1 peripherals like keyboards, mice, or flash drives are transmitted without delay. The installation is straightforward, requiring only a single CAT5e or higher cable to establish the connection.

One key feature is the transmission of uncompressed video signals, ensuring real-time playback with no delays. The plug-and-play operation, without the need for additional drivers, simplifies setup, and the extender is compatible with all major operating systems. Therefore, it is an excellent solution to place computers and other devices securely up to 100 meters away and control them via HDMI and USB.

Technical Data:

• Transmission distance: Up to 100 m (CAT5e or higher)
• Supported resolutions: 1920x1200, 1080p, 4K
• Supported colors: 36-bit, Deep Color, x.v. Color
• Supported formats: 2D, 3D, HDCP
• Latency: <1 ms
• Transmitter ports:
- 1x USB Type B
- 1x HDMI socket
- 1x MiniUSB
- 1x RJ-45 (Link)
- 1x Power port
- 1x MiniUSB (for firmware updates)

• Receiver ports:
- 3x USB Type A sockets
- 1x HDMI socket
- 1x MiniUSB
- 1x RJ-45 (Link)
- 1x Power port

• Supported operating systems: Windows®, Mac®, Linux®
• Power supply: 100 to 240V AC, 50 to 60 Hz, external power adapter
• Dimensions: 11.2 x 17.5 x 3 cm
• Weight: 0.4 kg
• Certifications: CE, RoHS
• Warranty: 1-year Double Diamond™

Included Items:

• CATx KVM Extender Transmitter
• CATx KVM Extender Receiver
• Power adapters for transmitter and receiver
• HDMI cable
• USB cable
• User manual
