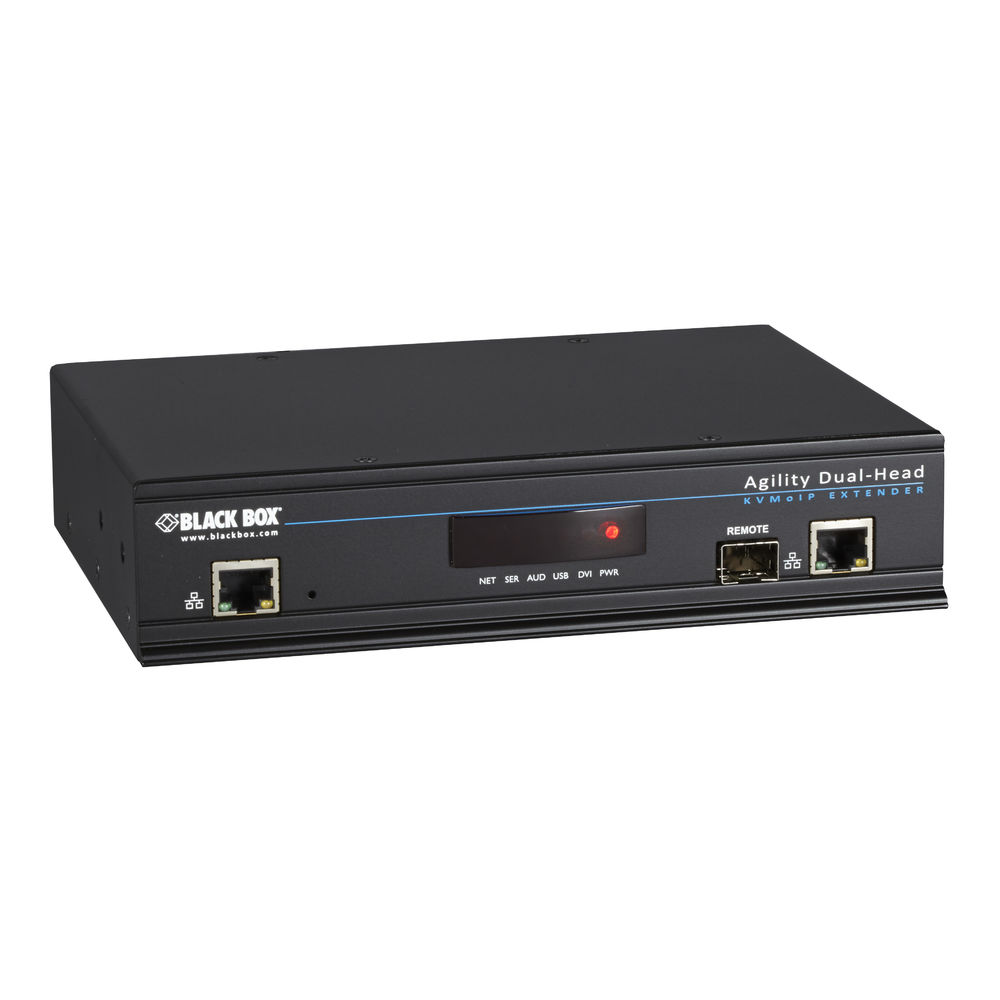

BlackBox ACR1020A-R
ServSwitch Agility Dual Head Receiver

Agility DVI, USB, and Audio Extender over IP

Flexible extension of DVI-D, USB, audio, and serial signals via direct connect or IP networks:

• Dual CATx/SFP interfaces offer flexibility with media connections, providing redundancy or bandwidth aggregation
• Range up to 100 m via CATx, 10 km via fiber, or unlimited via standard IP networks
• Supports DVI-D video, USB HID, USB 2.0, serial, and bidirectional audio signals
• Models with Single Link DVI (1920x1200), Dual Head DVI (2x 1920x1200/1080p), and Dual Link DVI (2560x1600/2kx2k)
• Lossless compression, low latency, pixel-perfect video and control
• Emulation for keyboard/mouse and other USB HID devices like touchscreens or storage media
• Fanless design for silent operation
• ACR1012A-T offers out-of-band access down to the BIOS level
• Plug-and-play installation
• Easy future expansion into a KVM matrix

Description:

The Agility Extender enables powerful extension of DVI video, audio, USB HID, USB 2.0, and RS-232 signals over a Gigabit network in real-time. This allows critical hardware components to be placed in remote, climate-controlled environments while maintaining a perfect desktop experience.

Flexible Media Options:

In addition to the CATx connection, Agility offers an SFP port for fiber extensions. Use the CATx interface for distances up to 100 meters, or extend further using a Gigabit Ethernet switch for additional 100 m segments. With the SFP ports, you can use multimode fiber for distances up to 500 m or singlemode fiber for up to 10 km.

Pixel-Perfect Video:

Agility Extenders deliver pixel-perfect HD video and support models like Single Link (1920x1200), Dual Head (2x 1920x1200), and Dual Link DVI (2560x1600). For demanding video applications, bandwidth aggregation allows for resolutions up to 1080p or RGB 4:4:4 at 60 fps.

Teaming for Redundancy and Aggregation:

Agility supports two independent Ethernet connections for redundancy or bandwidth aggregation. This allows throughput of up to 2GB, ideal for maintaining high-quality video in graphics-intensive applications.

USB 2.0:

Beyond standard USB devices such as mice and keyboards, Agility Extenders support specialized devices like graphic tablets or 3D controllers. For increased security, the system can disable non-HID devices, preventing unwanted storage devices from connecting.

Out-of-Band Remote Access:

The Agility Dual VNC (ACR1012A-T) provides an additional RJ-45 management port, allowing BIOS-level access remotely via VNC or Java. This reduces downtime and maintenance costs, as no on-site service is needed.

Easy Expansion into a KVM Matrix:

Agility Extenders are part of the Agility Matrix Switching solution and can easily be expanded into a matrix system that connects multiple computers and users. The iPATH management server enables central control, resource sharing, and video multicasting.

Technical Data:

Connections:

• ACR1000A-T-R2:
- Video: (1) DVI-D female
- Audio: (2) 3.5 mm audio jacks, in and out
- USB: (1) USB Type B
- Serial: (1) RS-232 DB9
- Network: (1) RJ-45, 1 Gigabit Ethernet (CAT6 recommended), (1) SFP slot

• ACR1002A-T/ACR1020A-T:
- Video: (2) DVI-D female
- Audio: (2) 3.5 mm audio jacks, in and out
- USB: (1) USB Type B
- Serial: (1) RS-232 DB9
- Network: (1) RJ-45, 1 Gigabit Ethernet, (1
