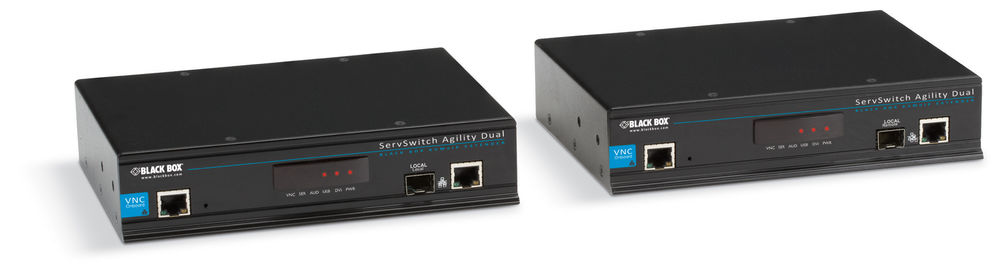

BlackBox ACR1012A-T
ServSwitch Agility Transmitter, Dual Graphics, VNC
|
2.175,36 EUR |
|||||||||||
|
( 2.588,68 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 100333 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ACR1012A-T | ||||||||||
| UPC/EAN: | 00822088001355 | ||||||||||
| Weight: | 2.3 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox ACR1012A-T:
Flexible extension of DVI-D, USB, audio, and serial signals via direct connect or IP networks:
- Dual CATx/SFP interfaces for flexibility in media connections, with redundancy or bandwidth aggregation
- Range up to 100 m over direct CATx connection, 10 km over fiber, or unlimited over IP networks
- Supports DVI-D video, USB HID, USB 2.0, RS-232 serial, and bidirectional audio signals
- Models with Single Link DVI (1920x1200), Dual Head DVI (2x 1920x1200/1080p), and Dual Link DVI (2560x1600/2kx2k)
- Lossless compression, low latency, pixel-perfect video, and control
- Emulation for keyboard/mouse and USB HIDs like touchscreens or storage devices
- Fanless design for quiet operation
- ACR1012A-T provides out-of-band access down to the BIOS level
- Plug-and-play installation
- Easy expansion to a KVM matrix
Description:
The Agility Extender provides powerful extension of DVI video, audio, USB HID, USB 2.0, and RS-232 signals over a Gigabit network in real-time. This allows placing critical hardware in secure, remote locations without compromising user experience.Flexible Media Options
Agility offers both CATx and SFP connections for fiber extension. Use the CATx interface for up to 100 meters or extend the range via a Gigabit Ethernet switch. SFP ports support distances up to 500 m over multimode and up to 10 km over singlemode.
Pixel-Perfect Video
Agility delivers pixel-perfect HD video and peripheral signals. Available models include Single Link (up to 1920x1200), Dual Head DVI (2x 1920x1200), and Dual Link DVI (up to 2560x1600).
Teaming for Redundancy and Aggregation
Supports two independent 1GB Ethernet connections for redundancy or bandwidth aggregation. Maintains 60 fps at 1920 x 1200/1080p or 30 fps with dual displays. Ideal for graphics-intensive applications.
USB 2.0 and Security
Supports USB devices from keyboards to graphic tablets. Option to disable non-HID devices for enhanced security.
Out-of-Band Remote Access
The ACR1012A-T model offers an additional RJ-45 port for BIOS-level access via VNC or Java. Reduces downtime and maintenance costs.
Technical Data:
- Range: - CATx: up to 100 m
- Maximum resolution: 2560x1600 (Dual Link DVI) or 1920x1200 (Single Link DVI)
- Supported signals: DVI-D, USB HID, USB 2.0, RS-232, bidirectional audio
- Multimode: up to 500 m
- Singlemode: up to 10 km
- IP: unlimited range
Connections:
- ACR1000A-T-R2: (1) DVI-D, (2) 3.5 mm audio, (1) USB Type B, (1) RS-232, (1) RJ-45, (1) SFP slot
- ACR1002A-T/ACR1020A-T: (2) DVI-D, (2) 3.5 mm audio, (1) USB Type B, (1) RS-232, (1) RJ-45, (1) SFP slot
- ACR1012A-T: (2) DVI-D (1x Dual Link or 2x Single Link), (1) 3.5 mm input, (1) 3.5 mm output, (1) USB Type B, (1) RS-232, (1) RJ-45, (1) SFP slot, (1) RJ-45 management
Dimensions:
- Transmitter and receiver: 4.5 H x 20.1 W x 12.2 D cm
- Weight: 0.75 kg
- TAA compliant: Yes
Questions & answers
What is the delivery time of BlackBox ACR1012A-T ServSwitch Agility Transmitter, Dual Graphics, VNC?
The article BlackBox ACR1012A-T ServSwitch Agility Transmitter, Dual Graphics, VNC is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox ACR1012A-T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox ACR1012A-T ServSwitch Agility Transmitter, Dual Graphics, VNC always at the best possible price. We can give you a discount of 2% on BlackBox ACR1012A-T ServSwitch Agility Transmitter, Dual Graphics, VNC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of BlackBox ACR1012A-T ServSwitch Agility Transmitter, Dual Graphics, VNC we can offer you a price of 2.110,10 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
