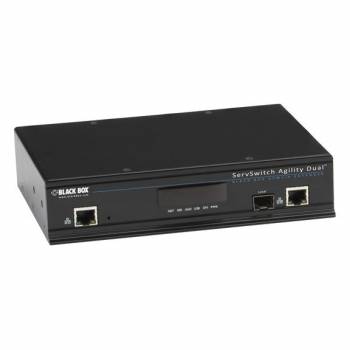

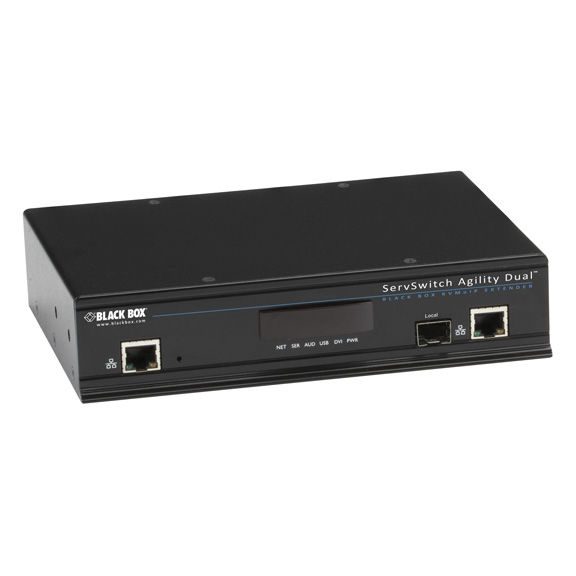

BlackBox ACR1002A-T ServSwitch Agility DL transmitter
|
1.844,16 EUR |
|
|
( 2.194,55 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 523451 |
|---|---|
| Mfg Part No: | ACR1002A-T |
| UPC/EAN: | 00822088067979 |
| Weight: | 2.3 kg |
Product information for BlackBox ACR1002A-T:
Flexible extension of DVI-D, USB, audio, and serial signals via direct connect or IP networks:
- Dual CATx/SFP interfaces for flexibility in media connections, with redundancy or bandwidth aggregation
- Range of up to 100 m over direct CATx connection, 10 km over fiber, or unlimited over standard IP networks
- Supports DVI-D video, USB HID, USB 2.0, RS-232 serial, and bidirectional audio signals
- Models with Single Link DVI (1920x1200), Dual Head DVI (2x 1920x1200/1080p), and Dual Link DVI (2560x1600/2kx2k)
- Lossless compression, low latency, pixel-perfect video and control
- Emulation for keyboard/mouse and USB HIDs like touchscreens or storage devices
- Fanless design for quiet operation
- ACR1012A-T provides out-of-band access down to the BIOS level
- Plug-and-play installation
- Easy expansion to a KVM matrix
Description:
The Agility Extender allows for the extension of DVI video, audio, USB, and RS-232 signals over a Gigabit network in real-time, enabling critical hardware to be located in secure remote environments without affecting the user experience.The extender offers flexible media connection options, supporting both CATx and SFP fiber connections. Models support different DVI standards, ranging from Single Link DVI to Dual Link DVI, with resolutions up to 2560x1600.
Technical Data:
- Supported signals: DVI-D, USB HID, USB 2.0, RS-232 serial, bidirectional audio
- Range: - CATx: up to 100 m
- Maximum resolution: 2560x1600 (Dual Link DVI) or 1920x1200 (Single Link DVI)
- Models: - ACR1000A-R2: Single Link DVI, up to 1920x1200
- ACR1000A-T-R2: - Video: (1) DVI-D female
- ACR1002A-T/ACR1020A-T: - Video: (2) DVI-D female
- ACR1012A-T: - Video: (2) DVI-D (Dual Link or 2x Single Link)
- Transmitter and Receiver: 4.5 H x 20.1 W x 12.2 D cm
- Weight: 0.75 kg
- TAA compliant: Yes
- Multimode fiber: up to 500 m
- Singlemode fiber: up to 10 km
- IP: unlimited range over IP networks
- ACR1020A: Dual Head DVI, two channels at 1920x1200
- ACR1002A/ACR1012A-T: Dual Link DVI, up to 2560x1600 or two Full-HD channels
Connections:
- Audio: (2) 3.5mm jacks
- USB: (1) USB Type B
- Serial: (1) RS-232 DB9
- Network: (1) RJ-45, (1) SFP slot
- Audio: (2) 3.5mm jacks
- USB: (1) USB Type B
- Serial: (1) RS-232 DB9
- Network: (1) RJ-45, (1) SFP slot
- Audio: (1) 3.5mm input, (1) 3.5mm output
- USB: (1) USB Type B
- Serial: (1) RS-232 DB9
- Network: (1) RJ-45, (1) SFP slot
- Management: (1) RJ-45 for remote access
Dimensions:
