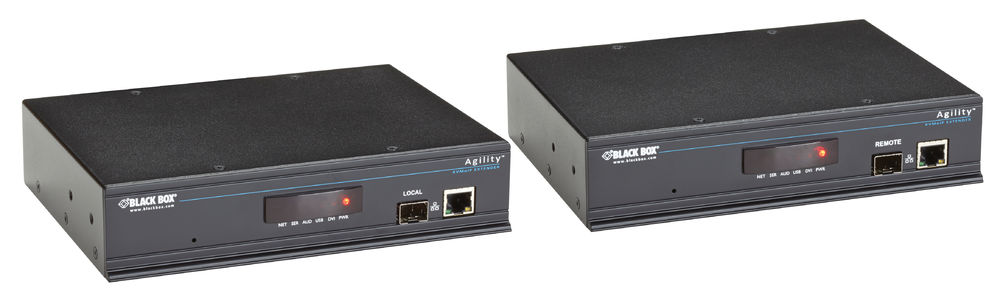

BlackBox ACR1000A-R2
ServSwitch Agility Extender Kit
|
3.368,64 EUR |
|
|
( 4.008,68 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 888226 |
|---|---|
| Mfg Part No: | ACR1000A-R2 |
| UPC/EAN: | 00822088001324 |
| Weight: | 3.76 kg |
Further KVM-Extender from BlackBoxFurther products in category KVM-Extender
All products of BlackBox
Product information for BlackBox ACR1000A-R2:
Agility DVI, USB, and Audio Extender over IP
Flexible extension of DVI-D, USB, audio, and serial signals over direct connect or IP networks:
Agility extenders are available in various models supporting different video resolutions, from Single Link DVI up to 1920x1200/1080p to Dual Link DVI with 2560x1600 or two Full HD channels. The devices can also be configured in redundant setups or to aggregate bandwidth, ensuring the highest video quality for demanding applications.
Flexible extension of DVI-D, USB, audio, and serial signals over direct connect or IP networks:
- Dual CATx/SFP connection interfaces provide flexibility in connection media, offering hot redundancy or bandwidth aggregation
- Ranges up to 100 m over direct CATx connection, 10 km over fiber, or unlimited over a standard IP network
- Supports DVI-D video, USB HID, USB 2.0, serial, and bidirectional analog audio signals
- Models with Single Link DVI (1920x1200), Dual Head DVI (2x 1920x1200/1080p), and Dual Link DVI (2560x1600/2kx2k)
- Lossless compression, low latency, pixel-perfect video and control
- Emulation for keyboard/mouse and other USB HIDs like touchscreens or storage devices
- Fanless design for quiet operation
- ACR1012A-T provides out-of-band access to the connected computer down to the BIOS level
- Plug-and-play installation
- Simple upgrade to a KVM matrix
Description:
The Agility Extender provides a flexible, high-performance solution for extending DVI video, audio, USB, and RS-232 signals over a Gigabit IP network in real time. This enables you to place critical hardware components in a secure, climate-controlled environment away from the workstation while maintaining a seamless desktop experience. With dual CATx and SFP interfaces, the system is flexible, supporting direct connections via CATx cables, fiber, or IP networks for unlimited range.Agility extenders are available in various models supporting different video resolutions, from Single Link DVI up to 1920x1200/1080p to Dual Link DVI with 2560x1600 or two Full HD channels. The devices can also be configured in redundant setups or to aggregate bandwidth, ensuring the highest video quality for demanding applications.
Technical data:
- Supported signals: DVI-D video, USB HID, USB 2.0, RS-232 serial, bidirectional audio
- Range: - CATx: up to 100 m
- Resolution: Up to 2560x1600 (Dual Link DVI) or 1920x1200/1080p (Single Link DVI)
- Supported models: - ACR1000A-R2: Single Link DVI, up to 1920x1200/1080p
- Controls: Intelligent EDID management, fanless operation
- Connections: - CATx or fiber (SFP) for flexible network connections
- (1) Transmitter
- (1) Receiver
- (2) Power supplies
- (2) 1.8 m power cables
- (1) 1.6 m combo DVI-D and USB cable
- (2) 3 m 3.5 mm audio cables
- (1) 2 m serial null-modem cable (upgrade
- Multimode fiber: up to 500 m
- Singlemode fiber: up to 10 km
- Over IP: unlimited with Ethernet switches (100 m per segment)
- ACR1020A: Dual Head DVI, two channels of 1920x1200/1080p
- ACR1002A/ACR1012A-T: Dual Link DVI up to 2560x1600 or two Full HD channels
- Supports teaming for redundancy or bandwidth aggregation
- USB 2.0 interface for peripherals like mouse, keyboard, touchscreens, and storage devices
Package contents:
ACR1000A-R2/ACR1002A/ACR1020A:Questions & answers
What is the delivery time of BlackBox ACR1000A-R2 ServSwitch Agility Extender Kit?
The article BlackBox ACR1000A-R2 ServSwitch Agility Extender Kit is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox ACR1000A-R2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox ACR1000A-R2 ServSwitch Agility Extender Kit always at the best possible price. We can give you a discount of 2% on BlackBox ACR1000A-R2 ServSwitch Agility Extender Kit if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
