BlackBox ACR1000-12V5-CBL3M 12VDC/5VDC POWER CONVERTER CABLE TO 3 PIN - 3M

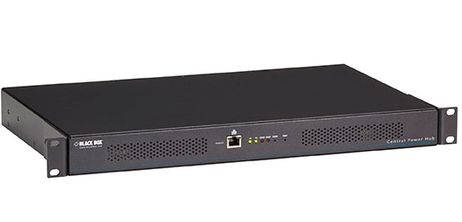

Central Power Hub

Power Distribution Hub for high-performance KVM applications:

• Power Distribution Unit (PDU) for use with high-performance Black Box KVM products
• Central power supply for 5 V or 12 V DC KVM switches and extenders with up to 20 watts per port
• More efficient and reliable solution for ensuring availability as your system grows, without additional power supplies
• Secure web UI for configuration and monitoring of system status
• Maximum load capacity when the system is equipped with a second 600 kHz power supply
• Professional installation with 8 or 16 lockable 3-pin DC connectors in just 1 RU
• Available with 8 or 16 independently controlled 12 V outputs
• Use 12 V-to-5 V converter cables for 5 VDC KVM devices or 3-pin lockable cables for 12 VDC KVM devices
• API control support for third-party products

Description:

The Central Power Hub (CPH) offers a simple solution for managing the power supply of your KVM systems in one central location. The hub provides 8 or 16 power outputs, delivering the necessary power as your facility grows. The power distribution units come with a single power supply, with an option to add a second unit for full redundancy. The CPH supports 5 VDC and 12 VDC devices within a compact 1U rack-mountable chassis, ensuring space-saving installation.

The power output connections are lockable to prevent accidental disconnection, with each output delivering up to 20 watts of power. Hot-swappable power modules enable uninterrupted operation during maintenance or upgrades.

Protection:

The system protects power signal integrity, ensures safety, and guarantees a stable power supply. Upon startup, the hub checks the power modules and sequentially activates the outputs to avoid overloading. Protective mechanisms ensure connected devices do not excessively draw power.

Remote Management:

The Central Power Hub can be monitored and controlled via a web interface. Key parameters such as temperature, fan speed, and power consumption can be monitored. Each output can be controlled individually.

Compatible Products:

• KVM Agility Central Power Hub Power Supply (ACR1000-CPH-PS)
• 12/5 VDC Power Converter Cable to 3-pin (ACR1000-12V5-CBL2M)
• 3-pin Lockable Power Cable (ACR1000-3PL-CBL2M)
• Agility IP-based KVM Extender Unit (ACR1000A-R2, ACR1002A, ACR1012A)
• Agility IP-based KVM Switching Controller (ACR1000-CTL-24/48/96/192/288/ULT)
• DCX 3000 KVM Switch Units (DCX3000, DCX3000-DVR)
• Wizard DVI KVM Switches (K2004A, KV2004A, KV2204A, KV2304A, KV2404A)
• Wizard VGA KVM Switches (KV3004A, KV3204A, KV3304A, KV3404A)
• LRX KVM Extender DVI, USB, Audio, and Serial over CATx (ACU5700A)
• DisplayPort CATx Extender (ACU5800A)
• 4-Port HDMI Distribution Hub (AVU8004A)
• Wizard CATx Extender (ACU5501A, ACU5502A-R2, ACU5520A, ACU5051A, ACU5052A, ACU5250A-R2, ACU5122A, ACU5142A,
