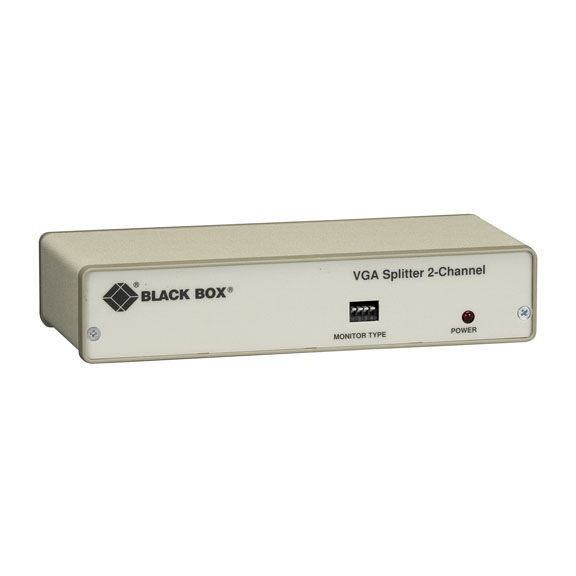

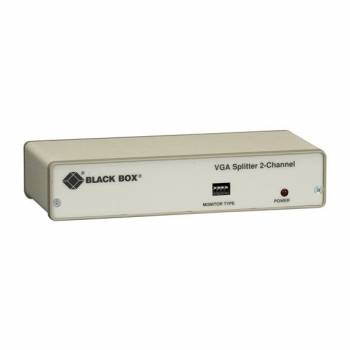

BlackBox AC056AE-R4
VGA video splitter 2 port

VGA Video Splitter

Connect multiple monitors to a single PC with our best-selling splitters:

• Extend VGA up to 75 meters
• Ideal for displays in demonstrations, classrooms, and even manufacturing facilities
• Cascade to add more monitors
• Available with 2 to 4 ports
• 300 MHz bandwidth
• Warranty: 3 years Double Diamond™ (Standard)

Description:

The VGA Video Splitter allows you to easily distribute video content from a single PC to multiple monitors. This splitter is perfect for use in classrooms, demonstrations, or even on the factory floor where the CPU can be stored in a separate room while important information is sent to monitors. A single splitter can transmit video to up to 4 monitors as far as 75 meters away. If you cascade multiple splitters, you can connect as many monitors as necessary.

The 300 MHz bandwidth ensures clear, sharp images at any resolution—whether VGA, SVGA, or XGA®. Setup is simple: Just connect the monitor cables to the splitter and flip a few DIP switches, and you’re ready to project your PC’s screen to multiple monitors.

Typical applications:

The uses for the VGA Video Splitter are virtually limitless, but some applications are especially popular:

• On factory floors, where it’s unsafe for CPUs but workers need information. With a splitter, you can distribute data to workstations while keeping CPUs safe in a separate room.
• In brokerage firms, stock exchanges, and trading offices—a splitter allows you to run real-time ticker information across multiple monitors, while another splitter shows up-to-the-minute business news on others.
• For CCTV monitoring in corporate buildings, department stores, hotels, entertainment venues, and stadiums.
• Education and training—a splitter helps you do more with video in classrooms or for business training and presentations.
• Trade shows—create engaging video kiosks or video walls using a splitter to connect multiple VGA screens.
• Digital signage—use VGA monitors to create video signage that enhances internal and external communications.

Technical data:

• Controls: Monitor type selection: 4-position front-panel DIP switch
• Connectors: VGA input and outputs to monitors: HD15 F; Power input: 2.5-mm subminiature phone jack
• Power supply:
- AC056AE-R4–AC057AE-R4: 230 VAC, 50 Hz, external power supply
- AC056A-R4-AC057A-R4: Input: 115 VAC, 60 Hz

• Dimensions:
- AC056AE-R4: 3.8 H x 18.4 W x 8.3 D cm
- All other models: 6.4 H x 18.4 W x 8.3 D cm
