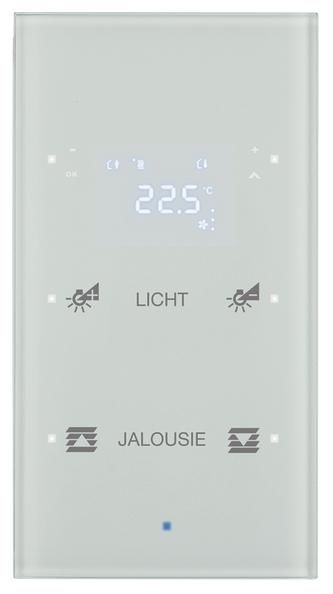

Berker 75642130 Glass Sensor 2-fold, m. Temperature control glass, polar white content_copy

Glass sensor 2-way with temperature controller TS sensor configured, polar white. Glass sensor - configured 2-way with temperature controller with integrated bus coupler. Operation by lightly touching the sensor surfaces on the white LEDs. For switching, touch, dimming, blind, temperature controller functions. Single and double surface operation can be parameterized. Extension for light scene touch sensor. Recall, setting and saving of 8 light scenes. For heating and/or cooling operation with/without additional level. Display menu scope for operation can be parameterized, controller operating modes: comfort, standby, night and frost/heat protection operation. LED display with symbol representation, display of operating mode, controller lock, room, outside temperature, time (timer required). With 2 additional display sensor surfaces. Additional connection for external temperature sensor, can be used as a controller extension. Temperature control via on-site measurement or measured value via object. Value transmitter for dimming, position, brightness and temperature values 1 and 2 bytes. Operation on unchoked output of the KNX power supply possible (note current consumption), separate power supply required. Bus connection via connection terminal. For vertical installation. For installation, always use the flat 2-way installation box. With adapter ring to protect against dismantling and to create shadow gaps. With blue operating LED and 4 white status LEDs. Only suitable for KNX!
Type: 75642130
