Berker 29809909 Radio Touch with speaker DAB+S.1/Bx pws matt content_copy

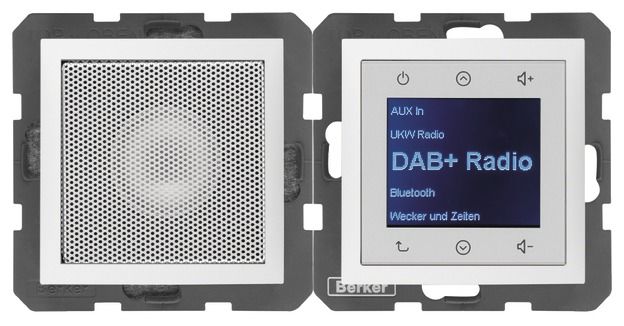

Radio Touch with loudspeaker DAB+ S.1/Bx polar white matt. Radio Touch DAB+ with loudspeaker UP for receiving digital DAB+ or analogue FM stations with RDS display for installation in two flush-mounted device boxes in accordance with DIN 49073 or surface-mounted housing. The set consists of radio module, loudspeaker module, radio attachment, loudspeaker centre piece and is suitable for indoor use. Radio module connection: operating voltage, extension input for switching on/off, 2x loudspeakers for right/left, AUX IN for external audio sources, wire antenna connection and radio attachment socket for the touch display. Loudspeaker module: a loudspeaker with pre-assembled cable for the radio module. Radio Touch functions: 6 symbol buttons for switching on/off, going back to the operating level, scrolling/value up/down and volume +/-. The symbol button functions or the display operating functions enable the recall of station memories (8 stations each for FM or DAB+), time/date display, alarm functions, timer/countdown, language, lighting, AUX or sound. The buttons are used to start the station search. The radio has a special hotel mode in which the operation of the device is restricted. Note: The necessary device sockets or AP housing and the design frame are not included. A second loudspeaker and a throw antenna (recommended length = 75 cm for FM, length = 40 cm for DAB+) to improve reception can be connected optionally.
Type: 29809909
