Benq 9E.04701.001 SIGNAL SHUTTLE

Your rating:
Average rating
product review for Benq 9E.04701.001 SIGNAL SHUTTLE
( 4 / 5 ) 1 ratings

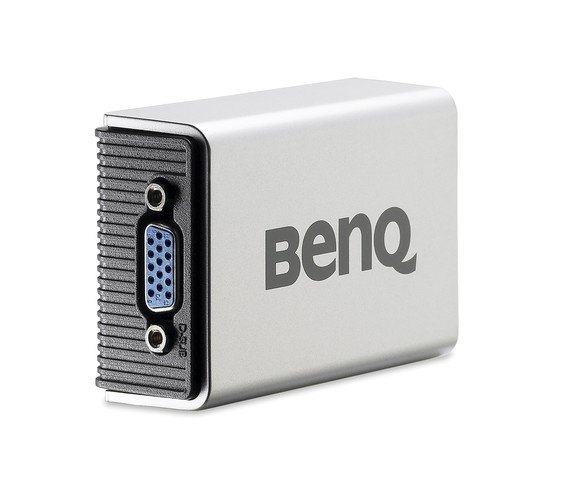

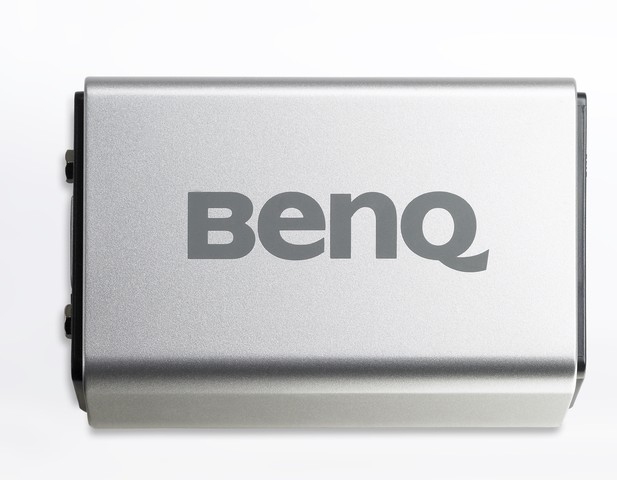

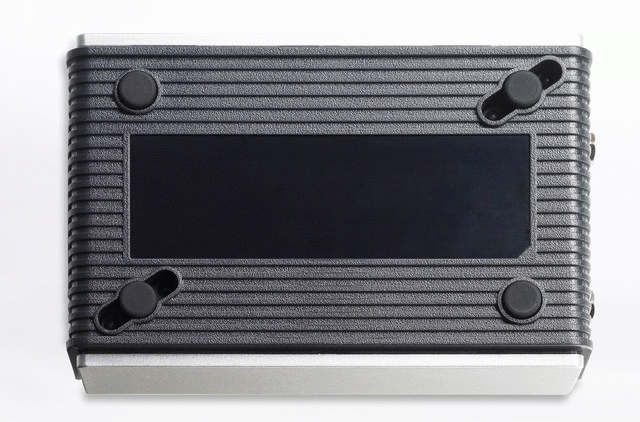

Benq 9E.04701.001
This image may differ from the desired article.
Benq 9E.04701.001Benq 9E.04701.001Benq 9E.04701.001Benq 9E.04701.001Benq 9E.04701.001
161,32 EUR
( 191,97 EUR incl. VAT )
≈ £135.02  |  ≈ $177.29
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Benq 9E.04701.001 SIGNAL SHUTTLE
Datasheet:file_download Download
Lieske Part No.:564191
Mfg Part No: 9E.04701.001
UPC/EAN: 4718755191442
Weight:0.12 kg
Type:CABL

Product information for Benq 9E.04701.001:

The BenQ Signal Shuttle (type CABL, manufacturer number 9E.04701.001) is a cabled transmission device for signal extension, specifically designed for use with the SP830 and SP831 projectors. The device functions as an interface adapter, transmitting a video signal over longer distances, with signal input via a D-Sub 15-pin connector (female) and output via an RJ-45 plug. The transmission technology is based on a cabled method that enables the use of LAN cables, with CAT.6 cables having a bandwidth of 1 GHz recommended to ensure stable and latency-free signal transmission over up to 100 meters.

Applications

The Signal Shuttle is intended for professional applications in the field of projection technology, particularly in rooms where the projector cannot be placed directly next to the signal source device (e.g. computer, media player). It enables separation of the signal source and projector, making installation more flexible. Typical use cases include conference rooms, schools, universities, or event spaces, where signal cables must be routed over long distances without compromising signal quality.

Functions and Equipment in Detail

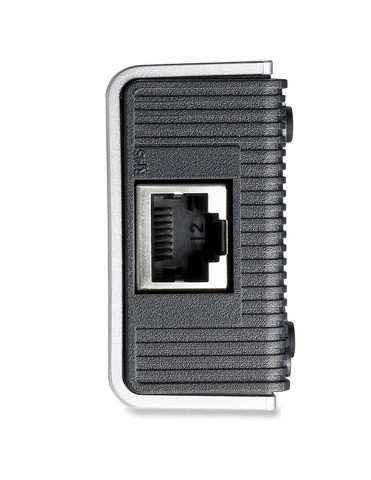

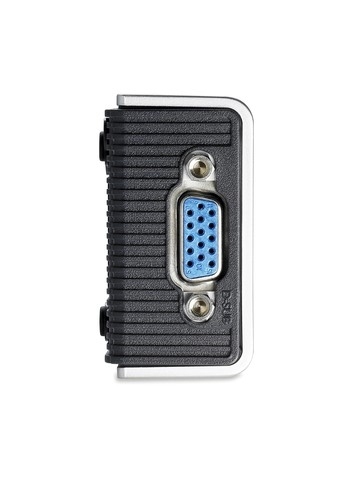

The device features a compact design with dimensions of 78 mm (width) × 51 mm (depth) × 27 mm (height) and a weight of 70 g, making it easy to handle and space-saving. The host interface is an RJ-45 connector, intended for connection to a network cable. The input side is supplied via a D-Sub 15-pin connector (female), commonly used for VGA signals. The maximum transmission distance is 100 meters, with the use of CAT.6 cables recommended to ensure signal integrity.

Technology Explained Simply

The Signal Shuttle operates as a signal amplifier and converter, transforming the analog VGA signal (via D-Sub 15-pin) into a format transmittable over LAN cables. This enables transmission over longer distances without signal attenuation or distortion. The use of RJ-45 connectors allows the use of standardized network cables, which are often already present in many IT infrastructures. Transmission occurs via a cabled method, requiring no wireless transmission or additional power supply – power is supplied via the network cable (PoE, Power over Ethernet), although the sources do not explicitly confirm this, the use of RJ-45 connectors and the mention of “100m long distance transmission” implicitly suggest PoE support. A maximum range of 100 meters is guaranteed when using CAT.6 cables.

Compatibility and Accessories

The device is specifically developed for the SP830 and SP831 projectors from BenQ and is offered as accessory for these models. It is not intended for other projector models unless they support the same interface configuration. Compatibility is limited to the mentioned models, and use with other devices is not guaranteed. As accessory, the use of CAT.6 LAN cables is recommended to achieve maximum range and signal quality.

Mounting and Installation

Installation involves connecting the Signal Shuttle to the signal source via the D-Sub 15-pin connector and to the projector via the RJ-45 cable. The connection is made using a standardized network cable routed between the Signal Shuttle and the projector. According to the manufacturer, setup is quick and simple, requiring no additional configuration or software. No special tools or additional components are required. Physical mounting is typically done on a stable surface or in a rack, with the compact design allowing flexible placement.

Advantages in Operation

Using the Signal Shuttle enables flexible and neat cable routing, as signal cables can be routed over long distances without signal degradation. The use of standardized LAN cables reduces the number of required cable types and simplifies maintenance. The compact design and low weight facilitate installation and placement. The maximum range of 100 meters expands usability in large rooms or across multiple rooms. Compatibility with SP830/SP831 models ensures direct integration into existing projector systems.

Other features
Dimensions (WxDxH)78 x 51 x 27 mm
Ports & interfaces
Connectivity technologyWired
Host interfaceRJ-45
Weight & dimensions
Width78 mm
Depth51 mm
Height27 mm
Weight70 g


Product data sheet
Datasheet for Benq 9E.04701.001, EAN: 4718755191442

Questions & answers

What is the delivery time of Benq 9E.04701.001 SIGNAL SHUTTLE?

The article Benq 9E.04701.001 SIGNAL SHUTTLE is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Benq 9E.04701.001 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Benq 9E.04701.001 SIGNAL SHUTTLE always at the best possible price. We can give you a discount of 2% on Benq 9E.04701.001 SIGNAL SHUTTLE if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
