Beha 4560615 AMP-320-EUR 600 A AC/DC TRMS clamp with motor test function

Your rating:
Average rating
product review for Beha 4560615 AMP-320-EUR 600 A AC/DC TRMS clamp with motor test function
( 4.2 / 5 ) 6 ratings
Beha 4560615

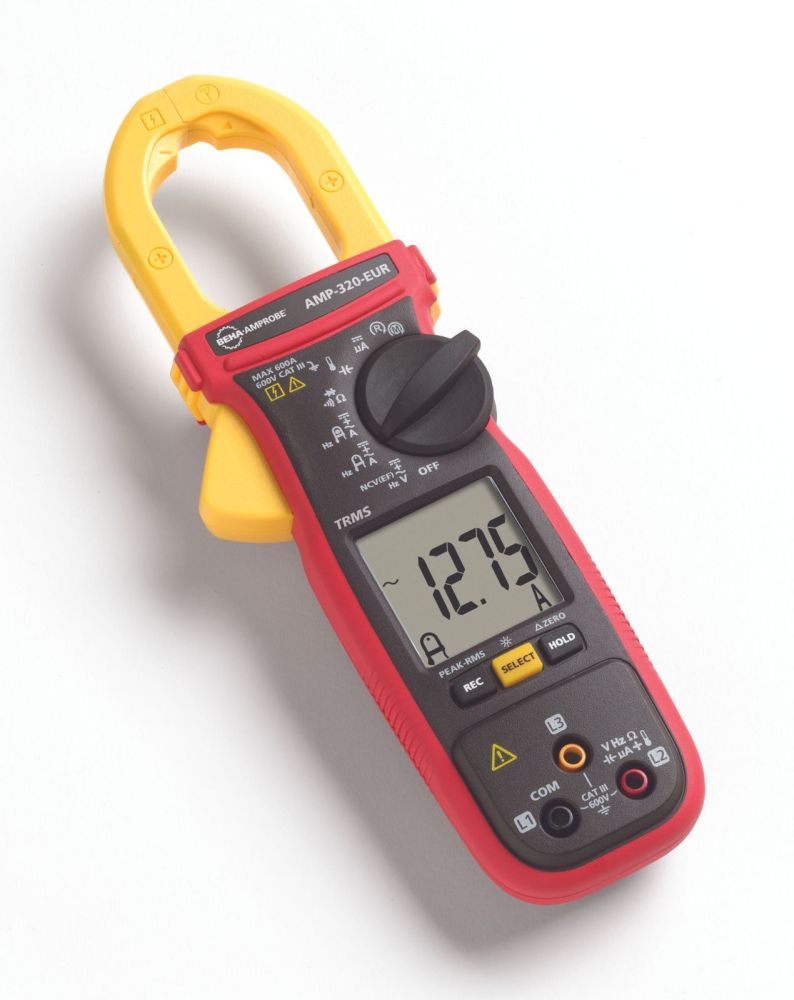

This image may differ from the desired article.
Beha 4560615Beha 4560615
266,00 EUR 269,28 EUR
( 316,54 EUR incl. VAT )
≈ £222.64  |  ≈ $292.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Beha 4560615 AMP-320-EUR 600 A AC/DC TRMS clamp with motor test function
Lieske Part No.:265617
Mfg Part No: 4560615
UPC/EAN: 0095969770934
Weight:0.62 kg
Type:AMP-320-EUR

Product information for Beha 4560615:

The Beha AMP-320-EUR is a DC/AC current clamp, specifically designed for the maintenance of electric motors. The device enables precise true RMS measurements and is used for testing motor rotation direction and rotating field direction in 3-phase systems. It is designed for measuring DC and AC current in the range of 0.00 to 600 A, as well as DC and AC voltage from 0.00 to 600 V. The clamp opening is 35 mm, allowing use on conductors with a diameter up to 35 mm. The clamp features inrush current monitoring during motor start-up to analyze starting current and detect potential faults early.

Applications

The AMP-320-EUR is primarily designed for the maintenance and diagnosis of electric motors in industrial and commercial facilities. It is suitable for checking electrical parameters during operation and during commissioning. The rotation direction and rotating field testing functions support rapid identification of faults in motor control. The clamp is also suitable for testing frequency converters, as it features a low-pass filter that reduces interference from high frequencies. Temperature measurement with switching between °C and °F allows monitoring of motor and ambient temperatures.

Functions and Equipment in Detail

The device enables microampere measurements, for example on flame sensors, making it usable for applications in fire and gas monitoring. Capacitance measurement on start-up and running capacitors of electric motors supports diagnosis of capacitor wear. The Amp-Tip function allows current measurement at hard-to-reach locations by combining the clamp with a special probe. The safety specification CAT IV 600 V ensures safe use in high-voltage environments, such as those found in industrial networks.

Technology Explained Simply

True RMS measurement ensures that even non-sinusoidal AC currents are accurately captured, which is important for modern frequency converters and electronic loads. The low-pass filter reduces high-frequency interference that can occur during measurements on frequency converters, enabling more stable and accurate readings. Temperature measurement is performed via an integrated thermocouple input, with the display switchable between Celsius and Fahrenheit. The 35 mm clamp opening is sufficient for most industrial conductors and cables in the intended application.

Compatibility and Accessories

The AMP-320-EUR is designed for use with standard network cables and electrical conductors. The clamp is designed for use in electrical installations with a safety class CAT IV 600 V, ensuring high safety during measurements in main distribution boards and industrial networks.

Mounting and Installation

The clamp is simply closed around the conductor to be measured. No additional mounting or installation is required. Operation is via buttons on the front of the device, with the display showing measurement values in real time. The clamp is compact and allows quick measurements without additional tools.

Operational Advantages

The combination of true RMS measurement, rotating field testing, temperature measurement, and capacitance measurement in a single device reduces the number of required measuring instruments. Inrush current monitoring during motor start-up enables precise analysis of start-up behavior. The CAT IV 600 V specification ensures safe use in heavily loaded electrical installations. The Amp-Tip function extends usability to hard-to-reach measurement points.

Protection Rating

The clamp is designed for use in electrical installations with a safety class CAT IV 600 V, ensuring safe operation in high-voltage environments. The low-pass filter reduces high-frequency interference that can occur during measurements on frequency converters, enabling more stable and accurate readings. Temperature measurement is performed via an integrated thermocouple input, with the display switchable between Celsius and Fahrenheit. The 35 mm clamp opening is sufficient for most industrial conductors and cables in the intended application.

Compatibility and Accessories

The AMP-320-EUR is designed for use with standard network cables and electrical conductors. The clamp is designed for use in electrical installations with a safety class CAT IV 600 V, ensuring high safety during measurements in main distribution boards and industrial networks.

Mounting and Installation

The clamp is simply closed around the conductor to be measured. No additional mounting or installation is required. Operation is via buttons on the front of the device, with the display showing measurement values in real time. The clamp is compact and allows quick measurements without additional tools.

Operational Advantages

The combination of true RMS measurement, rotating field testing, temperature measurement, and capacitance measurement in a single device reduces the number of required measuring instruments. Inrush current monitoring during motor start-up enables precise analysis of start-up behavior. The CAT IV 600 V specification ensures safe use in heavily loaded electrical installations. The Amp-Tip function extends usability to hard-to-reach measurement points.

Note: Batteries are not included in the delivery scope.

General
Current measurement range0.00 to 600 A
Voltage measurement range0.00 to 600 V
Pliers opening35 mm
Temperature measurement°C or °F
Safety specificationCAT IV 600 V
True RMS measurementYes
Field rotation testYes
Motor rotation direction checkYes
Inrush current monitoringYes
Capacitance measurementYes
Microampere measurementYes
Amp-Tip functionYes
Low-pass filterYes
