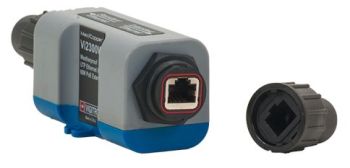

Barox VI-UTP-2300WP UTP Extender IP67 1xIP and PoE+ over UTP cable
|
496,14 EUR 512,54 EUR |
|
|
( 590,41 EUR incl. VAT ) ≈ £415.27 | ≈ $555.18 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 739878 |
| Mfg Part No: | VI-UTP-2300WP |
| Weight: | 0.38 kg |
Product information for Barox VI-UTP-2300WP:
The Barox VI-UTP-2300WP is a media converter for extending Ethernet transmissions over existing UTP infrastructures. It serves as an Ethernet extender and is specifically used in the transmission of IP cameras or VoIP devices to extend the reach of network cables. The device is designed for mounting on a DIN rail and enables data transmission over long distances without requiring additional network infrastructure. It is manageable, meaning it provides an interface for monitoring and configuration, yet does not require IP settings or configurations, as it operates transparently within the existing network.
Applications
The VI-UTP-2300WP is primarily used in surveillance technology, especially for connecting Mega-Pixel IP cameras to a central network. It enables the extension of Ethernet connections over existing UTP cables, eliminating the need to install additional switches or cables. Its use is ideal in buildings with pre-existing cabling infrastructure where extending reach without new cabling is desired. The devices can be used in combination with other models such as the Vi230xxA or Vi25xx Extended Midspans to create a flexible network architecture.
Functions and Features in Detail
The device features two RJ45 ports: one for the standard Ethernet connection (e.g., to a switch or NVR) and one for the extended Ethernet connection over the UTP cable. It supports transmission of 10BaseT signals up to a distance of 914 meters (3,000 feet) and 100BaseT signals up to 640 meters (2,100 feet). Transmission occurs in full-duplex mode at speeds of 10 or 100 Mb/s, minimizing latency and transmission errors. The technology optimally utilizes the bandwidth of existing UTP cables without requiring additional frequency bands or special cables.
Technology Explained Simply
The VI-UTP-2300WP operates as a transceiver, i.e., a transmitter-receiver device, installed on the side of the IP camera. It converts the Ethernet signal into a format suitable for UTP extension, ensuring stable data transmission over long distances. The use of PoE+ (Power over Ethernet Plus) is possible, with power supplied over the network cable. This is particularly advantageous as it eliminates the need for a separate power supply for the camera. The devices are designed to require no configuration, making them transparent for operation.
Compatibility and Accessories
The VI-UTP-2300WP can be used in combination with models Vi230xxA or Vi25xx Extended Midspans to create an extended network structure. This combination allows multiple remote devices to be connected to a central network. The use of Cat5/6 cables is recommended, with a maximum cable length of 100 meters between the device and the IP camera. The extension over the UTP cable is achieved via the Extended Ethernet port. It is important that the cable connection is secure and waterproof, so the rubber grommet must be securely tightened during installation.
Mounting and Installation
The device is mounted on a DIN rail, enabling easy integration into existing enclosures. Installation should follow the manufacturer’s instructions, with special attention paid to correct cable connections. The rubber grommet must be tightened so that no gaps exist between the cable and the mounting hole to ensure waterproofing. The devices must not be installed in areas with ambient temperatures exceeding 75 °C, and they should be avoided near heat sources such as radiators or other devices that emit heat.
eOperational Advantages
Using the VI-UTP-2300WP reduces the need for additional network switches and cables, lowering installation costs. The transparent network integration means no changes to the existing network structure are required. The use of PoE+ enables simplified power supply for connected devices. The extended reach of up to 914 meters for 10BaseT and 640 meters for 100BaseT increases flexibility in planning surveillance systems. The devices are suitable for industrial and outdoor environments due to their robust construction and DIN rail mounting, which ensures secure fixation. However, note that the device does not have an integrated power supply and requires an external power source. The product is delivered without additional accessories such as cables or adapters.
Applications
The VI-UTP-2300WP is primarily used in surveillance technology, especially for connecting Mega-Pixel IP cameras to a central network. It enables the extension of Ethernet connections over existing UTP cables, eliminating the need to install additional switches or cables. Its use is ideal in buildings with pre-existing cabling infrastructure where extending reach without new cabling is desired. The devices can be used in combination with other models such as the Vi230xxA or Vi25xx Extended Midspans to create a flexible network architecture.
Functions and Features in Detail
The device features two RJ45 ports: one for the standard Ethernet connection (e.g., to a switch or NVR) and one for the extended Ethernet connection over the UTP cable. It supports transmission of 10BaseT signals up to a distance of 914 meters (3,000 feet) and 100BaseT signals up to 640 meters (2,100 feet). Transmission occurs in full-duplex mode at speeds of 10 or 100 Mb/s, minimizing latency and transmission errors. The technology optimally utilizes the bandwidth of existing UTP cables without requiring additional frequency bands or special cables.
Technology Explained Simply
The VI-UTP-2300WP operates as a transceiver, i.e., a transmitter-receiver device, installed on the side of the IP camera. It converts the Ethernet signal into a format suitable for UTP extension, ensuring stable data transmission over long distances. The use of PoE+ (Power over Ethernet Plus) is possible, with power supplied over the network cable. This is particularly advantageous as it eliminates the need for a separate power supply for the camera. The devices are designed to require no configuration, making them transparent for operation.
Compatibility and Accessories
The VI-UTP-2300WP can be used in combination with models Vi230xxA or Vi25xx Extended Midspans to create an extended network structure. This combination allows multiple remote devices to be connected to a central network. The use of Cat5/6 cables is recommended, with a maximum cable length of 100 meters between the device and the IP camera. The extension over the UTP cable is achieved via the Extended Ethernet port. It is important that the cable connection is secure and waterproof, so the rubber grommet must be securely tightened during installation.
Mounting and Installation
The device is mounted on a DIN rail, enabling easy integration into existing enclosures. Installation should follow the manufacturer’s instructions, with special attention paid to correct cable connections. The rubber grommet must be tightened so that no gaps exist between the cable and the mounting hole to ensure waterproofing. The devices must not be installed in areas with ambient temperatures exceeding 75 °C, and they should be avoided near heat sources such as radiators or other devices that emit heat.
eOperational Advantages
Using the VI-UTP-2300WP reduces the need for additional network switches and cables, lowering installation costs. The transparent network integration means no changes to the existing network structure are required. The use of PoE+ enables simplified power supply for connected devices. The extended reach of up to 914 meters for 10BaseT and 640 meters for 100BaseT increases flexibility in planning surveillance systems. The devices are suitable for industrial and outdoor environments due to their robust construction and DIN rail mounting, which ensures secure fixation. However, note that the device does not have an integrated power supply and requires an external power source. The product is delivered without additional accessories such as cables or adapters.
