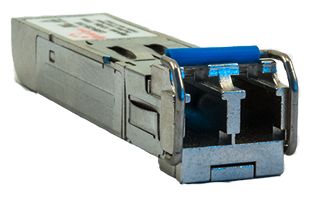

Barox SFP 1GBit/s 2xSM. Connector LC/PC Duplex 10km
|
-35% 72,50 EUR 111,93 EUR |
|
|
( 86,27 EUR incl. VAT ) ≈ £61.04 | ≈ $81.42 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2038091 |
| Mfg Part No: | AC-SFP-LX-E-10 |
| Weight: | 0.2 kg |
Product information for Barox AC-SFP-LX-E-10:
The Barox AC-SFP-LX-E-10 is an SFP transceiver for Gigabit Ethernet connections over single-mode fiber optic cable. It serves as an optical network adapter, installed in switches, routers, or other network devices with an SFP slot, enabling data transmission over fiber optic cables with a range up to 10 km. The module is designed for use in industrial and professional networks, where high reliability and operation under extreme temperatures are required.
Applications
This module is suitable for connecting network devices over long distances, particularly in infrastructures such as building cabling, industrial communication, telecommunications, or in security and surveillance systems. Due to its operating temperature range of −40 °C to +85 °C, it is also suitable for outdoor use or in harsh environments where significant temperature fluctuations occur. The use of single-mode fiber enables high bandwidth and low attenuation, which is essential for stable connections over several kilometers.
Features and Specifications in Detail
The Barox AC-SFP-LX-E-10 operates at a data rate of 1 Gbit/s and uses two single-mode fibers for bidirectional data transmission. The connection is made via an LC/PC duplex connector, designed for secure and precise connection with standard LC connectors in fiber optic cables. The center wavelength for transmission and reception is 1310 nm each, typical for 1000Base-LX transceivers, enabling efficient use of fiber optic infrastructure. The optical transmit power ranges from −9 dBm to −3 dBm, while the receiver sensitivity starts at −21 dBm, ensuring high signal quality even over long distances.
Technology Explained Simply
The transceiver converts electrical signals from the network device into optical signals transmitted over the fiber optic cable, and vice versa. The maximum transmission distance of 10 km is enabled by an optical budget of 12 dB, representing the difference between maximum transmit power and minimum sensitivity. This budget is crucial to maintain signal quality over the entire distance. The maximum input power of −3 dBm protects the receiver from overload due to excessively strong signals. The operating temperature range of −40 °C to +85 °C indicates that the module operates reliably even under extreme environmental conditions, which is important for industrial applications.
Compatibility and Accessories
The module is compatible with devices that support an SFP slot and require Gigabit Ethernet over single-mode fiber. It can be connected using standard LC/PC duplex fiber optic cables. No additional accessories are included in the delivery; in particular, cables, adapters, or extensions are not part of the package. Use with other SFP modules or types is not intended, as compatibility is limited to the specific 1000Base-LX technology.
Installation and Mounting
Installation is performed by inserting the module into the SFP slot of a compatible network device. It is important that the slot is free and the device’s power supply is active. After insertion, the module is automatically recognized, and the connection is established via the connected fiber optic cable. The connection should be made using an appropriate LC/PC duplex cable, ensuring correct polarization (transmit and receive).
Operational Advantages
Operating the Barox AC-SFP-LX-E-10 provides a reliable, high-speed connection over long distances. The wide operating temperature range allows use in harsh environments without performance degradation. The use of single-mode fibers ensures low attenuation and high bandwidth, maintaining stable network performance over several kilometers. The low power dissipation of 4 BTU/h indicates that the module operates energy-efficiently, which should be considered when planning cooling and energy consumption in data centers or industrial installations.
Protection Rating
The module itself is not specified with an IP protection rating, as it is installed as an internal adapter within a device. The protection rating of the entire device into which it is installed determines the environmental conditions. However, the operating temperature range of −40 °C to +85 °C indicates that the module is designed for use in devices that also function under extreme temperatures.
Accessories and Alternatives
Alternative products include other SFP modules designed for Gigabit Ethernet over single-mode fiber. These modules are not included in the delivery and must be purchased separately. The use of cables or adapters is not part of the delivery and must be arranged separately.
Fiber Type and Connector
The fiber type is single-mode, suitable for long transmission distances with low attenuation. The connector is LC/PC duplex, a standard for fiber optic cable connections, ensuring a secure and precise connection. The use of two fibers enables bidirectional data transmission, with one fiber for transmission and the other for reception.
Optical Performance Parameters
Optical parameters such as transmit power, sensitivity, and optical budget are critical for signal quality. The optical budget of 12 dB ensures that the signal remains strong enough over the entire 10 km distance to be correctly detected by the receiver. The maximum input power of −3 dBm protects the receiver from overload, while the minimum sensitivity of −21 dBm defines the lower limit for signal strength.
Operating Temperature
The operating temperature range of −40 °C to +85 °C indicates that the module is designed for use in harsh environments, such as industrial facilities, outdoor installations, or vehicles. This allows flexible deployment without requiring additional cooling or heating systems.
Power Dissipation
The power dissipation of 4 BTU/h corresponds to approximately 1.17 watts, indicating that the module operates energy-efficiently. This is particularly important in environments where heat generation from devices matters, such as in data centers or enclosed enclosures.
Data Rate
The data rate of 1 Gbit/s corresponds to the Gigabit Ethernet specification and enables high transmission performance for network applications requiring high bandwidth.
Center Wavelength
The center wavelength of 1310 nm is standard for 1000Base-LX transceivers and enables optimal use of single-mode fibers with low attenuation.
Maximum Transmission Distance
The maximum transmission distance of 10 km is typical for 1000Base-LX modules and enables connecting devices over long distances without additional repeaters.
Connector Type
The LC/PC duplex connector is a standard for fiber optic cable connections and ensures a secure, precise, and easy-to-handle connection.
Number of Fibers
The use of two fibers enables bidirectional data transmission, with one fiber for transmission and the other for reception.
Optical Budget
The optical budget of 12 dB is critical for signal quality over the entire distance and ensures that the signal remains strong enough after 10 km to be correctly detected by the receiver.
Sensitivity and Input Power
The sensitivity of −21 dBm and maximum input power of −3 dBm define the range within which the module can correctly receive signals without being overloaded.
Weight
The net weight is 0.015 kg, and the gross weight is 0.021 kg, indicating a compact and lightweight module that is easy to install in SFP slots.
Scope of Delivery
The delivery includes only the SFP module. No additional components such as cables, adapters, or extensions are included.
Applications
This module is suitable for connecting network devices over long distances, particularly in infrastructures such as building cabling, industrial communication, telecommunications, or in security and surveillance systems. Due to its operating temperature range of −40 °C to +85 °C, it is also suitable for outdoor use or in harsh environments where significant temperature fluctuations occur. The use of single-mode fiber enables high bandwidth and low attenuation, which is essential for stable connections over several kilometers.
Features and Specifications in Detail
The Barox AC-SFP-LX-E-10 operates at a data rate of 1 Gbit/s and uses two single-mode fibers for bidirectional data transmission. The connection is made via an LC/PC duplex connector, designed for secure and precise connection with standard LC connectors in fiber optic cables. The center wavelength for transmission and reception is 1310 nm each, typical for 1000Base-LX transceivers, enabling efficient use of fiber optic infrastructure. The optical transmit power ranges from −9 dBm to −3 dBm, while the receiver sensitivity starts at −21 dBm, ensuring high signal quality even over long distances.
Technology Explained Simply
The transceiver converts electrical signals from the network device into optical signals transmitted over the fiber optic cable, and vice versa. The maximum transmission distance of 10 km is enabled by an optical budget of 12 dB, representing the difference between maximum transmit power and minimum sensitivity. This budget is crucial to maintain signal quality over the entire distance. The maximum input power of −3 dBm protects the receiver from overload due to excessively strong signals. The operating temperature range of −40 °C to +85 °C indicates that the module operates reliably even under extreme environmental conditions, which is important for industrial applications.
Compatibility and Accessories
The module is compatible with devices that support an SFP slot and require Gigabit Ethernet over single-mode fiber. It can be connected using standard LC/PC duplex fiber optic cables. No additional accessories are included in the delivery; in particular, cables, adapters, or extensions are not part of the package. Use with other SFP modules or types is not intended, as compatibility is limited to the specific 1000Base-LX technology.
Installation and Mounting
Installation is performed by inserting the module into the SFP slot of a compatible network device. It is important that the slot is free and the device’s power supply is active. After insertion, the module is automatically recognized, and the connection is established via the connected fiber optic cable. The connection should be made using an appropriate LC/PC duplex cable, ensuring correct polarization (transmit and receive).
Operational Advantages
Operating the Barox AC-SFP-LX-E-10 provides a reliable, high-speed connection over long distances. The wide operating temperature range allows use in harsh environments without performance degradation. The use of single-mode fibers ensures low attenuation and high bandwidth, maintaining stable network performance over several kilometers. The low power dissipation of 4 BTU/h indicates that the module operates energy-efficiently, which should be considered when planning cooling and energy consumption in data centers or industrial installations.
Protection Rating
The module itself is not specified with an IP protection rating, as it is installed as an internal adapter within a device. The protection rating of the entire device into which it is installed determines the environmental conditions. However, the operating temperature range of −40 °C to +85 °C indicates that the module is designed for use in devices that also function under extreme temperatures.
Accessories and Alternatives
Alternative products include other SFP modules designed for Gigabit Ethernet over single-mode fiber. These modules are not included in the delivery and must be purchased separately. The use of cables or adapters is not part of the delivery and must be arranged separately.
Fiber Type and Connector
The fiber type is single-mode, suitable for long transmission distances with low attenuation. The connector is LC/PC duplex, a standard for fiber optic cable connections, ensuring a secure and precise connection. The use of two fibers enables bidirectional data transmission, with one fiber for transmission and the other for reception.
Optical Performance Parameters
Optical parameters such as transmit power, sensitivity, and optical budget are critical for signal quality. The optical budget of 12 dB ensures that the signal remains strong enough over the entire 10 km distance to be correctly detected by the receiver. The maximum input power of −3 dBm protects the receiver from overload, while the minimum sensitivity of −21 dBm defines the lower limit for signal strength.
Operating Temperature
The operating temperature range of −40 °C to +85 °C indicates that the module is designed for use in harsh environments, such as industrial facilities, outdoor installations, or vehicles. This allows flexible deployment without requiring additional cooling or heating systems.
Power Dissipation
The power dissipation of 4 BTU/h corresponds to approximately 1.17 watts, indicating that the module operates energy-efficiently. This is particularly important in environments where heat generation from devices matters, such as in data centers or enclosed enclosures.
Data Rate
The data rate of 1 Gbit/s corresponds to the Gigabit Ethernet specification and enables high transmission performance for network applications requiring high bandwidth.
Center Wavelength
The center wavelength of 1310 nm is standard for 1000Base-LX transceivers and enables optimal use of single-mode fibers with low attenuation.
Maximum Transmission Distance
The maximum transmission distance of 10 km is typical for 1000Base-LX modules and enables connecting devices over long distances without additional repeaters.
Connector Type
The LC/PC duplex connector is a standard for fiber optic cable connections and ensures a secure, precise, and easy-to-handle connection.
Number of Fibers
The use of two fibers enables bidirectional data transmission, with one fiber for transmission and the other for reception.
Optical Budget
The optical budget of 12 dB is critical for signal quality over the entire distance and ensures that the signal remains strong enough after 10 km to be correctly detected by the receiver.
Sensitivity and Input Power
The sensitivity of −21 dBm and maximum input power of −3 dBm define the range within which the module can correctly receive signals without being overloaded.
Weight
The net weight is 0.015 kg, and the gross weight is 0.021 kg, indicating a compact and lightweight module that is easy to install in SFP slots.
Scope of Delivery
The delivery includes only the SFP module. No additional components such as cables, adapters, or extensions are included.
Questions & answers
What is the delivery time of Barox SFP 1GBit/s 2xSM. Connector LC/PC Duplex 10km?
The article Barox SFP 1GBit/s 2xSM. Connector LC/PC Duplex 10km is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Barox AC-SFP-LX-E-10 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Barox SFP 1GBit/s 2xSM. Connector LC/PC Duplex 10km always at the best possible price. We can give you a discount of 2% on Barox SFP 1GBit/s 2xSM. Connector LC/PC Duplex 10km if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
