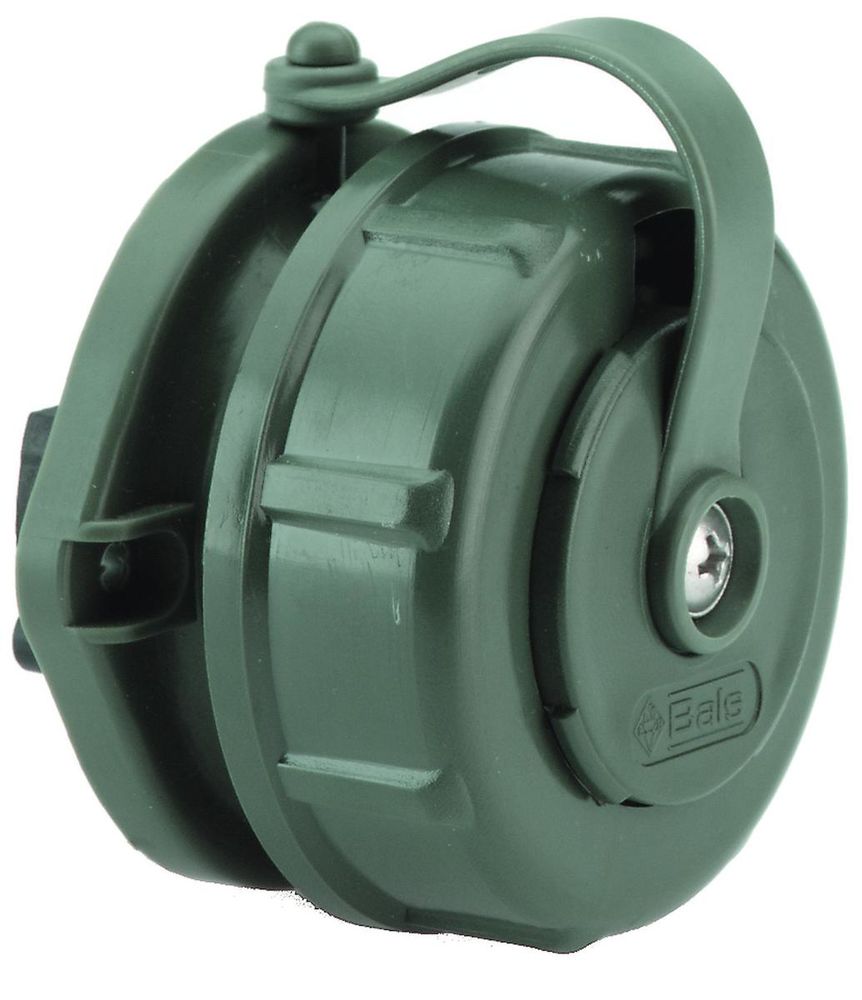

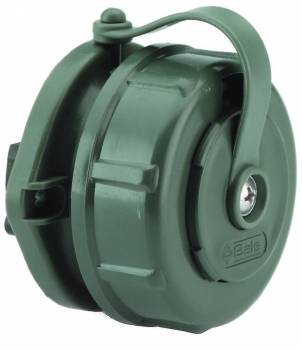

Bals 7186 Tn-SCHUKO panel socket 16A 3P 250V IP68
|
183,05 EUR |
|
|
( 217,83 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 461090 |
|---|---|
| Mfg Part No: | 7186 |
| UPC/EAN: | 4024941071864 |
| Weight: | 0 kg |
Product information for BALS 7186:
16A 3p (2P+PE) 250V (250V~) IP68
Frequency: AC
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: head screw
terminal Cable entry: other
System: Belgian/French system - Type E
Device colour: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 77 mm, device width: 72 mm, device depth: 62 mm
Flange size vertical: 65 mm, flange size horizontal: 72 mm
Drill hole spacing horizontal: 58 mm
Halogen-free: yes
Other technical properties: the connection is at the back, with centre earthing contact Belgian/French system, the bayonet cap is attached to the housing with a fastening strap
Type: 7186
Questions & answers
What is the delivery time of Bals 7186 Tn-SCHUKO panel socket 16A 3P 250V IP68?
The article Bals 7186 Tn-SCHUKO panel socket 16A 3P 250V IP68 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 7186 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 7186 Tn-SCHUKO panel socket 16A 3P 250V IP68 always at the best possible price. We can give you a discount of 2% on Bals 7186 Tn-SCHUKO panel socket 16A 3P 250V IP68 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
