BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44

Your rating:
Average rating
Rating for BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44
( 4.1 / 5 ) 9 ratings

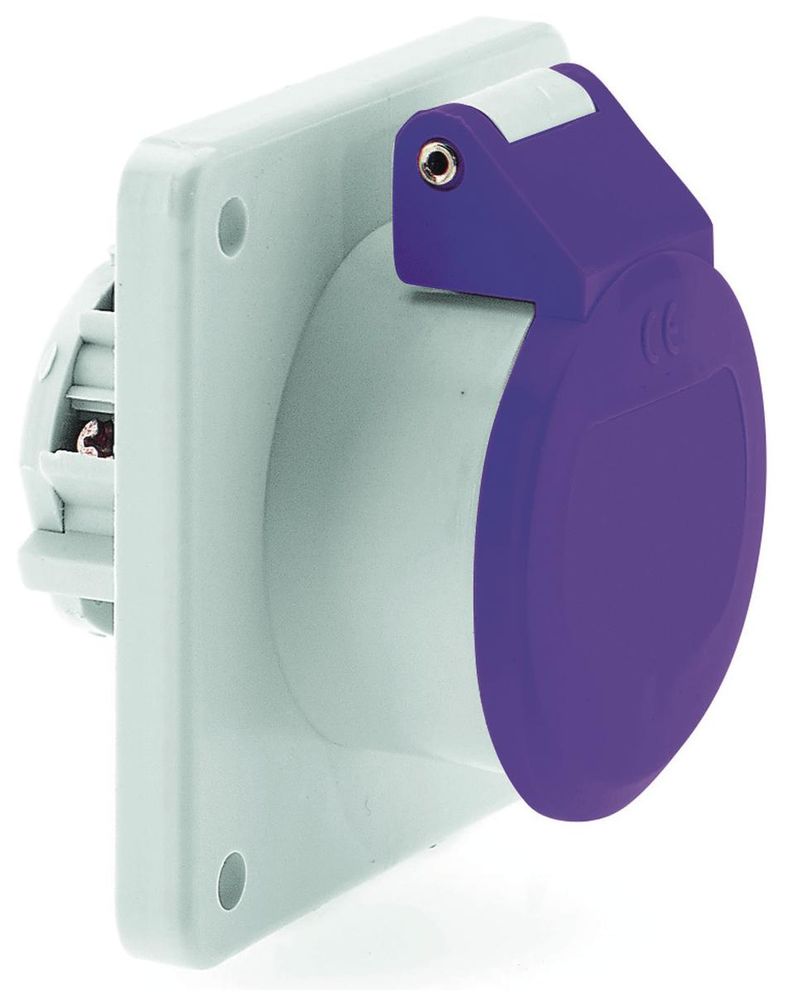

BALS 4317
This image may differ from the desired article.
114,54 EUR
( 136,30 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44
Lieske Part No.:809689
Mfg Part No: 4317
UPC/EAN: 4024941043175
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
6105,95 EUR
1297,36 EUR
2488,77 EUR
3680,18 EUR

Product information for BALS 4317:

Low voltage panel socket straight
32A 3p (3P) 24V (20 to 25V) no auxiliary lug or groove IP44
Frequency: 50/60Hz
Technical identification colour: violet RAL 4005
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: other
Device colour: housing grey RAL 7035, hinged cover violet RAL 4005
Device height: 67 mm, device width: 55 mm, device depth: 59 mm
Flange dimension vertical: 55 mm, flange dimension horizontal: 55 mm
Hole spacing vertical: 45 mm, hole spacing horizontal: 45 mm


Questions & answers

What is the delivery time of BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44?

The article BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 4317 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44 always at the best possible price. We can give you a discount of 2% on BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44 we can offer you a price of 105,95 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of BALS 4317 Kleinspannungs-Anbausteckd.GR, 32A 3P 24V no auxiliary nose od. -groove IP44 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
