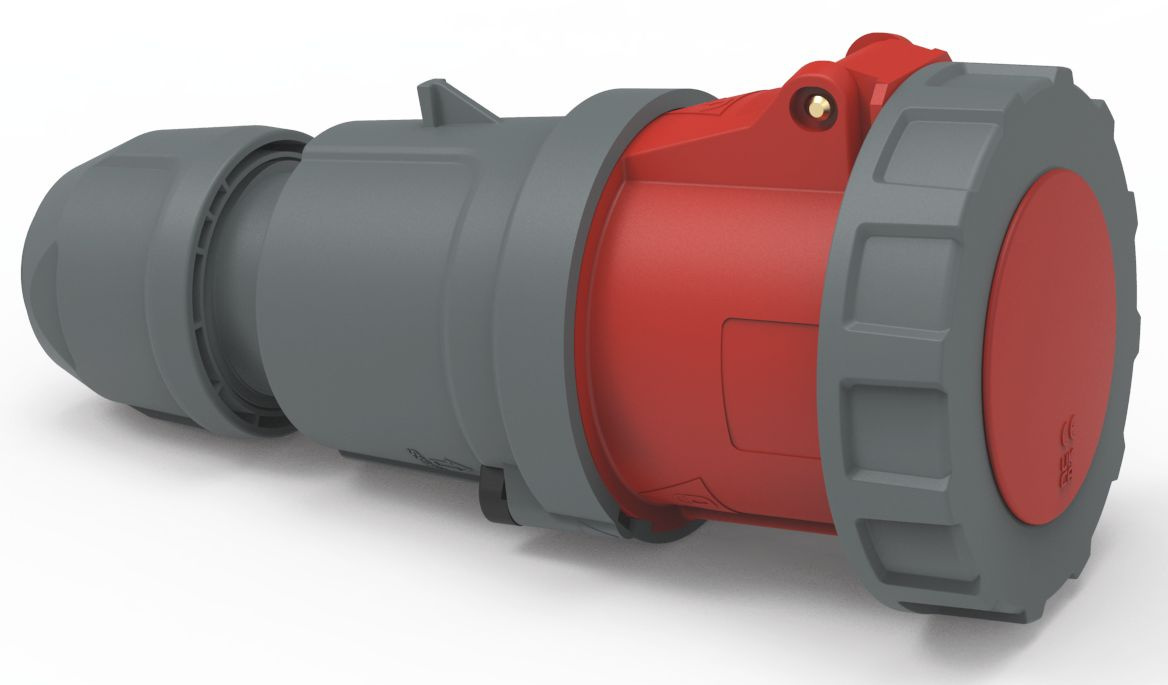

Bals 3199 coupling TE m.MULTI-GRIP cable gland 125 A 5p 400 V 6h IP67
|
909,91 EUR |
|||||||||||
|
( 1.082,79 EUR incl. VAT ) ≈ £761.59 | ≈ $1,018.19 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 734184 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3199 | ||||||||||
| UPC/EAN: | 4024941031998 | ||||||||||
| Weight: | 1.3 kg | ||||||||||
| Type: | 3199 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 3199:
125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: with cable gland
Device colour: housing cover red RAL 3000, collar red RAL 3000, hinged cover red RAL 3000, bayonet ring grey RAL 7035, cable gland grey RAL 7035
Device height: 295 mm, device width: 125 mm, device depth: 128 mm
Other technical properties: For cables with a min. diameter of 26mm to max. diameter 50mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
| General | |
| IEC-amperage | 125 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Connection system | Screwed terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Military model | |
Questions & answers
What is the delivery time of Bals 3199 coupling TE m.MULTI-GRIP cable gland 125 A 5p 400 V 6h IP67?
The article Bals 3199 coupling TE m.MULTI-GRIP cable gland 125 A 5p 400 V 6h IP67 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 3199 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 3199 coupling TE m.MULTI-GRIP cable gland 125 A 5p 400 V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 3199 coupling TE m.MULTI-GRIP cable gland 125 A 5p 400 V 6h IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Bals 3199 coupling TE m.MULTI-GRIP cable gland 125 A 5p 400 V 6h IP67 we can offer you a price of 780,25 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
