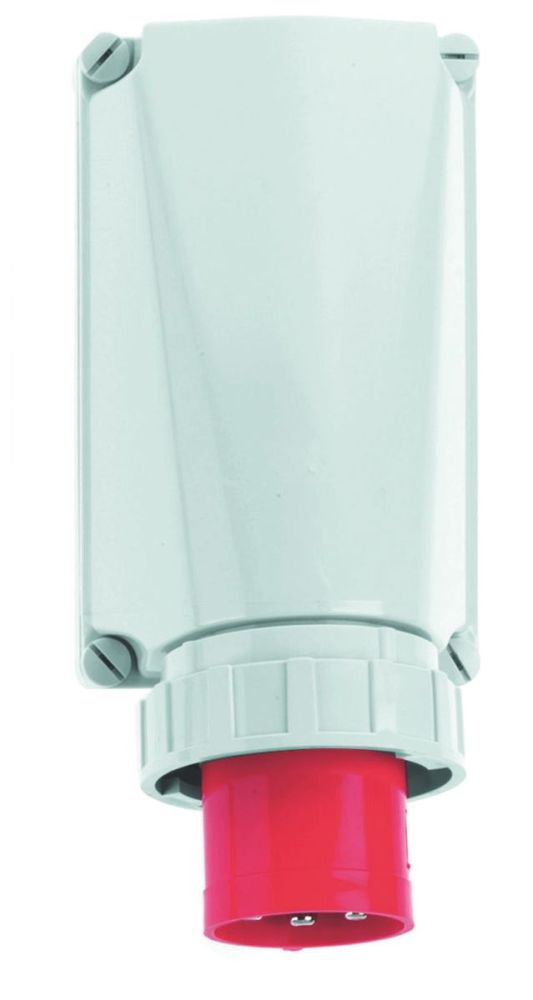

Bals 24202 wall-mounted plug GT 125 A 5p 400 V 6h IP67 housing size: 260x160
|
1.376,45 EUR |
|||||||||||
|
( 1.637,98 EUR incl. VAT ) ≈ £1,152.09 | ≈ $1,540.25 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Lieske Part No.: | 964170 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 24202 | ||||||||||
| UPC/EAN: | 4024941242028 | ||||||||||
| Weight: | 2.245 kg | ||||||||||
| Type: | 24202 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 24202:
125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 260x160 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals
Cable entry: 1xM50 from above
Device colour: collar red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 366 mm, device width: 160 mm, device depth: 163 mm
Other technical Features: The cable entry is open at the top
| General | |
| IEC-amperage | 125 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Connection system | Screwed terminal |
| Construction type | Other |
| Angle of plug | Angled |
| Material | Plastic |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 24202 wall-mounted plug GT 125 A 5p 400 V 6h IP67 housing size: 260x160?
The article Bals 24202 wall-mounted plug GT 125 A 5p 400 V 6h IP67 housing size: 260x160 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 24202 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 24202 wall-mounted plug GT 125 A 5p 400 V 6h IP67 housing size: 260x160 always at the best possible price. We can give you a discount of 2% on Bals 24202 wall-mounted plug GT 125 A 5p 400 V 6h IP67 housing size: 260x160 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Bals 24202 wall-mounted plug GT 125 A 5p 400 V 6h IP67 housing size: 260x160 we can offer you a price of 1.221,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
