BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417

Your rating:
Average rating
Rating for BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417
( 4.6 / 5 ) 7 ratings
BALS 31417

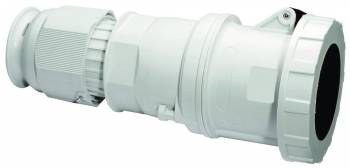

This image may differ from the desired article.
1.042,77 EUR
( 1.240,90 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417
Lieske Part No.:491416
Mfg Part No: 31417
UPC/EAN: 4024941314176
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
3980,20 EUR
6917,64 EUR
9855,07 EUR
12792,51 EUR

Product information for BALS 31417:

Coupling TE
125A 5p (3P+N+PE) 500V (277/480 - 288/500V~) 7h IP67
Frequency: 50/60Hz
Technical identification colour: black RAL 9005
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: with cable gland
Device colour: collar black RAL 9005, hinged cover black RAL 9005, bayonet ring grey RAL 7035, cable gland grey RAL 7035, housing cover black RAL 9005
Device height: 295 mm, device width: 125 mm, device depth: 128 mm
Other technical properties: For cables with a min. diameter of 26mm to max. diameter 50mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw


Questions & answers

What is the delivery time of BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417?

The article BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 31417 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417 always at the best possible price. We can give you a discount of 2% on BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417 we can offer you a price of 980,20 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of BALS 31417 clutch TE MULTI-GRIP Ve 5p 500V 125A IP67 7h 31417 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
