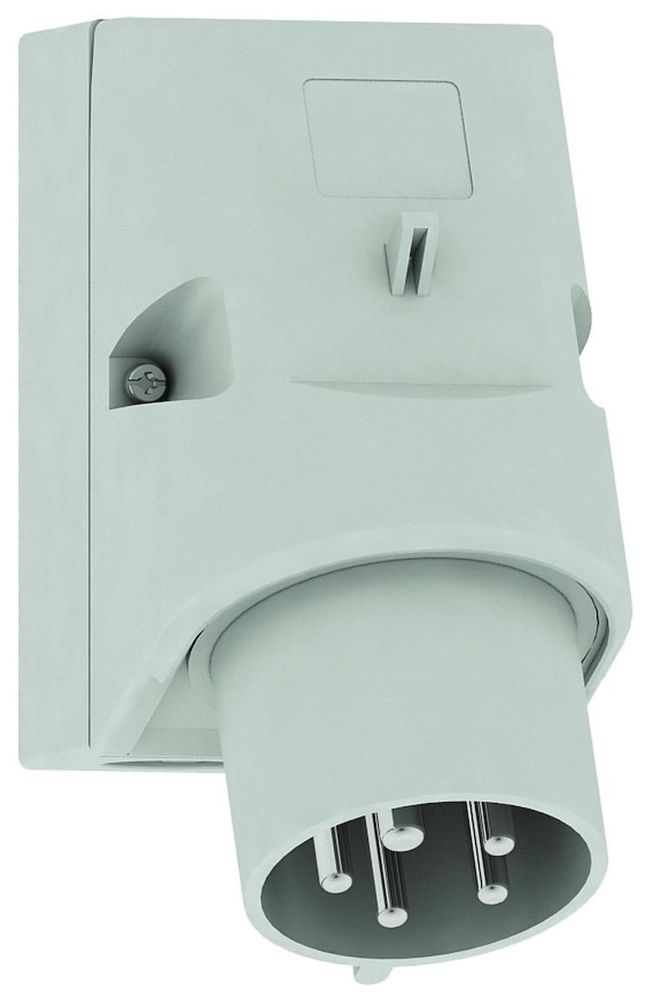

Bals 24625 wall device plug QC TE 16A 5p >50V 1h IP44 grey H/W/D:156x83x123mm
|
169,79 EUR |
|||||||||||
|
( 202,05 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 468295 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 24625 | ||||||||||
| UPC/EAN: | 4024941947558 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 24625:
16A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 156 mm, device width: 83 mm, Device depth: 123 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
Type: 24625
