BALS 2194 connector TC MULTI-GRIP verse, 125A 4p 9h 230V IP67 2194
|
875,46 EUR |
|||||||||||
|
( 1.041,80 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 745092 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2194 | ||||||||||
| UPC/EAN: | 4024941021944 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

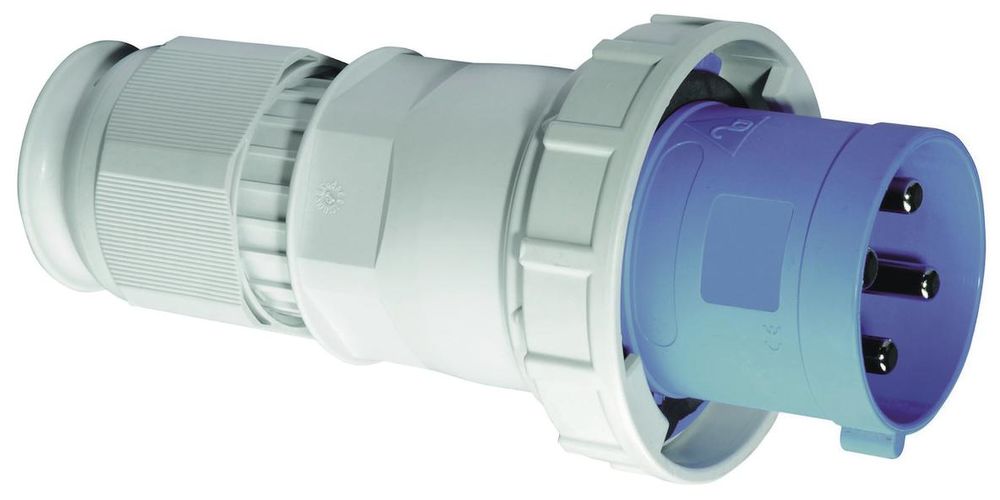

Product information for BALS 2194:
125A 4p (3P+PE) 230V (200 - 250V~) 9h IP67
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device colour: operating slide grey RAL 7035, collar blue RAL 5015, bayonet ring grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035
Device height: 273 mm, device width: 126 mm, device depth: 126 mm
Other technical properties: For cables with a min. diameter of 26mm to max. diameter 50mm, the connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
