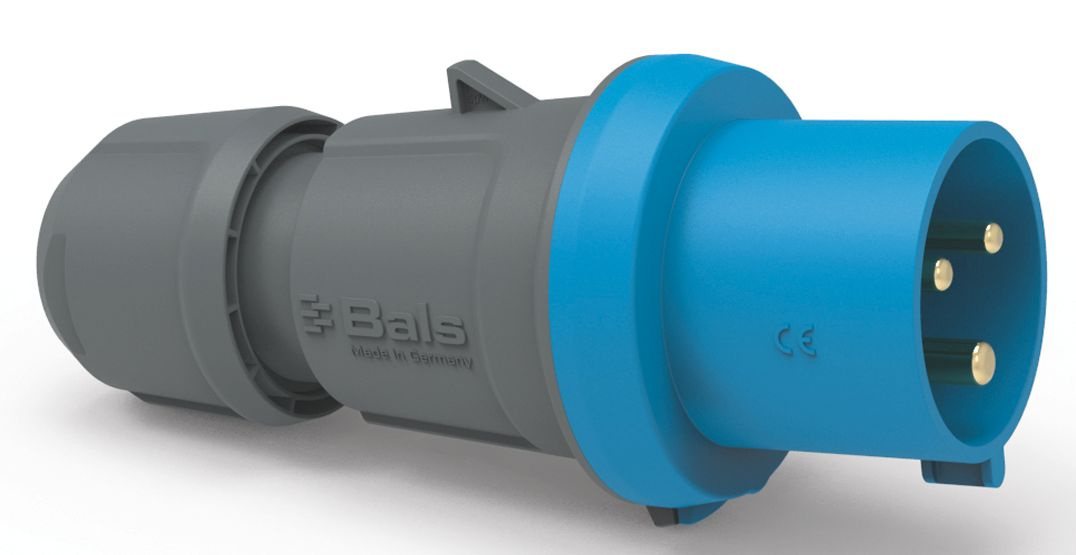

Bals 2114 plug INNOLINQ QC 32A 3-pole 230V 6h IP54 blue blank
|
84,27 EUR |
|||||||||||
|
( 100,28 EUR incl. VAT ) ≈ £70.53 | ≈ $94.30 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 1101231 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2114 | ||||||||||
| UPC/EAN: | 4024941345835 | ||||||||||
| Weight: | 0.268 kg | ||||||||||
| Type: | 2114 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 2114:
32A 3p (2P+PE) 230V (200 - 250V~) 6h IP54
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with KONTEX-ULTRA contact
Cable entry: with cable screw connection
Device colour: collar blue RAL 5015, cable screw connection dark grey RAL 7012, housing cover dark grey RAL 7012
Device height: 191 mm, device width: 80 mm, device depth: 85 mm
Halogen-free: yes
Other technical properties: this product does not contain any lead, with MULTI-GRIP cable screw connection and integrated strain relief, the connection of the housing parts is screwless and is locked in place by a snap lock. Can be opened using a screwdriver. For cables with a minimum diameter of 13mm to a maximum diameter of 29mm
| General | |
| IEC-amperage | 32 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Clock hour position | 6 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP54 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
