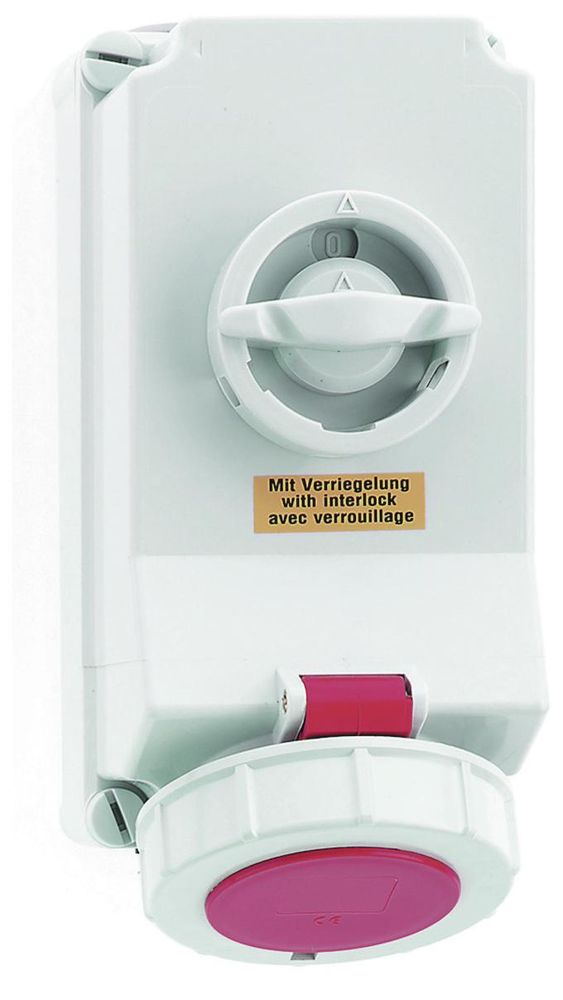

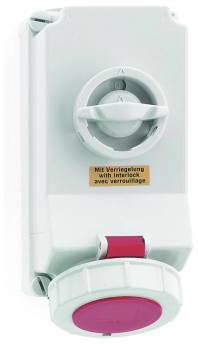

Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz

Your rating:
Average rating
Rating for Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz
( 4.5 / 5 ) 6 ratings
BALS 160178
This image may differ from the desired article.
734,88 EUR
( 874,51 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz
Lieske Part No.:313155
Mfg Part No: 160178
UPC/EAN: 4024941069656
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
4668,74 EUR
8602,60 EUR
12536,46 EUR
16470,32 EUR

Product information for BALS 160178:

Wall socket, switchable, locked
32A 4p (3P+PE) 400V (380 - 415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 225x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: without
Cable entry: 2xM25 top, 2xM25 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, switch knob grey RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top, closed at the top and closed at the bottom twice. Lockable in the 0 position for up to 3 padlocks with a shackle diameter of up to 7 mm


Questions & answers

What is the delivery time of Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz?

The article Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 160178 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz always at the best possible price. We can give you a discount of 2% on Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz we can offer you a price of 668,74 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals wall socket IP67 160178, 225x118mm 32A 4p 6h 380-415V 50/60Hz via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
