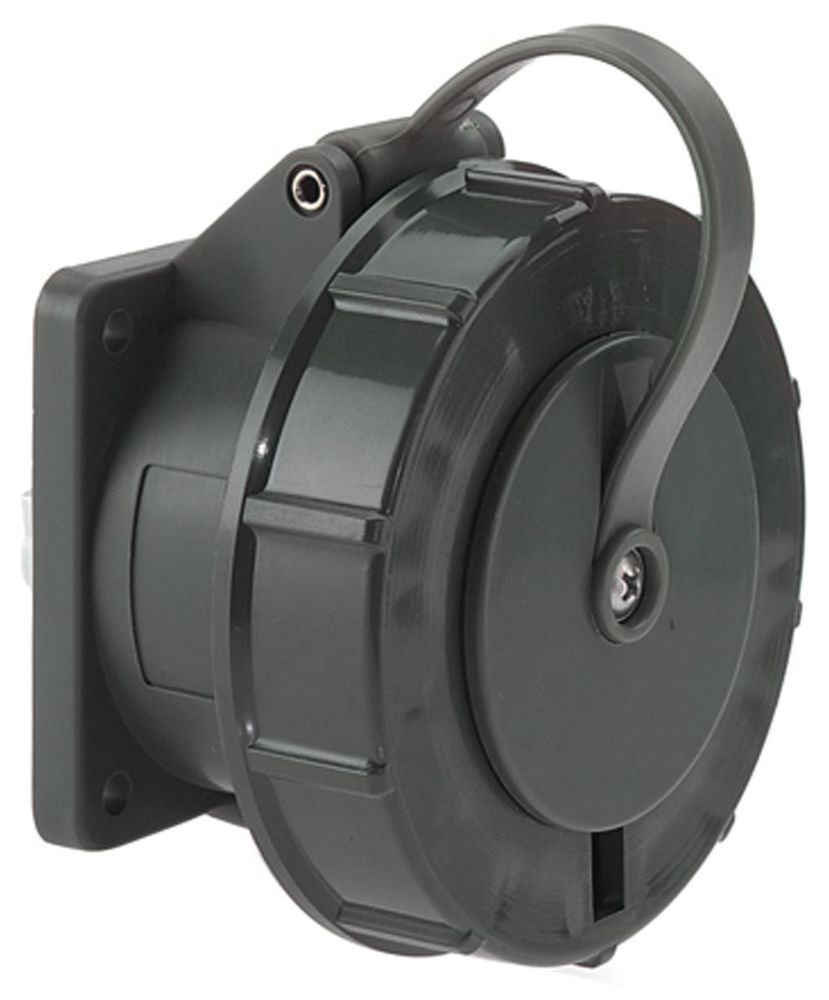

Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67
|
483,12 EUR |
|||||||||||
|
( 574,91 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 402978 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 13188 | ||||||||||
| UPC/EAN: | 4024941131889 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 13188:
63A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: over 300 up to and including 500Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 114 mm, device width: 111 mm, device depth: 139 mm
Flange dimension vertical: 107 mm, flange dimension horizontal: 100 mm
Drill hole spacing vertical: 85 mm, horizontal hole spacing: 77 mm
Other technical features: A pilot contact is present, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 AS 012, supply no.: 5935-12-321-5243
Questions & answers
What is the delivery time of Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67?
The article Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 13188 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67 always at the best possible price. We can give you a discount of 2% on Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67 we can offer you a price of 454,13 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Bals 13188 mounting socket TN straight 63A 5p >50V 2h IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
