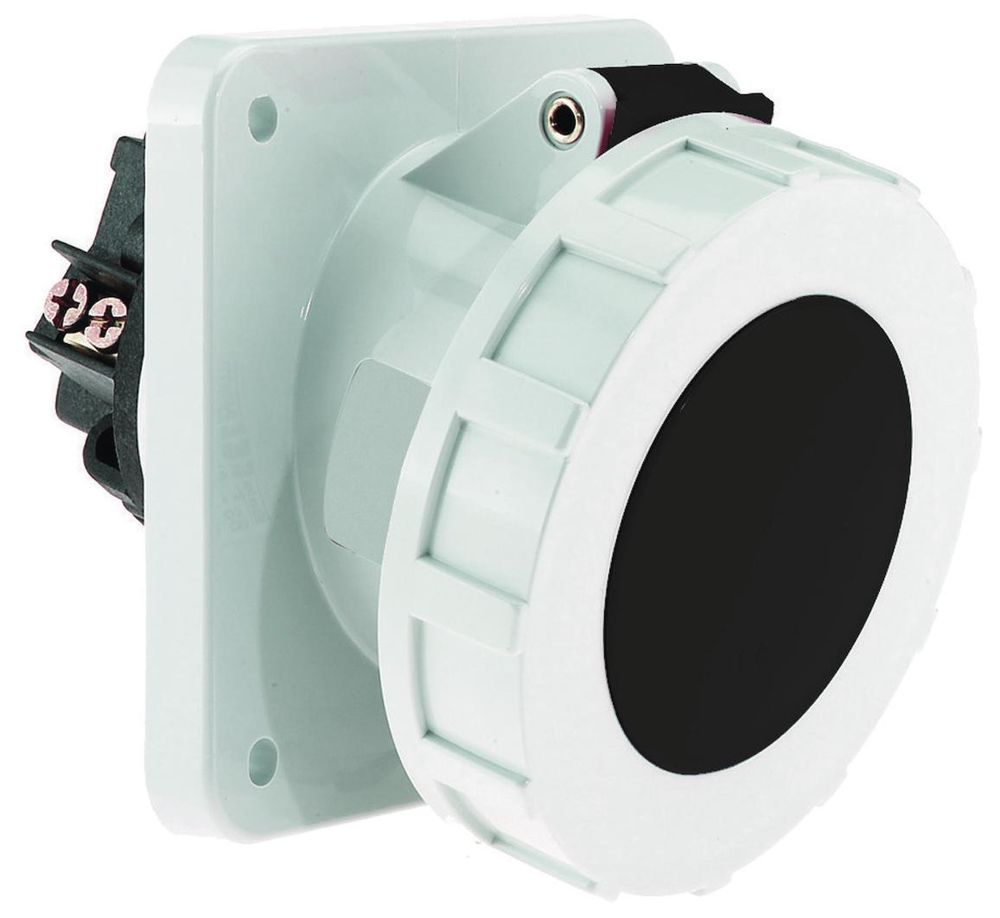

Bals 12156 panel socket TE with inclination 63A 4p 500V 7h IP67
|
361,25 EUR |
|
|
( 429,89 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 460211 |
|---|---|
| Mfg Part No: | 12156 |
| UPC/EAN: | 4024941121569 |
| Weight: | 0.12 kg |
Product information for BALS 12156:
63A 4p (3P+PE) 500V (480 - 500V~) 7h IP67
Frequency: 50/60Hz
Technical identification colour: black RAL 9005
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: hinged lid black RAL 9005, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 125 mm, device width: 114 mm, device depth: 147 mm
Flange dimension vertical: 114 mm, flange dimension horizontal: 114 mm
Hole spacing vertical: 90 mm, hole spacing horizontal: 90 mm
Other technical properties: The inclination is 15°
Type: 12156
Questions & answers
What is the delivery time of Bals 12156 panel socket TE with inclination 63A 4p 500V 7h IP67?
The article Bals 12156 panel socket TE with inclination 63A 4p 500V 7h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 12156 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 12156 panel socket TE with inclination 63A 4p 500V 7h IP67 always at the best possible price. We can give you a discount of 2% on Bals 12156 panel socket TE with inclination 63A 4p 500V 7h IP67 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
