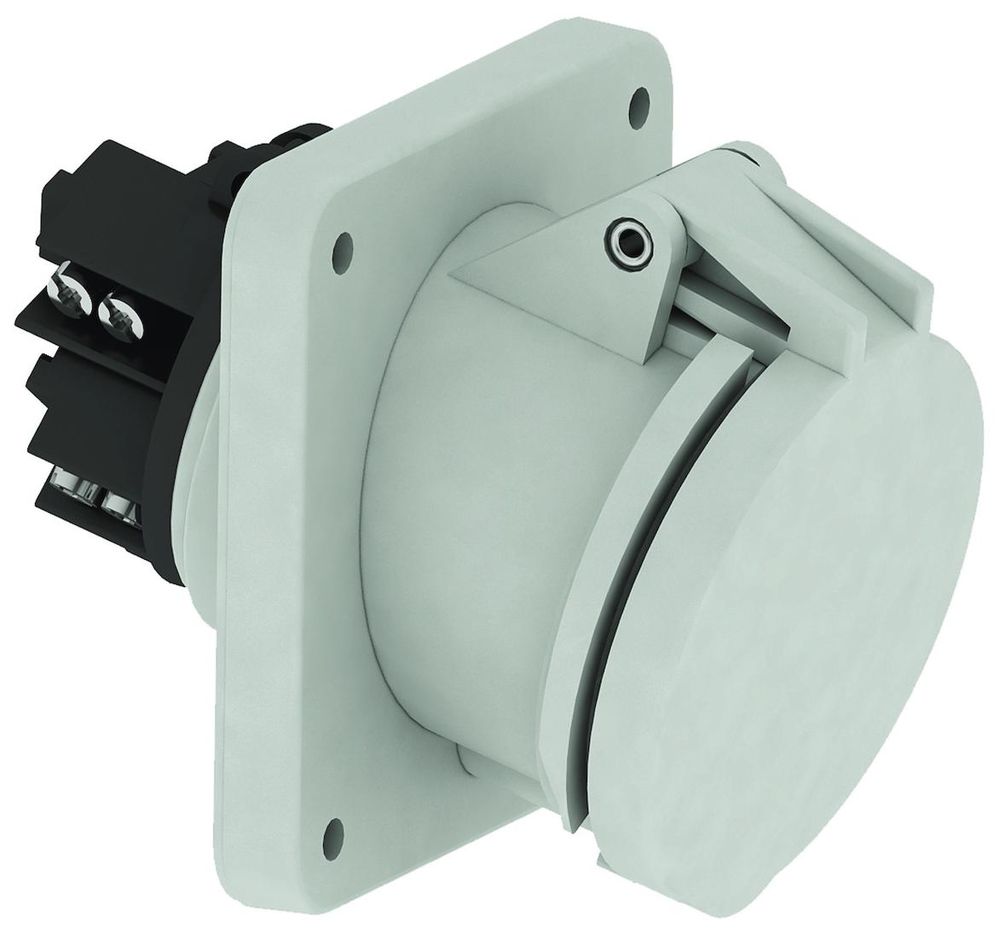

Bals 120280 Surface mounted socket inclined 63A 5P >50V 1H IP67
|
388,87 EUR |
|
|
( 462,76 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 466937 |
|---|---|
| Mfg Part No: | 120280 |
| UPC/EAN: | 4024941966627 |
| Weight: | 0.12 kg |
Product information for BALS 120280:
63A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP67
Technical identification color: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device color: hinged cover grey RAL 7035, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 125 mm, device width: 114 mm, device depth: 147 mm
Flange dimension vertical: 114 mm, flange dimension horizontal: 114 mm
Drill hole spacing vertical: 90 mm, hole spacing horizontal: 90 mm
Other technical characteristics: The inclination is 15°
Type: 120280
