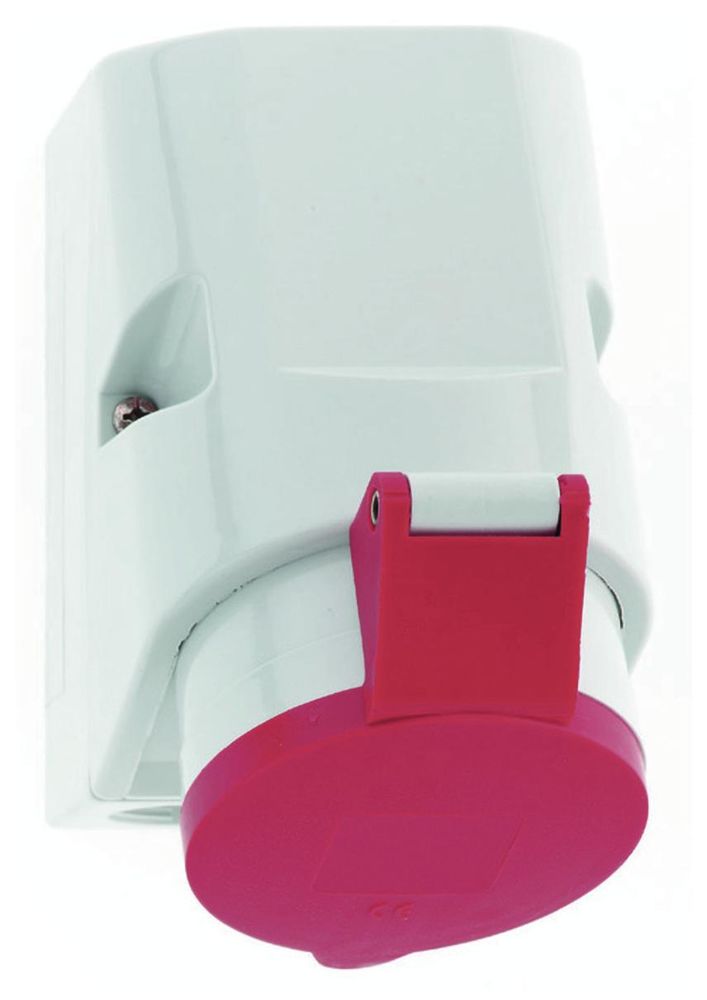

Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h
184,44 EUR |
|||||||||||
( 219,48 EUR incl. VAT ) plus delivery charges |
|||||||||||
Delivery time on requestinfo_outline | |||||||||||
Lieske Part No.: | 701593 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Mfg Part No: | 11990 | ||||||||||
UPC/EAN: | 4024941119900 | ||||||||||
Weight: | 0.12 kg | ||||||||||
Graduated prices net
|
Product information for BALS 11990:
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: hinged lid red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 157 mm, device width: 83 mm, Device depth: 136 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
Questions & answers
What is the delivery time of Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h?
The article Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 11990 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h always at the best possible price. We can give you a discount of 2% on Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h we can offer you a price of 170,61 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Bals wall outlet 50/60Hz IP44 11990, Quick-Connect TE 126x83mm 32A 5p 6h via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
