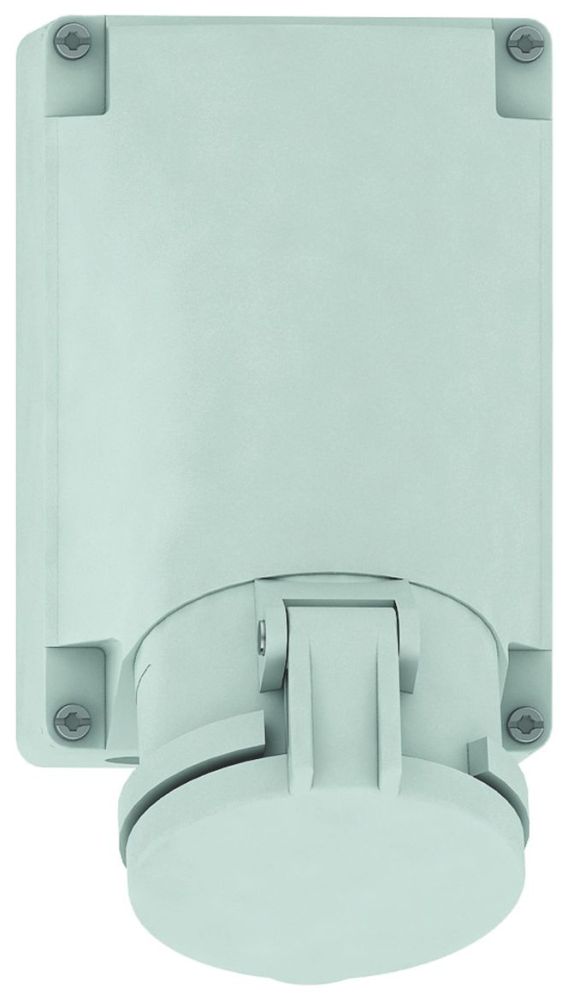

Bals 11889 wall socket 63 A 5p >50 V 1 h IP44
|
460,46 EUR |
|||||||||||
|
( 547,95 EUR incl. VAT ) ≈ £385.41 | ≈ $515.25 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 466719 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11889 | ||||||||||
| UPC/EAN: | 4024941118897 | ||||||||||
| Weight: | 0.823 kg | ||||||||||
| Type: | 11889 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 11889:
63A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification color: grey RAL 7035
Housing size: 170x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: 1xM40 top, 2xM32 bottom
Device color: hinged lid grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 226 mm, device width: 118 mm, device depth: 173 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°
| General | |
| IEC-amperage | 63 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | >50 V grey |
| Clock hour position | 1 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Contact material | CuZn |
| Mounting method | Surface mounted (plaster) |
| Surface finish contacts | Nickel-plated |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 11889 wall socket 63 A 5p >50 V 1 h IP44?
The article Bals 11889 wall socket 63 A 5p >50 V 1 h IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 11889 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 11889 wall socket 63 A 5p >50 V 1 h IP44 always at the best possible price. We can give you a discount of 2% on Bals 11889 wall socket 63 A 5p >50 V 1 h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Bals 11889 wall socket 63 A 5p >50 V 1 h IP44 we can offer you a price of 394,84 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
