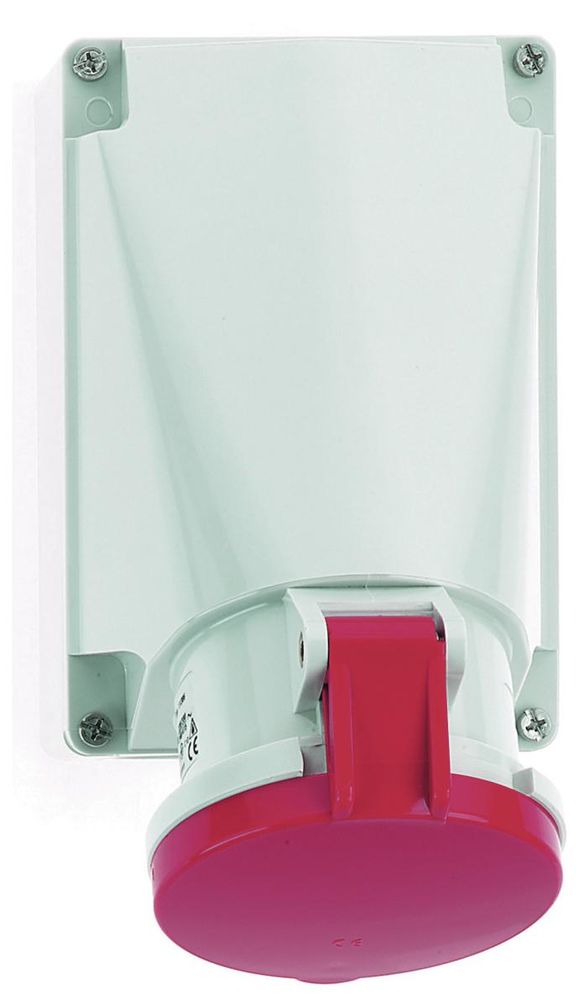

Bals 1124 wall socket GT 63A 5p 400V 6h IP44 case size: 170x118
|
343,80 EUR |
|||||||||||
|
( 409,12 EUR incl. VAT ) ≈ £292.23 | ≈ $386.09 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 610815 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1124 | ||||||||||
| UPC/EAN: | 4024941011242 | ||||||||||
| Weight: | 0.897 kg | ||||||||||
| Type: | 1124 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 1124:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 170x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: 1xM40 at the top, 2xM32 at the bottom
Device colour: hinged lid red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 226 mm, device width: 118 mm, device depth: 173 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom closed, the housing base can be rotated by 180°
| General | |
| IEC-amperage | 63 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Mounting method | Surface mounted (plaster) |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
